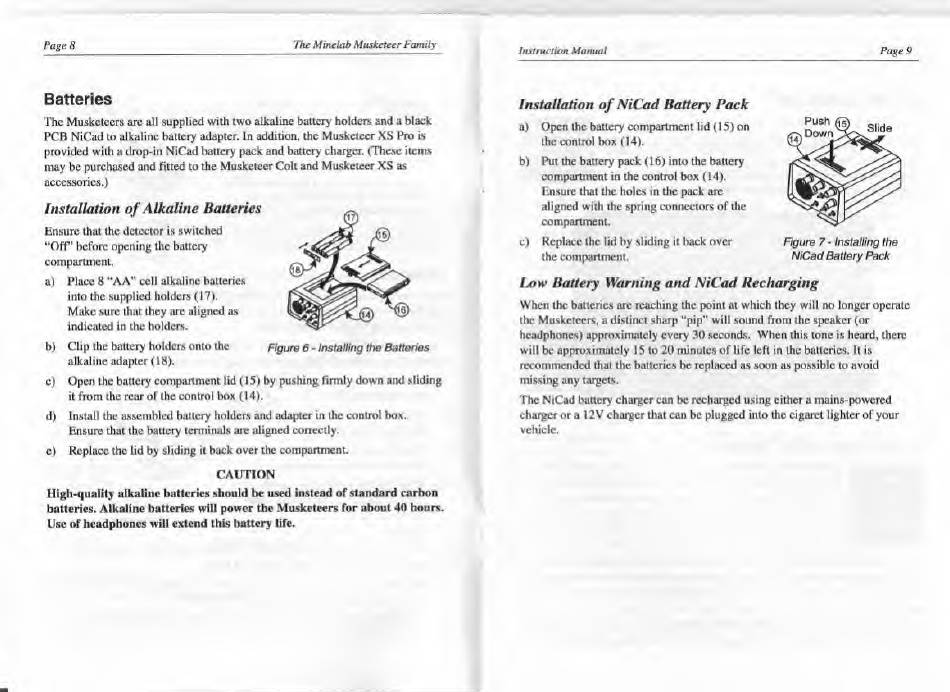

Batteries
The Musketeers are all supplied with two alkaline battery holders and a black
PCB NiCad to alkaline battery adapter. In addition, the Musketeer XS Pro is
provided with a drop-in NiCad battery pack and battery charger. (These items
may be purchased and fitted to the Musketeer Coll and Musketeer XS as
accessories.)
Installation of Alkaline Batteries
Ensure that the detector is switched
"Off" before opening the battery
compartment.
a) Place 8 "AA" cell alkaline batteries
into the supplied holders (17).
Make sure that they are aligned as
indicated in the holders.
b) Clip the battery holders onto the Figure 6 - Installing the Batteries
alkaline adapter (18).
c) Open the battery compartment lid (15) by pushing firmly down and sliding
it from the rear of the control box (14).
d) Install the assembled battery holders and adapter in the control box.
Ensure that the battery terminals arc aligned correctly.
e) Replace the lid by sliding it back over the compartment.
CAUTION
High-quality alkaline batteries should be used instead of standard carbon
batteries. Alkaline batteries will power the Musketeers for about 40 hours.
Use of headphones will extend this battery life.
Installation of NiCad Battery Pack
a) Open the battery compartment lid (15) on
the control box (14).
b) Put the battery pack (16) into the battery
compartment in the control box (14).
Ensure that the holes in the pack arc
aligned with the spring connectors of the
compartment.
c) Replace the lid by sliding it back over
the compartment.
Imw Battery Warning and NiCad Recharging
When the batteries are reaching the point at which they will no longer operate
the Musketeers, a distinct sharp "pip" will sound from the speaker (or
headphones) approximately every 30 seconds. When this tone is heard, there
will be approximately 15 to 20 minutes of life left in the batteries. It is
recommended that the batteries be replaced as soon as possible to avoid
missing any targets.
The NiCad battery charger can be recharged using cither a mains-powered
charger or a 12V charger that can be plugged into the cigarct lighter of your
vehicle.
Figure 7 - Installing the
NiCad Battery Pack
