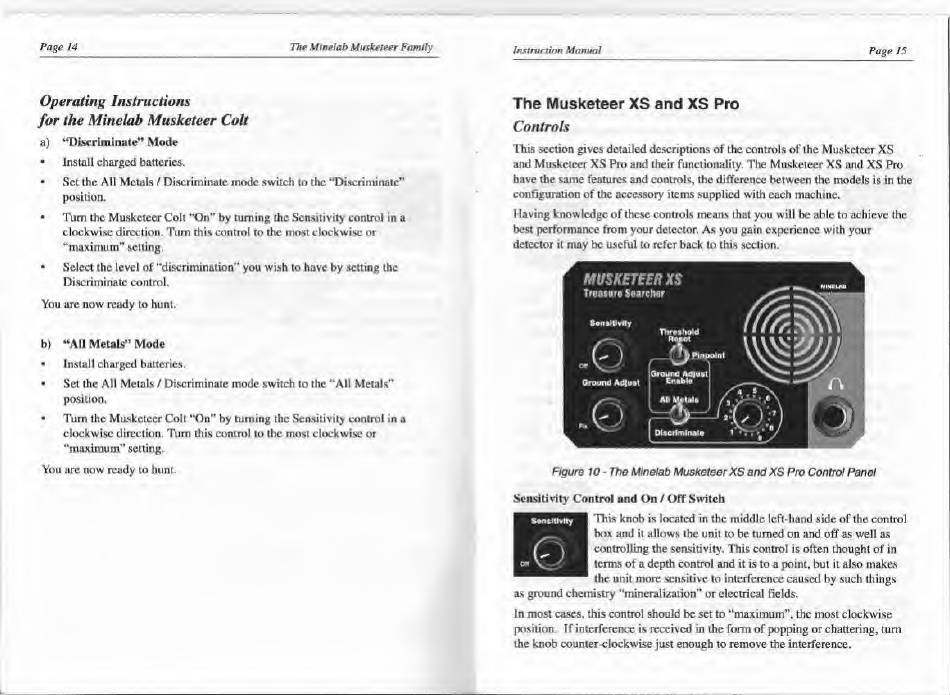

Page 14 The Minelab Musketeer Family
Instruction Manual
Page 15
Operating Instructions
for the Minelab Musketeer Colt
a) "Discriminate" Mode
• Install charged batteries.
• Set the All Metals / Discriminate mode switch to the "Discriminate"
position.
• Turn the Musketeer Colt "On" by turning the Sensitivity control in a
clockwise direction. Turn this control to the most clockwise or
"maximum" setting.
• Select the level of "discrimination" you wish to have by setting the
Discriminate control.
You arc now ready to hunt.
b) "All Metals" Mode
• Install charged batteries.
• Set the All Metals / Discriminate mode switch to the "All Metals"
position.
• Turn the Musketeer Colt "On" by turning the Sensitivity control in a
clockwise direction. Turn this control to the most clockwise or
"maximum" setting.
You arc now ready to hunt.
The Musketeer XS and XS Pro
Controls
This section gives detailed descriptions of the controls of the Musketeer XS
and Musketeer XS Pro and their functionality. The Musketeer XS and XS Pro
have the same features and controls, the difference between the models is in the
configuration of the accessory items supplied with each machine.
Having knowledge of these controls means that you will be able to achieve the
best performance from your detector. As you gain experience with your
detector it may be useful to refer back to this section.
Figure 10 - The Minelab Musketeer XS and XS Pro Control Panel
Sensitivity Control and On / Off Switch
This knob is located in the middle left-hand side of the control
box and it allows the unit to be turned on and off as well as
controlling the sensitivity. This control is often thought of in
terms of a depth control and it is to a point, but it also makes
the unit more sensitive to interference caused by such things
as ground chemistry "mineralization" or electrical fields.
SwttMty
©
In most cases, this control should be set to "maximum", the most clockwise
position. If interference is received in the form of popping or chattering, turn
the knob counter-clockwise just enough to remove the interference.
