DSL-300G ADSL Ethernet Modem User's Guide

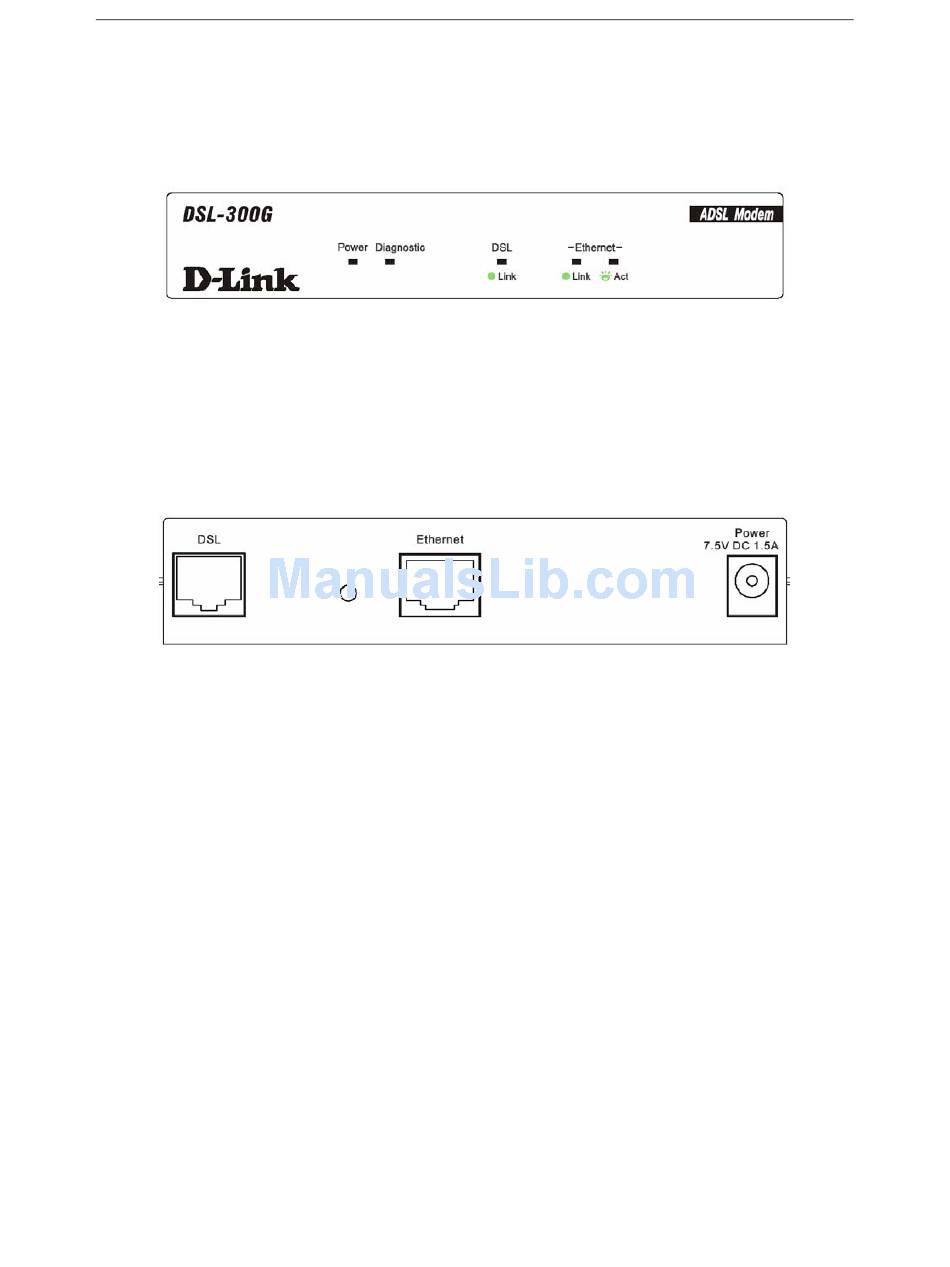

Front Panel

Place the Modem in a location that allows a view of the LED indicators on the front panel.
Front Panel

Rear Panel

All cable connections to the Modem are made at the rear panel. The power switch and factory reset button is
located here as well.
Rear Panel
2
