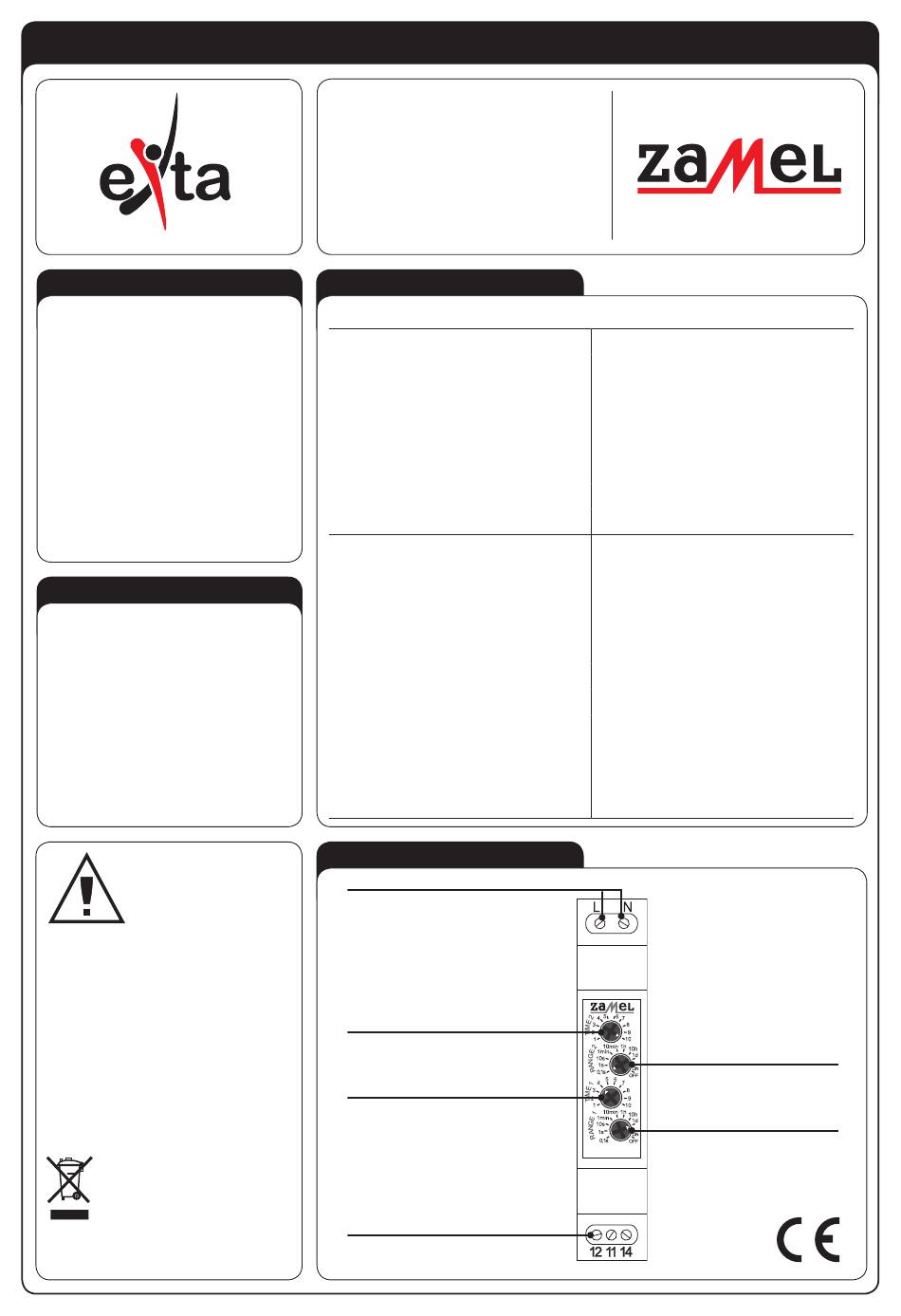

TIME RELAY PCM-11

DESCRIPTION

PCM-11 is a multi-functional time
relay for timer-based automatic control.
The product can cyclically switch the
wired system on for a preset time t1 and
off for a preset time t2. The product can
also switch the wired system on and off
with a preset delay and generate pulses
of specific duration. Key benefits include
a very wide range of time settings, and
the product can be switched on or off
continuously. The operating mode can
be switched to a different one before it
ends.

FEATURES

● Independent switch on and off time
settings.
● A wide time setting range: from 0.1 s
to 10 days.
● Can generate pulse of specific dura-
tion.
● Continuous on/off functions.
● Relay output: one 16 A max. switch-
able contact.
● Single-module housing.
● DIN-Rail mountable.
Connect this product to a
single-phase
power
according to applicable electri-
cal and safety standards and
regulations. See this Manual
for the wiring instructions. In-
CAUTION
stallation, wiring and adjust-
ment/setting shall only be done by qualified
electricians who have read and understood this
User Manual and the functions of the product.
Do not open or otherwise disassemble the prod-
uct housing; otherwise the product warranty will
be void and an electrocution hazard may occur.
Prior to installing and wiring this product, make
sure that the wiring to be connected is not live.
The conditions and methods of transport, stor-
age and operation of this product may affect its
performance. Do not install the product if any of
its components are missing, the product is dam-
aged or deformed in any way. If any malfunctions
are found, consult the manufacturer.
Do not dispose of this device with other
waste! In order to avoid harmful effects
on the environment and human health,
the used device should be stored in
designated areas. For this purpose, you
can dispose of household waste free of
charge and in any quantity to a collection
point set up, as well as to the shop when
you buy new equipment.
ZAMEL sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 32 210 46 65, Fax +48 32 210 80 04
www.zamel.com, e-mail: export@zamel.pl

TECHNICAL DATA

Time measurement accuracy: ± 3 s / 24h max. at 25 ºC

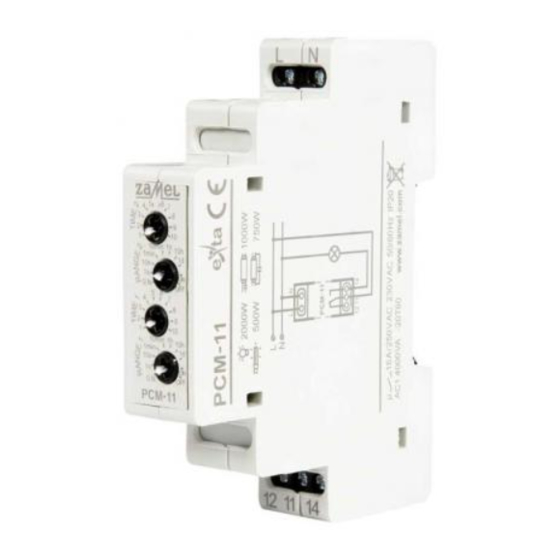

APPEARANCE

system
Power input terminals
Stepless time t2 setting
Stepless time t1 setting
Relay output terminals
(12, 11, 14)
PCM-11
Power input terminals: L; N
Rated supply voltage: 230 V AC
Supply voltage tolerance: -15 ÷ +10 %
Rated mains frequency: 50 / 60 Hz
Rated current load: 10 mA
Time t setting range: 0.1 s ÷ 10 days (in increments or stepless)
Relay contact ratings: 1NO/NC-16 A/250 V AC1 4000 VA
Wiring terminals: 5
Wiring size: 0.2 ÷ 2.50 mm²
Operating temperature: -10 ÷ +55 ºC
Installation orientation: any
Housing mounting: DIN-Rail
Housing protection rating: IP20
Overvoltage category: II
Pollution class: 2
Surge voltage: 2 kV
Dimensions: single module (17.5 mm) 90x17.5x66 mm
Weight: 0.076 kg
PCM - 11
USER MANUAL
Time t2 range selection
Time t1 range selection
plik: pcm-11_inst_ext_gb | modyfikacja: 24.09.2019
