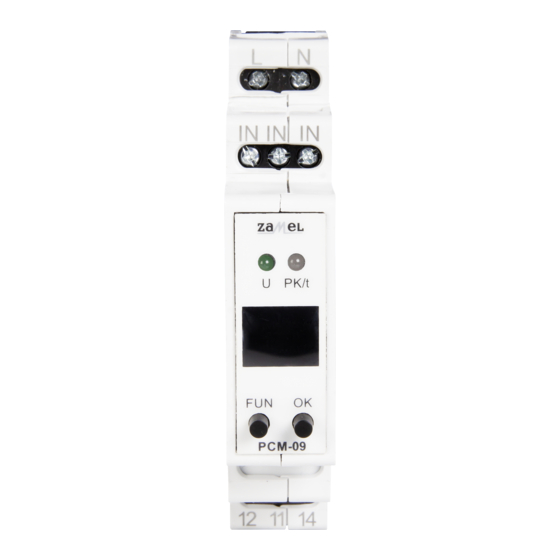

TIME RELAY PCM-09
DESCRIPTION
PCM-09 is a multi-functional time re-
lay for timer-based automatic control. The
time relay features 26 independent oper-
ating modes, each triggered with supply
voltage or external trigger input (from L or
N wire). Key benefits include a very wide
range of time settings, and the product
can be switched on or off continuously.
The operating mode can be switched to a
different one before it ends.
FEATURES
● 26 operating modes (triggered exter-
nally or via the line voltage input).
● Double 7-segment LED display for
easy programming and status read-
outs.
● High time measurement accuracy
● Three separately programmable time
settings.
● Continuous on/off functions.
● Relay output: one 16 A max. switch-
able contact.
● DIN-Rail mountable.
INSTALLATION
1. Isolate from power the wiring system
to be connected with this product with
its circuit breaker, overcurrent device
or disconnector, as applicable.
2. Use a suitable tester to verify that the
isolated power input wiring is not live.
3. Install the PCM-09 on a DIN-Rail in
the respective switchboard.
4. Connect the wiring to the terminals,
see the applicable wiring connection
diagram.
5. Turn on the power of the connected
wiring system.
Connect this product to a single-phase
power system according to applicable
electrical and safety standards and
regulations. See this Manual for the
CAUTION
wiring instructions. Installation, wiring
and adjustment/setting shall only be done by quali-
fied electricians who have read and understood this
User Manual and the functions of the product. Do not
open or otherwise disassemble the product housing;
otherwise the product warranty will be void and an
electrocution hazard may occur. Prior to installing and
wiring this product, make sure that the wiring to be
connected is not live. The conditions and methods of
transport, storage and operation of this product may
affect its performance. Do not install the product if any
of its components are missing, the product is dam-
aged or deformed in any way. If any malfunctions are
found, consult the manufacturer.
ZAMEL sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamel.com, e-mail: export@zamel.pl
TECHNICAL DATA
External trigger input terminals IN, IN, IN (trigger input from L or N wire)
Works with backlit control switches NONE
Supply voltage ON LED indicator: green LED
Time relay status / time programming mode LED indicator: multi-colour LED
Time measurement accuracy: ± 3 s / 24h max. at 25 ºC
Housing protection rating: IP20

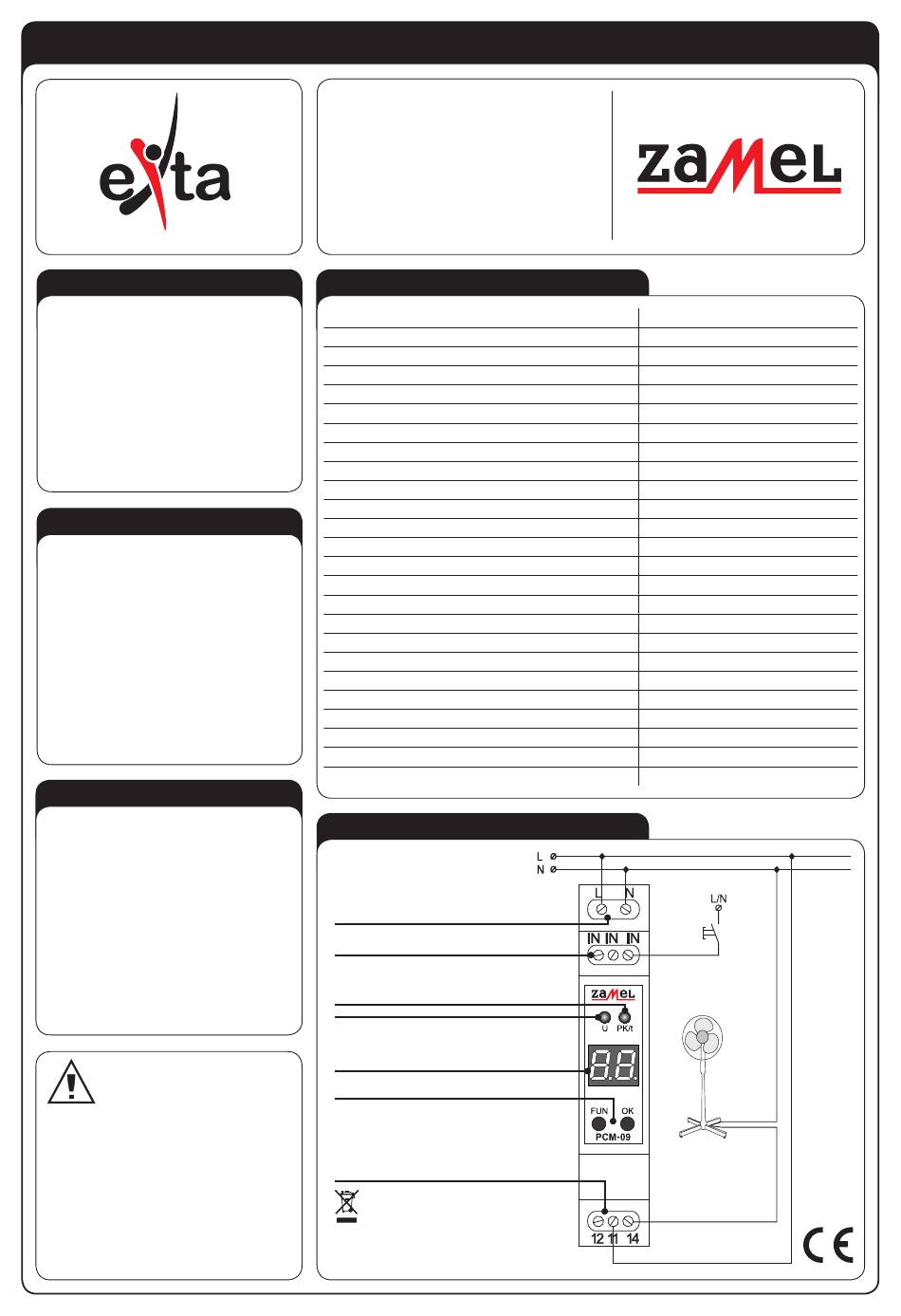

APPEARANCE / CONNECTION
Power input terminals
External trigger input terminals
Time relay status / time programming
mode LED indicator
Supply voltage ON LED indicator
7-segment LED display
Control buttons
Relay output terminals
(12; 11; 14)
Do not dispose of this device with other
waste! In order to avoid harmful effects on
the environment and human health, the used
device should be stored in designated areas. For this
purpose, you can dispose of household waste free of
charge and in any quantity to a collection point set up,
as well as to the shop when you buy new equipment.
Power input terminals: L; N
Rated supply voltage: 230 V AC
Supply voltage tolerance: -15 to +10 %
Rated mains frequency: 50 / 60 Hz
Power rating: 0.4 W
Operating modes: 26
LED display: double, 7-segment, red
Time setting resolution: 0.1 s (99h 59m 59.9s)
Relay contact ratings: 1NO/NC-16 A/250 V AC1 4000 VA
Wiring terminals: 8
Wiring size: 0.2 ÷ 2.50 mm²
Operating temperature: -20 ÷ +60 ºC
Installation orientation: any
Housing mounting: DIN-Rail
Overvoltage category: II
Pollution class: 2
Surge voltage: 2 kV
Dimensions single module 90x17.5x66 mm
Weight: 0.080 kg
USER MANUAL
plik: pcm-09_inst_ext_gb | modyfikacja: 24.09.2019
