6.2 Instrument interface

The RBR standard instruments provide an internal USB-C port and, depending on the end-cap type, an external
MCBH-6-MP connector.
.

Refer to Opening and closing the instrument
Refer to Physical specifications
.

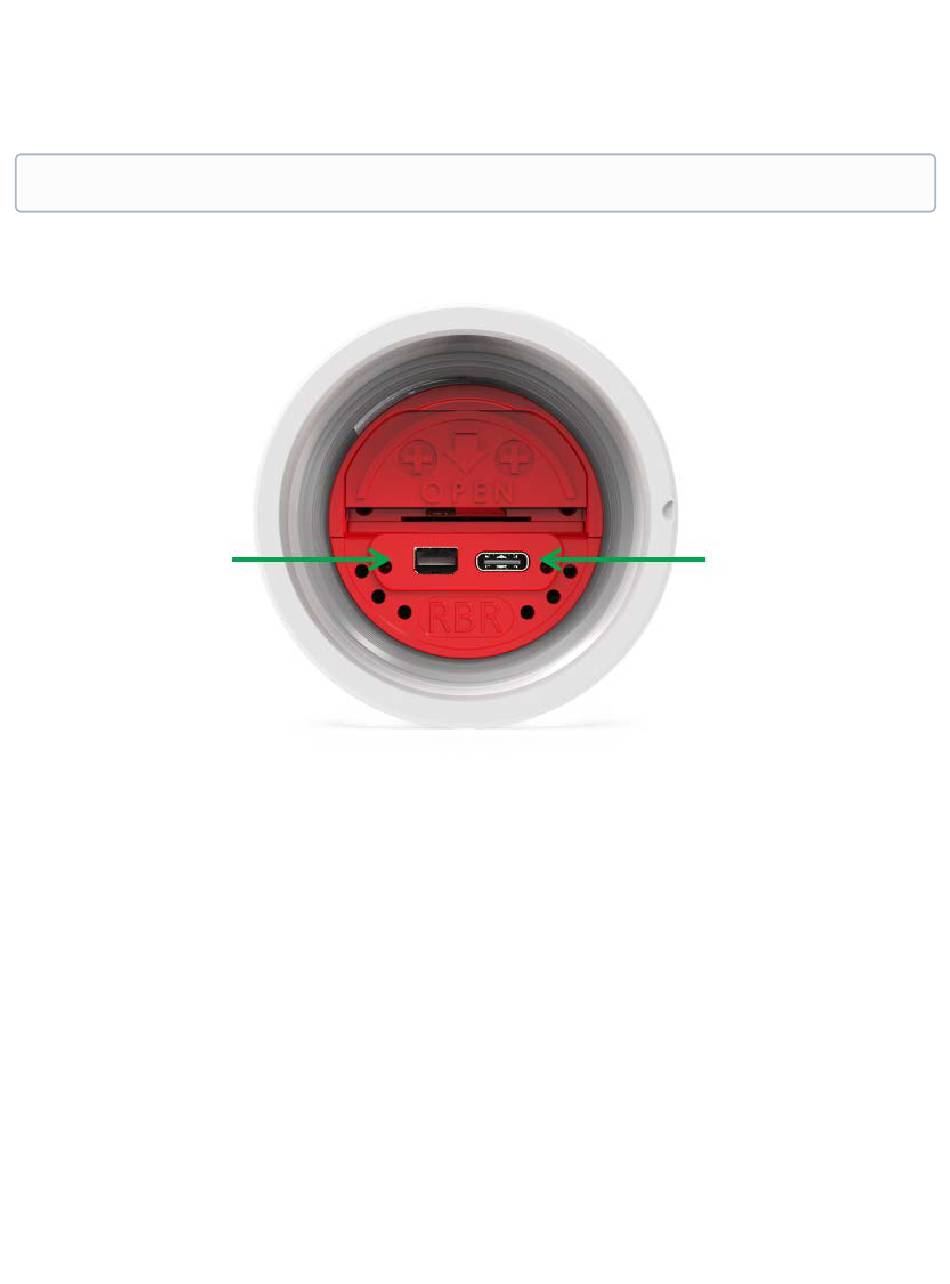

Mini-display port
USB-C connection
Remove the battery end-cap to access the USB-C port located inside the instrument body.
A USB-C desktop cable is supplied in the instrument support kit. Use this cable to download data from the instrument
to your computer.
Mini-display port
The mini-display port is located next to the USB-C port. This is the port to use for the umbilical cable from the
connectorised end-cap.
RBR#0015699revB
for details on accessing connection ports.
for the external MCBH-6-MP connector pinout diagram.
USB-C port
