6 Hardware
6.1 Opening and closing the instrument
Remember to keep the O-ring clean and avoid scratching the O-ring mating surfaces. Carefully inspect the O-
ring before deploying the instrument.

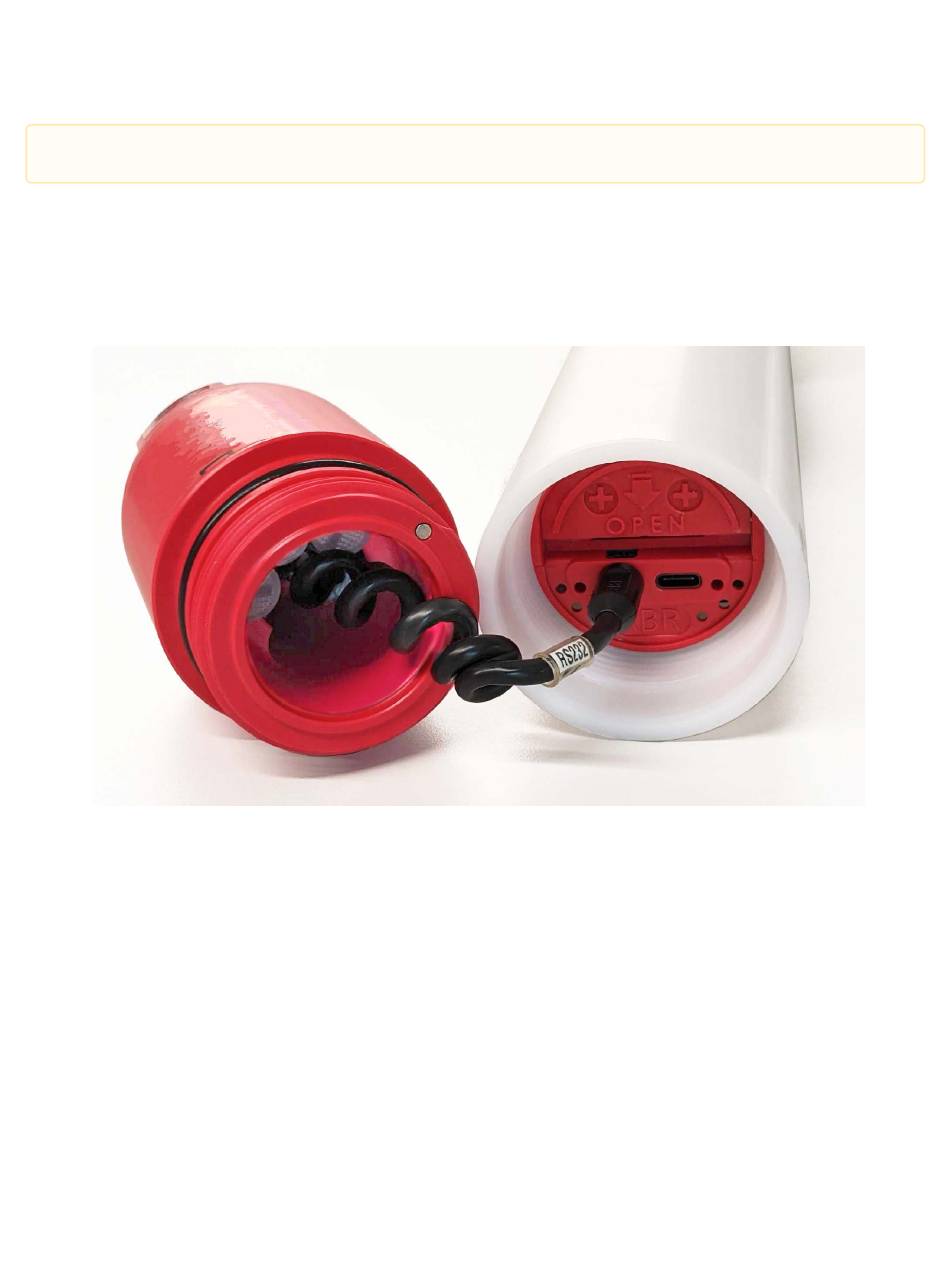

Opening the instrument
1.
Twist the battery end-cap counterclockwise.
2.
Once fully unscrewed, pull the end-cap away from the housing.
3.
3.
Unplug the umbilical cable.
Closing the instrument
1.
Plug the mini-display port connector into the instrument as shown.
2.
Twist the end-cap counterclockwise two full rotations to unwind the umbilical cable.
3.
Twist the end-cap clockwise back on the instrument until aligned with PAUSE.
RBR#0015699revB
3
RBRconcerto
C.T.D | uv, open
16
