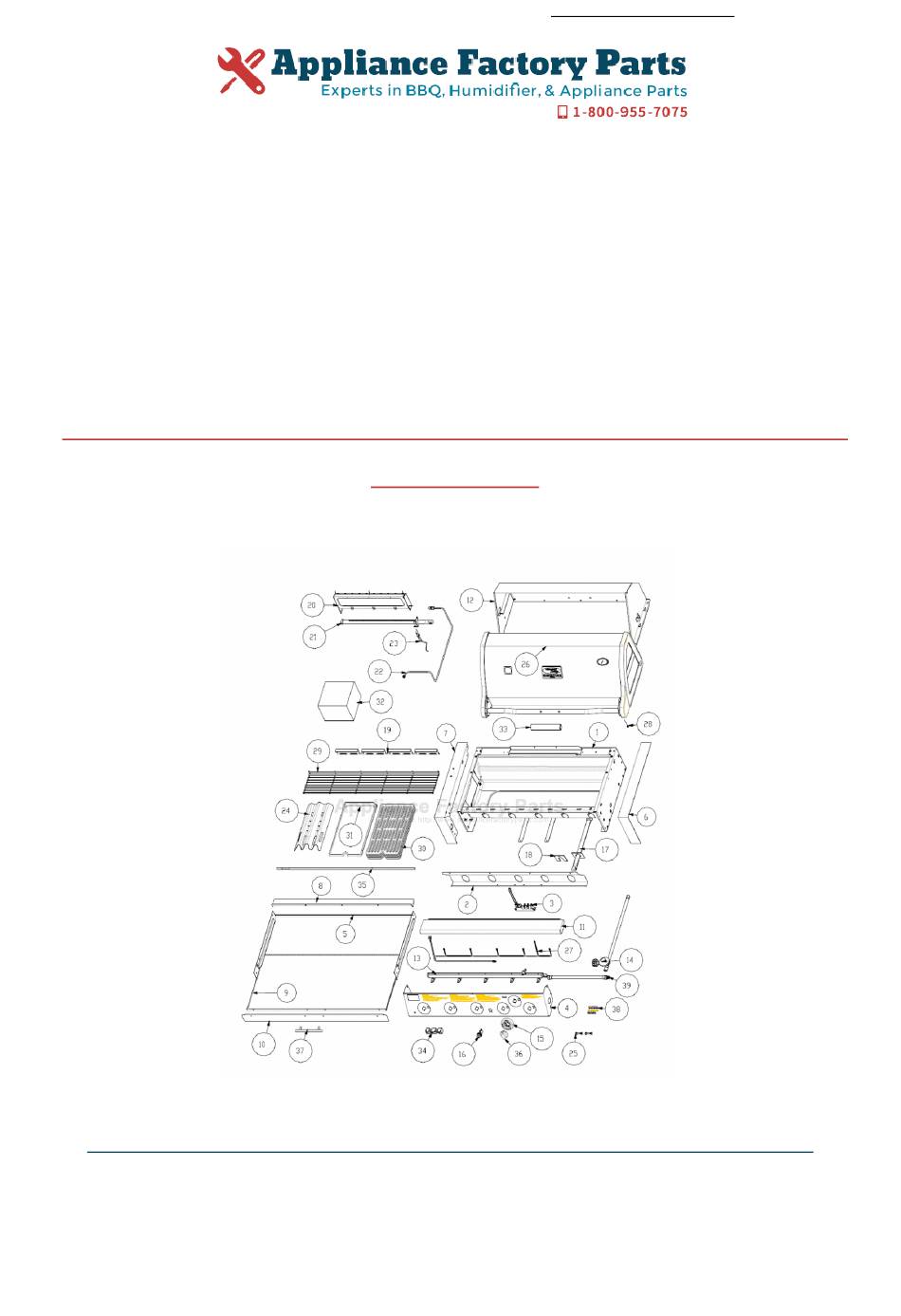

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Vermont Castings VCS3505B1 Owner's Manual Shop genuine replacement parts for Vermont Castings VCS3505B1 Find Your Vermont Castings Grill Parts - Select From 273 Models -------- Manual continues below --------...
- Page 2 VCS3505BI/VCS5005BI ASSEMBLY PROCEDURES Tools Required: Knife or Scissors, Philips or Robertson Screwdriver: Step 1: Unpack carton. * MODEL VCS5005BI Fig- 1 Use the knife or scissors to cut the strapping on the package, and then lift off the cardboard cap. Remove the cardboard sleeve by lifting it straight over the top of the barbecue.
- Page 3 VCS3505BI/VCS5005BI ASSEMBLY ______________________________________________________ VCS3505BI/VCS5005BI FRAMING DIMENSIONS Fig- 2 ALL DIMENSIONS ARE IN INCHES CLEARANCES Combustible Clearances Non-Combustible Clearances With ZC Insulated Jacket Reference VCS3500BI VCS5005BI Reference VCS3500BI VCS5005BI 23 ¾” 23 ¾” 23 ¾" 23 ¾" 4" 4" 3" 3" 2"...
- Page 4 VCS3505BI/VCS5005BI ASSEMBLY ______________________________________________________ Step 2: Assemble Fascia Brackets: Required: Main Grill unit, Left Fascia Bracket, Right Fascia Bracket, (4) # 10 x 1/2” Bolts, (4) # 10 Lock Nuts (in provided hardware bag). Tilt the front of the grill unit up 2 to 3 inches with a block of wood of other similar item. Carefully remove the protective plastic from the 2 fascia brackets, and the rear panel.
- Page 5 VCS3505BI/VCS5005BI ASSEMBLY ______________________________________________________ Step 4: Assemble Grease Tray Front and Handle: Required: Grease Tray Front, Handle and Screws, (2) # 10 Bolts, (2) # 10 Nuts Remove the grease tray from the front of the unit (Below the control console). Remove the protective plastic from the front panel and attach to the front lip of the grease tray with (2) bolts and nuts.
- Page 6 VCS3505BI/VCS5005BI ASSEMBLY ______________________________________________________ Step 6: Install Sear Plates, Cooking Grates, Warming Rack, and Knobs: Required: (3) (5*) Sear Plates, (2) (4*) Cooking Grates, (1) Warming Rack, (4) (6*) Knobs: Place the sear plates into the barbecue, ensuring the edge with the finger hole faces the front. Position the cooking grates in the base unit with the finger holes to the front.
- Page 7 410 Admiral Blvd. * Mississauga, Ontario * Canada L5T 2N6 phone: 1-800-227-8683 fax: 905-565-4690 www.myownbbq.com www.vermontcastings.com 50003225 03/2005 Rev. 1 Eng.
