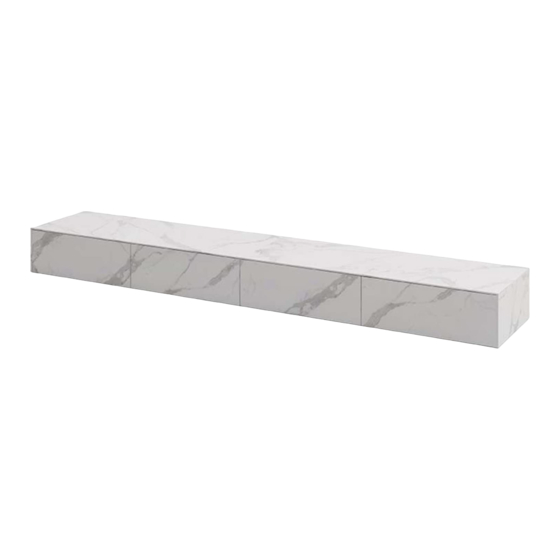

POVISON TS1050WS Assembly Instructions

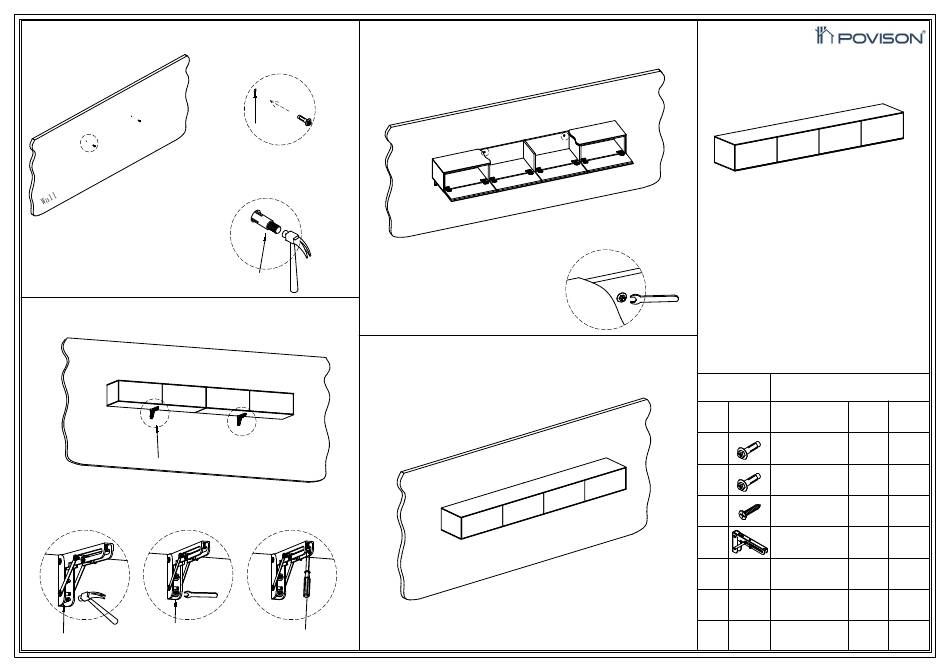

1.Place the cabinet at a suitable height and mark the holes with a
marker.
Drill with electric
drill.（Drill to a
depth of 70mm using
a12mm diameter drill ）
3.Put the support bracket at the corresponding position at the
bottom of the TV cabinet, and mark the hole position with a marker.
Wall
Drill with electric drill.
(1)
(2)
Place the nut on the
Push the expansion screw
expansion screw stud and
into the wall with a
screw it.
hammer.
B expansion screws
（Drill to a depth of 60mm using a 10mm diameter drill ）
2.Connect and hang cabinets.(Please note that this step requires
one person on each side to support the two cabinets until the
Insert the expansion
(1)
brackets are installed.)
screw plug into the hole.
(2)
Use a hammer to drive the expansion
screw into the rubber stopper.
A expansion screws
4.Complete the installation
(3)
Tighten the self-tapping
screw with a screwdriver.
Self-tapping screws
Assembly instructions
The number of people needed for installation：2
①
(1) Place the nut on the expansion screw
stud and screw it.
②
③
Parts list
Serial
number
A
B
C
D
E
F
G
TS1050WS/BS Installation
Please read the manual carefully before
installing this product. And strictly
follow the installation process
Please take good care of this manual
for your next installation
Note: Before installation, screw all
the screws to 1/2 of the length of
the installation. After all screws
are half screwed in, tighten them all
together.
On a red ribbon are furniture
installation accessories
Quantity
Spare
Shape Name required for
quantity
installation
A expansion screws
2 0
(M8*70mm)
B expansion screws
4 0
(M6*60mm)
Self-tapping
4 0
screws
Support Frame
2 0
of TV cabine
TotaL 1 page; page 1
