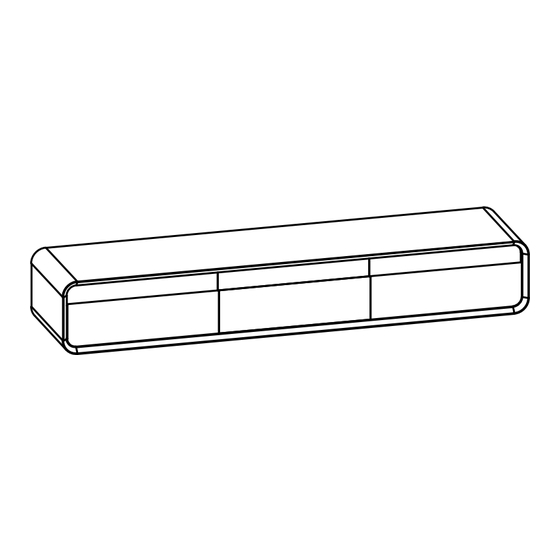

POVISON TS8197 Assembly Instructions

1. Pull the drawer apart, place the corresponding hole in the glass panel at the recess of the drawer panel, and screw it
into the Phillips screw.
2.Place the wall-mounted backboard at a suitable position on
the wall, mark the holes to be installed on the wall and the
backboard with a marker, and then drill holes on the wall
with an electric drill.
(Drill to a depth of 60mm using
a 6mm diameter drill bit)
3.After the drilling is completed, insert the expansion
plug into the wall hole, place the wall-mounted backboard,
and insert the self-tapping screw into the position where
the wall hole connects to the backboard hole. Tighten the
screws with a screwdriver.
Wall mount backplate
Wall hole
Expansion screw
plug for wall
installation
Philips screw
(M4*15mm)
Expansion screw
plug for wall
installation
Wall mount
backplate
Self-tapping
screw（M4*50mm）
Hole in the wall
mount backplate
(1) (2)
Self-tapping screw

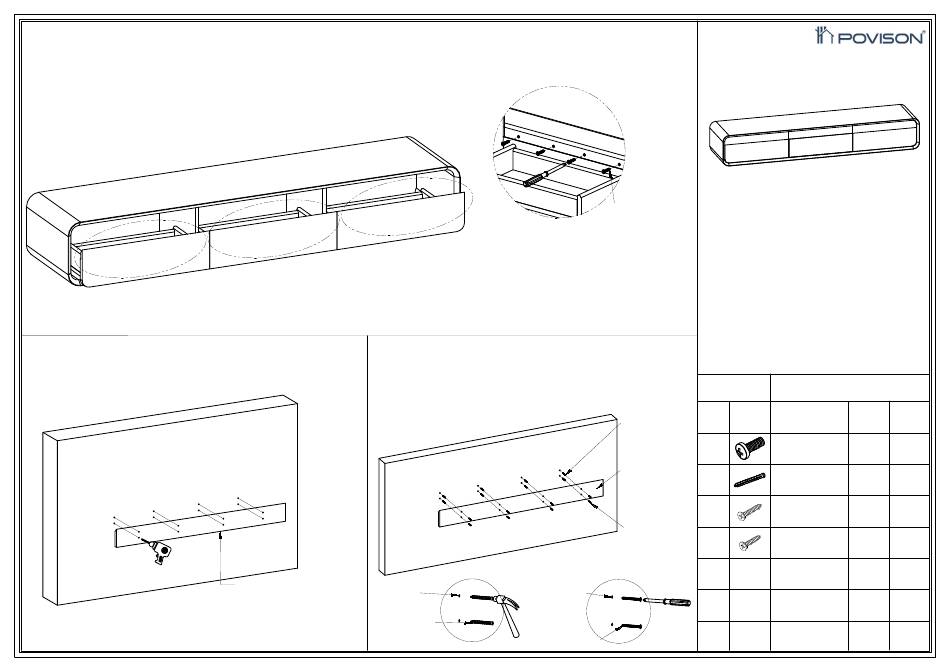

Assembly instructions
TS8197 Installation
The number of people needed for installation：2
①
Please read the manual carefully before
installing this product. And strictly
follow the installation process
② Please take good care of this manual
for your next installation
③ Note: Before installation, screw all
the screws to 1/2 of the length of
the installation. After all screws
are half screwed in, tighten them all
together.
On a red ribbon are furniture
Parts list
installation accessories
Quantity
Serial
Shape Name required for
number
installation
Philips screw
A
12
（M4*15mm）
B Expansion screw plug
8
for wall installation
Self-tapping screw
C
8
(M4*50mm)
Self-tapping screw
D
4
(M4*30mm)
E
F
G
TotaL 2 page; page 1
Spare
quantity
0
2
2
2
