POVISON TS8092ADW200 Assembly Instructions

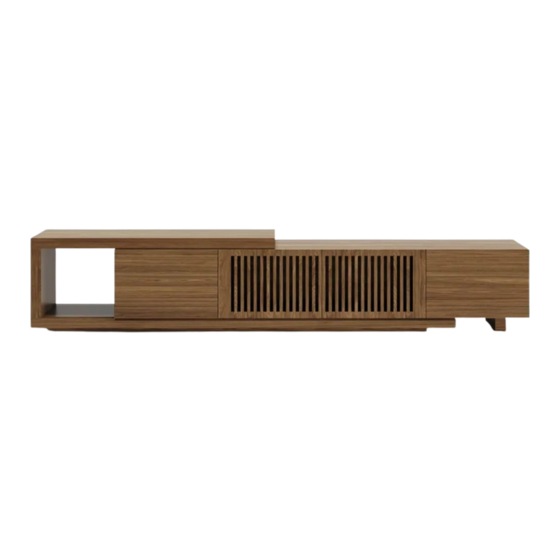

1.Television Stand Assembly Instructions
Top panel
Middle panel
Bottom panel
Nut
2.TV cabinet corner
foot installation.
Screws
(2.1)Insert the wrench into
the socket wrench for
easier tightening of the
nuts.
Hexagon Socket Machine
Screws （ M8*55mm ）
(1)Attach screws to the metal
nuts located on the top panel.
Screws
(2.2)Place the middle panel and bottom
panel in order. Insert nuts into the
designated slots on the bottom panel
and tighten them using a wrench.
Nut+Gasket
Assembly instructions
TS8092ADW200 Installation
The number of people needed for installation ： 2
Please read the manual carefully before
①
installing this product. And strictly follow
the installation process
Please take good care of this manual
②
for your next installation
Note: Before installation, screw all the
③
screws to 1/2 of the length of the
installation. After all screws are half
screwed in, tighten them all together.
On a red ribbon are furniture
Parts list
installation accessories
Quantity
Serial
Shape Name
required for
number
installation
Screw
A
2
（ M8*300mm ）
B
Screw nut 2
C
Gasket 2
D
Wrench 1
E
1
Socket wrench
Hexagon Socket
F
Machine 2
Screws （ M8*55mm ）
G
TotaL 1 page; page 1
Spare
quantity
0
0
0
0
0
1
