POVISON TS1050WS Installation Instructions

1.Place the cabinet at a suitable height and mark the holes with a marker.
(1)
Drill with electric drill.
(2)
into the rubber stopper.
Wall
A expansion screws
3.Put the support bracket at the corresponding position at the bottom of
the TV cabinet, and mark the hole position with a marker.
Wall
Drill with electric drill.
(1)
(2)
Push the expansion Place the nut on the
screw into the wall expansion screw stud and
screw it.
with a hammer.
B expansion screws
Insert the expansion screw
plug into the hole.
Use a hammer to drive the expansion screw
(3)
Tighten the self-tapping
screw with a screwdriver.
Self-tapping screws
2.Connect and hang cabinets.(Please note that this step requires one person
on each side to support the cabinet until the brackets are installed.)
4.Complete the installation

Installation instruction

Place the nut on the expansion
(1)
screw stud and screw it.

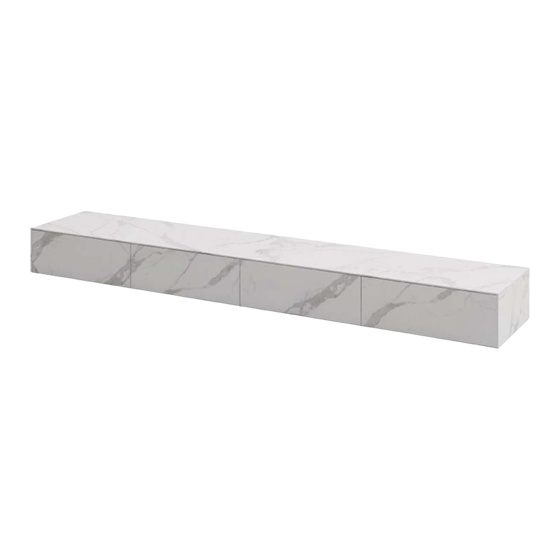

TS1050WS/BS Installation

Suggested Number of People for Assembly：3
①
Please read the manual carefully
before installing this product.
And strictly follow the
installation process
② Please take good care of this
manual for your next installation

Parts list

Serial
number
A
B
C
D
Shape Name Quantity
A expansion screws
2
(8*70mm)
B expansion screws
4
(6*60mm)
Self-tapping screws 4
Support Frame
2
of TV cabine
