1. Remove the two middle drawers.
3. Installation completed.
2. Align the cabinet connection holes, put in the
screws and tighten the nuts.
Screw nut
Phillips screw （ M8*50mm ）
Assembly instructions
+ Gasket
The number of people needed for installation ： 2
Please read the manual carefully before
①
installing this product. And strictly follow
the installation process
Please take good care of this manual
②
for your next installation
Note: Before installation, screw all the
③
screws to 1/2 of the length of the
installation. After all screws are half
screwed in, tighten them all together.
Parts list
Serial
Shape
number
A
B
C
D
E
F
G

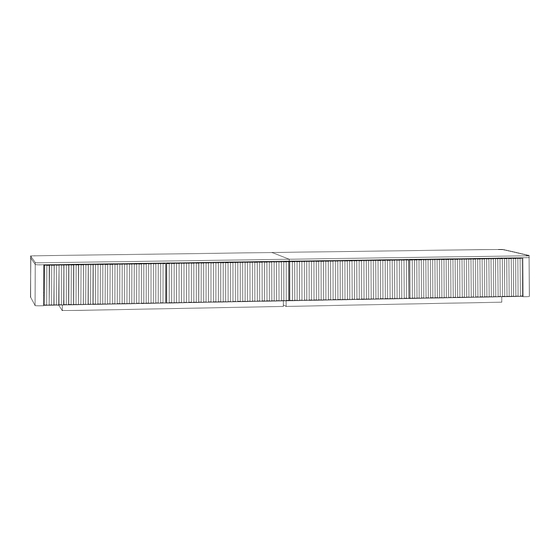

TS8138E240 Installation
On a red ribbon are furniture
installation accessories
Quantity
Spare
Name
required for
quantity
installation
Phillips screw
4
1
（ M8*50mm ）
4
1
Gasket
4
1
Screw nut
1
0
Wrench
0
2
Leveling feet
TotaL 1 page; page 1
