Kobold NRE-6 Operating Instructions Manual

Non-contact radar level transmitter, 80 ghz - compact design
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

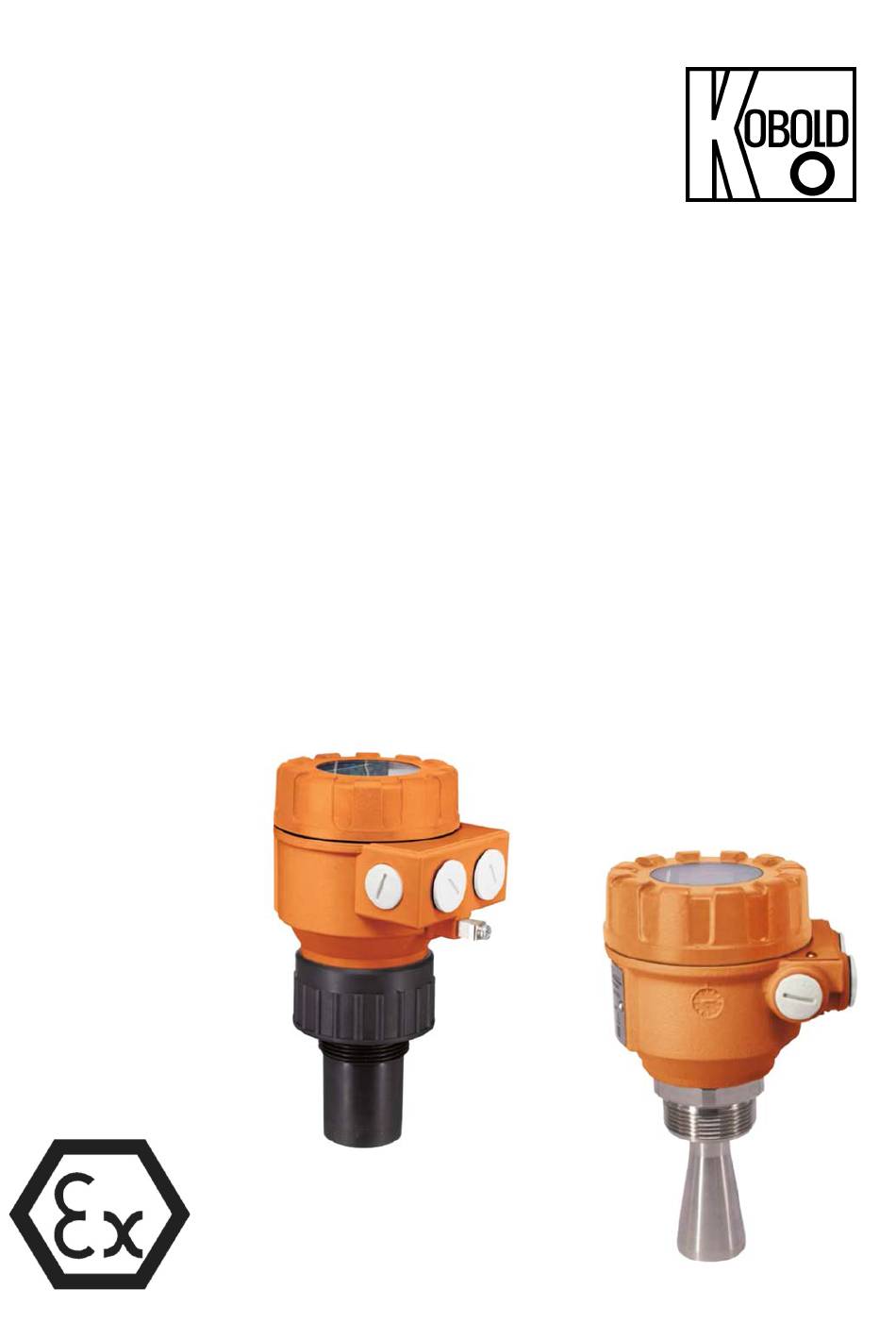

Operating Instructions
for
Non-contact Radar Level Transmitter,
80 GHz – Compact Design -
Model: NRE-4/NRE-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRE-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold NRE-6

Summary of Contents for Kobold NRE-6

  • Page 1 Operating Instructions Non-contact Radar Level Transmitter, 80 GHz – Compact Design - Model: NRE-4/NRE-6...

  • Page 2: Table Of Contents

    Service functions ................34     Trouble shooting ..................36     Status and error indication in HART ® communication ....... 36 11.1     11.2 Typical application errors ..............37     NUS-NTB_NRM-SW Instructions ..............38     page 2 NRE-4/NRE-6 K02/0624...
  • Page 3   Programming with NRM-300P Display Unit ..........43     13.1 NRM-300P display unit ..............43     13.2 The NRE-4/NRE-6 during programming ..........44     13.3 Manual programming ................. 45     Parameter list ....................46    ...

  • Page 4: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 5: Operating Principle

    (SELV/PELV). Compliance with local rules and regulations The NRE-4/NRE-6 is a Local Positioning Radar (LPR) and must be mounted in a fixed, antenna-down position. In addition, the following two restrictions on antenna placement and height from the ground must be observed: ...

  • Page 6: Explosion Protection, Designation, Limit Values

    +180 °C (+356 °F) Highest surface temperature at the process +70 °C (+158 °F) +100 °C (+212 °F) +135 °C (+275 °F) connection Highest ambient temperature +70 °C (+158 °F) +70 °C (+158 °F) +60 °C (+140 °F) page 6 NRE-4/NRE-6 K02/0624...

  • Page 7: Linearity Error

    8.1 Level measurement applications Positioning The optimal location for NRE-4/NRE-6 (for a cylindrical tank) is at radius r = (0.3…0.5) R. It is always advisable to consider the radiation cone angle. The liquid surface must be perpendicular to the axis of the device.
  • Page 8 It is essential to avoid objects (pipes, ladders, structural elements, thermometers, etc.) entering the radiation cone. CAUTION! If necessary, programming can block up to 4 interfering echoes in the NRE-4/NRE-6 threshold settings by programming! ALIGNMENT The plane of the process connection must be parallel to the measured surface within ±2…3°.
  • Page 9 The sensor must be protected from direct sunlight to avoid exceeding the highest permitted temperature. FOAM Foam on the measured surface may prevent millimeter-wave level measurement. The sensor should be mounted in a position below which the formation of foam is the smallest. NRE-4/NRE-6 K02/0624 page 9...

  • Page 10: Flow Measurement Applications

    The sensor must be positioned on the longitudinal axis of the restricting – element at a location determined by the characteristics of the restricting element. This point is marked on KOBOLD Parshall flumes. Foam may form on top of the flowing liquid which may affect the –...

  • Page 11: Wiring

    In all cases, it is the user's The measuring cable should not be responsibility to ensure the routed near high- power cables, as grounding of the tank and the shielding does not protect against measured material. switching harmonics. NRE-4/NRE-6 K02/0624 page 11...
  • Page 12 In hazardous areas, the data and requirements for designing the network may be different. When designing the measurement network, take into account the data and requirements in "3.5. Explosion Protection, Designation, Limit Values" and "3.7. Conditions for safe operation". page 12 NRE-4/NRE-6 K02/0624...

  • Page 13: Available User Interfaces

    The NUS-NTB_NRM-SW software supports both modes. In accordance with the Rosemount Standard, HART® communication can be used between the NRE- 4/NRE-6 as a “slave” and the HART® master as a point-to-point connection. Communication can be implemented in two modes. If the device is set to current In the case of a multidrop operation (4 mA), several transmission (4…20 mA, “0”...

  • Page 14: Commissioning And Setting Up

    10. Programming The HART interface of the NRE-4/NRE-6 lets the user to access and program all device parameters. The parameter set can be accessed in three ways: – NRM-300P plug-in display unit. See Chapter 13 for manual and menu map.
  • Page 15 Region 4 / Metric Russia, Kazakhstan (13) The accuracy of ±2 mm is not guaranteed for Region 3 and Region 4 settings. (13) NRM-300P NUS-NTB_NRM-SW  BASIC SETUP UNITS  Application Calculation system  ENGINEERING SYSTEM NRE-4/NRE-6 K02/0624 page 15...
  • Page 16 The accuracy of ±2 mm is not guaranteed for Region 3 and Region 4 settings. NRM-300P NUS-NTB_NRM-SW  BASIC SETUP UNITS  Application Calculation system  ENGINEERING SYSTEM Temperature unit   NRM-300P NUS-NTB_NRM-SW    BASIC SETUP UNITS ENGINEERING UNITS Measurement configuration Temperature  TEMPERATURE UNITS page 16 NRE-4/NRE-6 K02/0624...
  • Page 17 H: Longest measurable distance, it is also the zero- level distance (P04) Volume measurement (VOL) DIST: Currently measured distance A: Shortest measurable distance H: Zero-level distance B: Volume associated with the highest measurable level C: Tank’s total volume NRE-4/NRE-6 K02/0624 page 17...
  • Page 18 Except for MGD. NRM-300P NUS-NTB_NRM-SW (20)    BASIC SETUP UNITS ENGINEERING UNITS Measurement configuration TOT Units  TOT UNITS (20) Appears only if PV, SV, TV, or QV is set to FLOW! page 18 NRE-4/NRE-6 K02/0624...
  • Page 19 Close-end blocking is the user-defined extension of the dead zone, within which the device does not consider any echoes. This, e.g., enables the exclusion of objects interfering with the measurement close to the sensor. Close-end blocking cannot be less than X NRE-4/NRE-6 K02/0624 page 19...
  • Page 20 • If the level in the flume rises above the blocking value: Flow value is calculated using the parameters specified in the program, so remote blocking does not affect measured values. NRM-300P NUS-NTB_NRM-SW   MEASUREMENT CONFIGURATION  Measurement optimalization Far end (P06)  FAR BLOCKING page 20 NRE-4/NRE-6 K02/0624...

  • Page 21: Current Loop Output

    D: P10, P11 diagram valid for factory default settings NRM-300P NUS-NTB_NRM-SW       OUTPUT SETUP ANALOG OUTPUT Outputs Current output   PV VALUE OF 20 mA Assignment of 20 mA - PV NRE-4/NRE-6 K02/0624 page 21...
  • Page 22 Depending on the radar parameters. Note that it also depends on the conditions of use and how long after resuming operation the instrument will find an (24) echo that can be evaluated. NRM-300P NUS-NTB_NRM-SW   BASIC SETUP STARTUP CURRENT Outputs Startup current page 22 NRE-4/NRE-6 K02/0624...

  • Page 23: Relay Output (Optional)

    RELAY output. Adjustable value range: Value is adjustable according to PV setting range. NRM-300P NUS-NTB_NRM-SW        OUTPUT SETUP RELAY OUTPUT Outputs Relay output Relay parameters  ENERGIZED VALUE Energized value NRE-4/NRE-6 K02/0624 page 23...

  • Page 24: Digital Communication

    Analog current loop output is active (current transmission via 4…20 mA) 1…15 Analog current loop inactive (no current transmission, fixed 4 mA), multi-drop NRM-300P NUS-NTB_NRM-SW    OUTPUT SETUP DIGITAL OUTPUT  Device Identification HART Device Short Address  ADDRESS page 24 NRE-4/NRE-6 K02/0624...

  • Page 25: Measurement Optimization

    The output value is multiplied by the number set here. By default, the multiplier (1) does not modify the output. Value range: 0.7…10 NRM-300P NUS-NTB_NRM-SW  Measurement optimalization Velocity user  CALCULATION USER SLOPE MULTIPLIER correction factor NRE-4/NRE-6 K02/0624 page 25...
  • Page 26 The parameter’s unit of measure: metric: [m/h]; US: [ft/h]. NRM-300P NUS-NTB_NRM-SW     MEAS. OPTIMIZATION LEVEL TRACK Measurement optimalization Level     SPEED FILLING SPEED Level elevation rate (filling speed)  Level descent rate (emptying speed) EMPTYING SPEED page 26 NRE-4/NRE-6 K02/0624...
  • Page 27 (medium) stored in the tank must be entered here for the weight calculation. The value is a relative ratio number (without a unit) compared to the density of water, i.e., 1 g/cm3. Value range: 0.01…10 NRM-300P NUS-NTB_NRM-SW   CALCULATION SPECIFIC GRAVITY Measurement optimalization Specific gravity NRE-4/NRE-6 K02/0624 page 27...

  • Page 28: Volume Measurement

    For proper operation, it is important to specify these dimensions accurately. Vertical cylindrical tank Vertical cylindrical tank with Vertical rectangular tank with a Horizontal cylindrical tank Spherical tank with a convex bottom a conical bottom pyramidal bottom page 28 NRE-4/NRE-6 K02/0624...

  • Page 29: Open-Channel Flow Measurement

    Special trapezoidal (4:1) weir P46, P42 V-shaped weir P46, P42 Thomson (90°) weir Circular weir P46, P41 Generic formula: Q[l/s] = P41*h , h [m] P46, P41, P42 Generic formula: Q[l/s] = P41*h , h [P00:cb] P46, P41, P42 NRE-4/NRE-6 K02/0624 page 29...
  • Page 30 FLOW MEASUREMENT measurement methods P41-45: Flume / weir dimensions FACTORY DEFAULT: P40=00 KOBOLD Parshall flume (GPA1-P1 through GPA-1P9) See details in the manual of the Parshall flume. P40=09 Generic Parshall flume 0,305 < P42 (throat width) < 2,44  ...
  • Page 31 Rectangular or Bazin weir 0,001 < Q [m /s] < 5 0,15 < P41 [m] < 0,8 0,15 < P42 [m] < 3 0,015 < h [m] < 0,8 Q [m /s] =1,77738(1+0,1378h/P41)  P42  (h+0,0012) Accuracy:  NRE-4/NRE-6 K02/0624 page 31...
  • Page 32 /s] = 1,320  tg(P42/2)  h 2,47 Accuracy:  P40= 19 THOMSON (90°) weir 0,0002 < Q [m /s] < 1 0,05 < h [m] < 1 Q [m /s] = 1,320  h 2,47 Accuracy:  page 32 NRE-4/NRE-6 K02/0624...

  • Page 33: Output Conversion Table - Oct Programming

    0. L (left column) R (right column) MEASURED LEVEL OUTPUT VALUE R(1) L(2) R(2) L(i) R(i) L(nn) R(nn) nn+1 NRM-300P NUS-NTB_NRM-SW   CALCULATION OCT TABLE OC-Table OCT list (See Chapter 7.5) NRE-4/NRE-6 K02/0624 page 33...

  • Page 34: Service Diagnostic Parameters (Read Only)

    Entering a zero will clear the user code! When the code is active, the unit will prompt for the code when entering the menu. NRM-300P NUS-NTB_NRM-SW    SERVICE SECURITY USER LOCK Advanced Special page 34 NRE-4/NRE-6 K02/0624...
  • Page 35 Simulation This function helps the user to check the outputs and the processing device connected to it. NRE-4/NRE-6 can simulate a constant or a variable value of the level. The simulation level values must be within the measurement range defined by P04 and P05.

  • Page 36: Trouble Shooting

    Contact the dealership if the power supply voltage level is correct and the error persists. page 36 NRE-4/NRE-6 K02/0624...

  • Page 37: Typical Application Errors

    – excessive waves Check threshold settings. See Chapter 12.3! – incorrect max. (P03) measurement setting Check the P03 maximum measuring distance – it can happen in cases of echo below the setting. threshold curve. NRE-4/NRE-6 K02/0624 page 37...

  • Page 38: Nus-Ntb_Nrm-Sw Instructions

    “Device List” in the main window and select the “Show Device Status Window” menu item in the popup window. This window shows the status and error messages of the NRE-4/NRE-6. (See Chapter 11.1) The “Device Status Window” can also be summoned in the “Polling” window by activating the corresponding check box.

  • Page 39: Threshold Settings

    “Apply Threshold settings” button, which can also be found in the threshold editing function bar or the context menu. To display the evaluation corresponding to the new threshold, refresh the chart with the “Refresh” button in the bottom menu bar (or the F4 function key). NRE-4/NRE-6 K02/0624 page 39...

  • Page 40: Threshold Mask

    “Apply Threshold settings” function, it uses the previous (current) threshold settings, which can be read with the “Read Threshold settings” function. The factory default settings can be restored with the “Reset Threshold Settings” function. page 40 NRE-4/NRE-6 K02/0624...

  • Page 41: The Output Conversion Table (Oct)

    “Send” button on this page (“OC-Table” tab) on the right side under the “Get” button to download the table to the device. NRE-4/NRE-6 K02/0624 page 41...

  • Page 42: Programming Example 1 - Configuring Level Measurement (Using Nus-Ntb_Nrm-Sw)

    Press the “Send” button in the lower right corner of the window to download the new value The device will work according to the new settings after the download is to the device. complete. Press the “X” close button to exit the device settings window. page 42 NRE-4/NRE-6 K02/0624...

  • Page 43: Programming Example 2 - Configuring The Current Loop Output (Using Nus-Ntb_Nrm-Sw)

    300P to prolonged heat or sunlight as the display may be damaged. If it is not possible to protect the NRE-4/NRE-6 from sunlight or if the NRE-4/NRE- 6 is to be used outside the operating temperature range of the NRM-300P, do not...

  • Page 44: The Nre-4/Nre-6 During Programming

    NRE-4/NRE-6 13.2 The NRE-4/NRE-6 during programming By default, the NRE-4/NRE-6 displays the main measurement data on the NRM- 300P display (hereafter referred to as the display). To enter the programming menu, press the button. Use the buttons to navigate between the menu items.

  • Page 45: Manual Programming

    When you reach the end of the field, the cursor returns to the first position on the right. The modification is completed by pressing the button. NRE-4/NRE-6 will then check the value entered, and if it is not correct, the message "WRONG VALUE!" will appear on the bottom line.

  • Page 46: Parameter List

    Software identifier (COPROC) Measuring height of the flow measurement (read only) (LEV) Software identifier (MAIN MCU) TOT1 totalizer (clearable) Special config mode (read only) TOT2 totalizer Hardware code (read only) Current generator re-measured output current [μA] page 46 NRE-4/NRE-6 K02/0624...

  • Page 47: Maintenance, Repair And Storage Conditions

    98%. 16. Firmware update The device's firmware is continuously maintained, considering user feedback and needs. If you want to update the firmware, contact your local KOBOLD partner! NRE-4/NRE-6 K02/0624 page 47...

  • Page 48: Technical Information

    NRE-4/NRE-6 17. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 18. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 19.

  • Page 49: Disposal

    (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment NRE-4/NRE-6 K02/0624 page 49...

  • Page 50: Eu Declaration Of Conformance

    NRE-4/NRE-6 21. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Non-contact Radar Level Transmitter, 80 GHz – Compact Design Model: NRE-4/NRE-6 to which this declaration relates is in conformity with the following EU directives...
  • Page 51 - Part 33: Specific conditions for Ultra-WideBand (UWB) devices - Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU Hofheim, 16 April 2024 H. Volz J. Burke General Manager Compliance Manager NRE-4/NRE-6 K02/0624 page 51...

  • Page 52: Eu Declaration Of Conformity (Atex)

    The above-mentioned product complies with Directive 2014/34/EU. New editions may have already replaced one or more of the standards mentioned in the EU type examination certificates. Kobold Messring declares that the product mentioned in this declaration of conformity either meets the requirements of the new editions or is not affected by the changes.

  • Page 53: Ex Ia Certificate

    NRE-4/NRE-6 23. Ex ia Certificate NRE-4/NRE-6 K02/0624 page 53...
  • Page 54 NRE-4/NRE-6 page 54 NRE-4/NRE-6 K02/0624...
  • Page 55 NRE-4/NRE-6 NRE-4/NRE-6 K02/0624 page 55...
  • Page 56 NRE-4/NRE-6 page 56 NRE-4/NRE-6 K02/0624...
  • Page 57 NRE-4/NRE-6 NRE-4/NRE-6 K02/0624 page 57...
  • Page 58 NRE-4/NRE-6 page 58 NRE-4/NRE-6 K02/0624...
  • Page 59 NRE-4/NRE-6 NRE-4/NRE-6 K02/0624 page 59...
  • Page 60 NRE-4/NRE-6 page 60 NRE-4/NRE-6 K02/0624...
