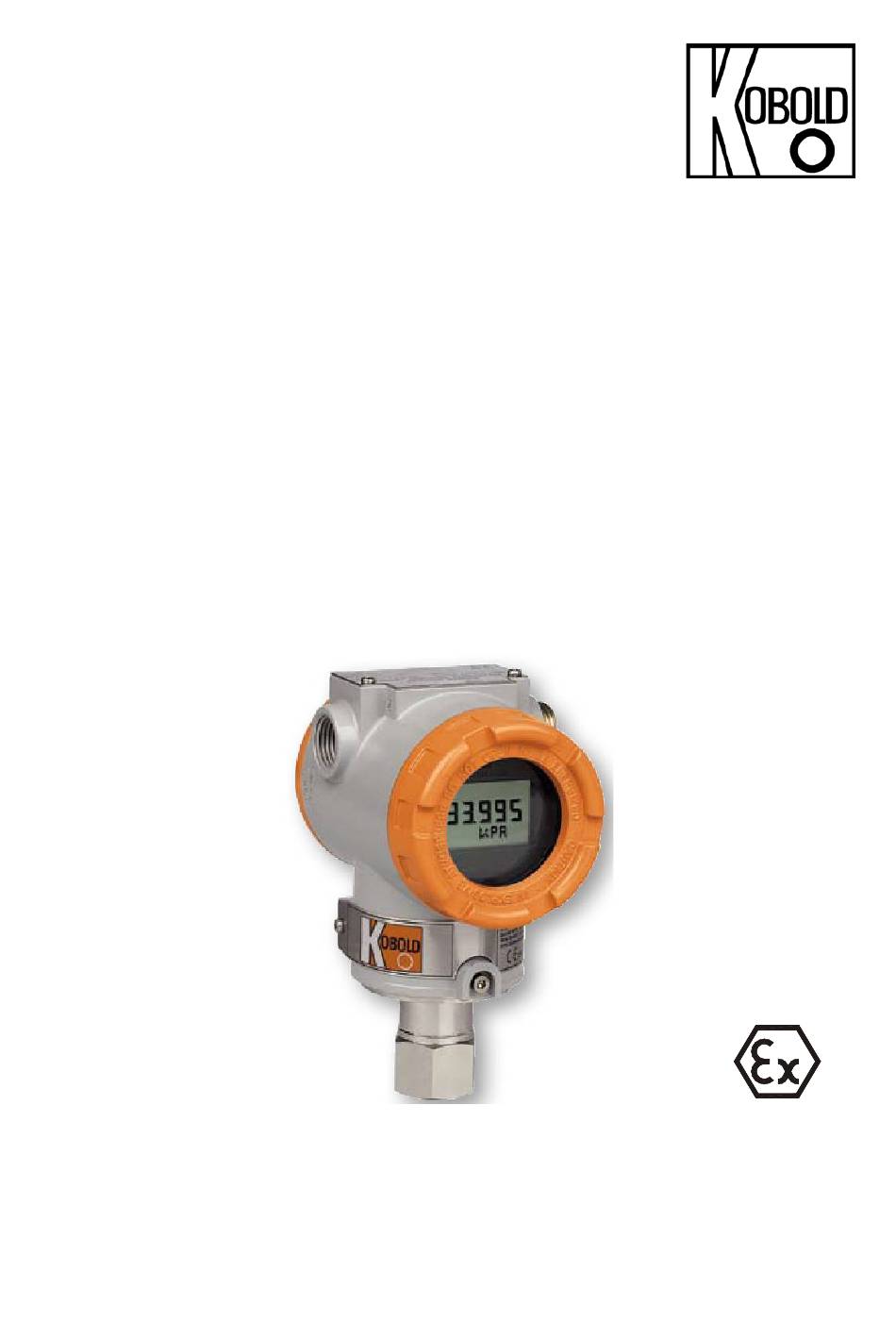

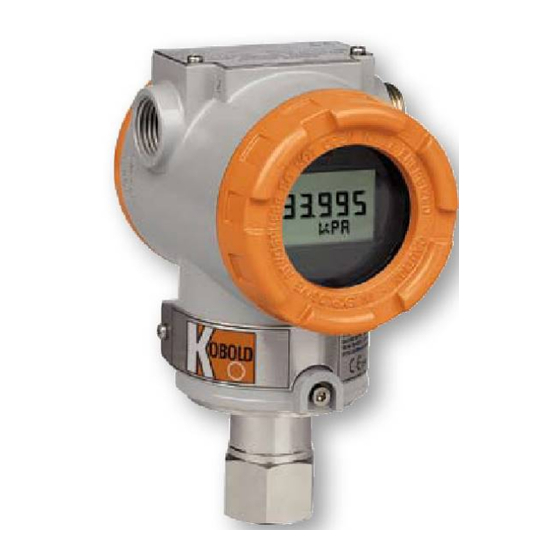

  • Page 1 Operating Instructions SMART PRESSURE TRANSMITTER Model: PAS...

  • Page 2: Table Of Contents

    7. On-line Operation ..................46 Overview .................... 46 Safety Message ................. 46 Configuration Data Review ..............46 Check Output ..................46 Basic Setup ..................47 Detailed Setup ................... 47 Tag Information set up ............... 48 Diagnostics and Services..............49 page 2 PAS K17/1022...
  • Page 3 10. Disposal ...................... 58 11. EU Declaration of Conformance ..............59 12. EU Type Examination Ex d ................. 61 13. EU Type Examination Ex ia ................ 64 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com...

  • Page 4: Introduction

    2. Introduction The PAS Smart Pressure Transmitter are correctly calibrated at the factory before shipment. To ensure correct and efficient use of the instrument, please read this manual thoroughly and fully understand how to operate the instrument before operating it 1.

  • Page 5: Using This Manual

    3. Using This Manual The Chapters in this operating manual provide information on installing, operating, and maintaining devices from KOBOLD Model PAS Smart Pressure Transmitter. Chapters within this manual are organised as follows. Chapter 4 Handling Cautions Chapter 4 provides instructions on software functions, configuration parameters, and online variables.

  • Page 6: Overview Of Transmitter

    & long-term stable gauge and absolute pressure measurements over a wide range of operating conditions. PAS is a two-wire loop power transmitter and has a standard 4/20mA output scaled for desired output pressure range. In addition, it also offers digital HART®...

  • Page 7: Transmitter Components

    3.3 Transmitter Components The various components of PAS Series Smart Pressure Transmitter are shown below: [Figure 3-1 Transmitter Exposed View and Components] PAS K1710522 page 7...

  • Page 8: Handling Cautions

    (Applying - Close equalizing valve of 3/5 valve manifold, then, Pressure pressure) open stop valve on high and low side slowly and simultaneously. Operation - Make sure that transmitter operates within specs. Visual or HHT page 8 PAS K17/1022...

  • Page 9: Unpacking

    (3) If storing a transmitter that has already been used, thoroughly clean all wetted parts including diaphragm seals installed), process connections/manifolds in contact with process fluid. In addition, make sure before storing the transmitter that remote seal (if supplied) assemblies are securely mounted. PAS K1710522 page 9...

  • Page 10: Selecting Installation Locations

    (5) When using local push buttons please refer to Chapter 4.7 of this manuals for detailed instructions. If using an external HHT or HART® PC configurator please refer to the user manuals supplied by the third party supplier. page 10 PAS K17/1022...

  • Page 11: Pressure Connections

    Thereafter, always use the transceiver outside the area affected by noise. PAS K1710522 page 11...

  • Page 12: Insulation Resistance Test And Dielectric Strength Test

    '0' to the specified voltage. d) When the specified voltage is reached, hold it for one minute. e) After completing this test, slowly decrease the voltage to avoid any voltage surges. page 12 PAS K17/1022...

  • Page 13: Installation Of Explosion Protected Type Transmitters

    • Supply Voltage: 12.5 - 45 Vdc max • Output Signal: 4 to 20 mA + HART Note 3. Electrical Connection: 2 x 1/2-14 NPT Female Note 4. PAS ATEX Certification is according to the below standards EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-31:2014 Note 5.
  • Page 14 4 mm2 conductor. Note 7. Maintenance and Repair • The instrument modification or parts replacement by other than authorized representative of KOBOLD Messring GmbH is prohibited. For information regarding the dimensions of the flameproof joints the manufacturer shall be contacted.
  • Page 15 Additionally, the equipment shall only be cleaned with a damp cloth. Models with enclosures made of aluminium (ASTM B85) are considered to present a potential risk of ignition by impact or friction. Care must be taken during PAS K1710522 page 15...
  • Page 16 Ex condition. in the field while wiring +, - power supply voltage. However if the wiring is not performed correctly or wrong terminals on rear terminal board are used for power supply, the transmitter may malfunction. page 16 PAS K17/1022...
  • Page 17 Li in transmitter with Ex ia + cable inductance in associated equipment. Equip with Ex ia Comparison Associated Equipment ≥ Ui = 30 VDC ≥ Ii = 200 mA ≥ Pi = 0.9 W Ci = 27 nF < Li = 104 uH < PAS K1710522 page 17...

  • Page 18: Notes On The Machine And Pressure Equipment Directive

    Vessels referred to in Article 4(1)(a)(i), second indent 5. Transmitter Functions 5.1 Overview This Chapter contains information on operating Model PAS. Tasks that should be performed on the bench priori to installation are explained in this chapter. 5.2 Safety Message Procedures and instructions in this chapter may require special precautions to ensure the safety of the personnel performing the operations.

  • Page 19: Warning

     Only qualified & trained personnel should be allowed to operate these transmitters 5.4 Fail Mode Alarm KOBOLD Smart Pressure Transmitter automatically and continuously performs self-diagnostic routines. If the self-diagnostic routines detect a failure, the transmitter drives its output outside of the normal saturation values. The transmitter will drive its output low (down) or high (up) based on the position of the failure mode alarm jumper.
  • Page 20 Disable selection. DIP switch (2) shown on right in Fig 5-1 is for Fail Mode. < Fail Mode Selection Jumper Switch of LCD Module > U O O O O O O (If Down) FAIL MODE (If Up) Figure 5-2 Fail Mode Selection Jumper Switch of LCD Module page 20 PAS K17/1022...

  • Page 21: Eeprom-Write Enable / Disable Mode Switch

    5.5 EEProm-Write Enable / Disable Mode Switch PAS includes an EEPROM (Electrically Erasable Programmable Read Only Memory) that allows saving and restoring various configuration data within the transmitter on power failure. To lock configuration and protect changes to stored configuration data, one can use a HHC and or external HART® enabled PC device to enable a software lock feature under Status menu.

  • Page 22: Configuration Of Alarm And Security Jumper Procedures

    There are ZERO and SPAN Buttons to be seen when the nameplate is opened (Figure 5-4). You may reconfigure the function settings of ZERO, SPAN, ZERO TRIM, ZERO ADJ, Units, Range, Damping, LCD and Decimal place, using ZERO / SPAN buttons. [Figure 5-4 Transmitter Zero/Span configuration Buttons] page 22 PAS K17/1022...
  • Page 23 - After 30 seconds inactivity the automatic time out feature will default user back to normal measurement mode with a “BT-Err” message on display. - Please refer to Appendix 1 for LCD display messages and the button errors. PAS K1710522 page 23...
  • Page 24 Change Unit span span 22 U-RNG Change Upper Range Value span 23 L-RNG Change Lower Range Value span 24 DAMP Damping Second span 3 LCD 31 LCD-MD Change LCD Mode span span 32 DEC-PL Decimal Place span page 24 PAS K17/1022...
  • Page 25 ->Then set increment rate again as “100” ->Increase 8 times in steps of 100 till display reads “3800” ->Set increment rate again as 10 ->Increase 1 time for a step change of 10 till display reads 3810. PAS K1710522 page 25...
  • Page 26 Measurement Mode. g) If the programming sequence is successful, the display will read –DONE- else “BT-ERR” to indicate failure. If display shows “RANGOVR” it indicates numerical value inputted is out of specs. page 26 PAS K17/1022...
  • Page 27 - If display shows “BT-ERR” instead of –ZA- please repeat all steps once again. - If display shows “ADJ-U” or “ADJ-L” the inputted numerical value is out of specs for zero adjustment range for the supplied range codes. PAS K1710522 page 27...
  • Page 28 CHANGE Damping Value (Sub-Menu 24) - Enter programming menu by pushing both (ZERO + SPAN) button together for 3 seconds. Release buttons when LCD displays Menu and display will automatically change to “1 TRIM” confirming access into programming menu. page 28 PAS K17/1022...
  • Page 29 ENG_RO PV, Engineering %, Engineering mA Mode units in rotation on LCD Indicating changed PV value with ENG_PV Engineering PV Mode modified Engineering range - To save the settings, press SPAN button until “DONE” message appears. PAS K1710522 page 29...
  • Page 30 - The set value will be applicable for displaying PV value and Engineering value. - The LCD will display “LCD_OV” and current setting unit when the pressure exceeds the limit of the setting value. • Please refer to Appendix 1 for LCD display message and the button errors. page 30 PAS K17/1022...

  • Page 31: Wiring Connections For External Hht/ Ammeter

    5.8 Wiring Connections for External HHT/ Ammeter PAS Pressure Transmitter can also be commissioned using a HART® enable HHT or PC configuration either before or after installation. A complete commissioning consists of configuring and/ or verifying transmitter configuration data, testing the transmitter, testing the loop and zero trimming.

  • Page 32: Installation

    6. Installation 6.1 Overview The information in this chapter 6 covers installation considerations. Dimensional drawings for Model PAS variation and mounting configuration are included in this chapter. 6.2 Safety Message Procedures and instructions in this chapter may require special precautions ensure the safety of the personnel performing the operation.

  • Page 33: Commissioning On The Bench With Hand-Held Terminal

    Pressure Support Maintenance Do you satisfy Spec? Field Install a) Select correct location b) Connect signal leads c) Check grounding d) Connect Power Supply e) Process Leak Check f) Verify values [Figure 6-1 Commissioning Flow Chart] PAS K1710522 page 33...

  • Page 34: General Considerations

    6.5 General Considerations The PAS transmitter uses a piezoresistive pick up. As changes in pressure are accurately detected, any zero shift or installation offsets will be transmitted as a pressure change on the 4~20 mA analogue current output. Hence it is recommended that the transmitter be mounted as close to the process as possible and use short impulse piping, when possible, to achieve best accuracy.

  • Page 35: Wiring

    (5) Ensure loose contacts are eliminated and proper wiring connections are maintained. (6) After wiring replace transmitter cover. In case of explosion proof areas, you must satisfy all requirements to maintain certification requirements. PAS K1710522 page 35...
  • Page 36 HART® Communication. Follow Figure 6-2 below for wiring instructions. COMM COMM TEST TEST Figure 6-2 Connection with Terminal Board of Transmitter Local Indicator Ampere Meter DCS or Power Supply Figure 6-3 Picture of Terminal Board of Transmitter page 36 PAS K17/1022...
  • Page 37 6.7.4 Wiring A. Loop Configuration Kobold Series Transmitters use a two-wire system for power supply, 4~20 mA analogue signal transmission and HART digital transmission. DC Power Supply is required for the transmitter loop. The Transmitter and distributor are connected as shown below.
  • Page 38 For an intrinsically safe operation, an appropriate intrinsically safe (IS) safety barrier should be used. The IS safety barrier should have an appropriate approval and placed outside the hazardous area (in non-hazardous area). IS Safety Barrier manufacturer’s instructions should be followed in this respect. page 38 PAS K17/1022...
  • Page 39 Make cable wiring using metallic conduit or Waterproof cable glands. Apply a non-hardening sealant to the terminal box connection port and the threads on the flexible metal conduit for the waterproofing. [Figure 6-4a Typical Wiring using Flexible Metal Conduit] PAS K1710522 page 39...
  • Page 40 130 °C. - The selection of cable, cable gland shall meet the requirement of Ex db and/or Ex tb per IEC 60079-14. Ex db barrier type cable gland [Figure 6-4b Typical Wiring using Ex db cable gland] page 40 PAS K17/1022...
  • Page 41 130 °C. - The selection of cable, cable gland shall meet the requirement of Ex db and/or Ex tb per IEC 60079-14. Ex tb cable gland [Figure 6-4c Typical Wiring using Ex tb cable gland] PAS K1710522 page 41...
  • Page 42 (d) The size of insulated wire for grounding is per the table below. (e) Insulated wire for grounding shall be clamped to avoid twisting and loosening. [Figure 6-5 Internal and external grounding terminals of the PAS Smart pressure transmitter] Cross-sectional area of phase conductors, S Minimum cross-sectional area of the corresponding PE conductor, S S ≤...
  • Page 43 And maximum loop current is 24 mA, Load resistance R: R = (E-12.5) / 0.022 (E = Power Supply Voltage) Note! In case of an intrinsically safe transmitter, external load resistance includes safety barrier resistance. Figure 6-5 Model PAS Smart Pressure Transmitter Power Supply PAS K1710522 page 43...

  • Page 44: Mechanical Considerations

    6.8 Mechanical Considerations Figure 6-6 is transmitter dimensional drawings of PAS. A mounting example and dimensional drawings are shown in Figure 6-7. [Figure 6-6 Transmitter Outline Dimensional Drawings] 2“ Pipe Mounting Bracket Model: ZUB-PAD/PAS-K page 44 PAS K17/1022...

  • Page 45: Environmental Considerations

    6.9.2 Toxic/ High Humidity considerations Housing of PAS Smart transmitters is protected from direct exposure to moisture or toxic materials provided front and rear covers are engaged fully with appropriate O-rings included. Electronic circuits are separated from terminal side;...

  • Page 46: On-Line Operation

    7. On-line Operation 7.1 Overview This chapter describes configuration functions of PAS smart pressure Transmitter. Transmitter can be configured in either On-Line or Off-Line mode. In On-Line configuration mode, you must connect through an external HHT (Hand ® Held Terminal) supporting HART DDL technologies.

  • Page 47: Basic Setup

    7.4.1 Process Variable The PAS Smart pressure transmitter measures two variables. Primary Variable is always the process pressure measured and SV (Secondary Variable) is the temperature. Note: Temperature measured is used strictly for internal compensation. Only PV value can be assigned to current output on a 4~20mA loop.

  • Page 48: Tag Information Set Up

    8 alpha-numeric characters. For additional description use Set Message option under 7.7.2. 7.7.2 Set Messages When using several transmitters, user may classify each transmitter by using 32 alpha-numeric characters. This message is saved in EEPROM of transmitter. page 48 PAS K17/1022...

  • Page 49: Diagnostics And Services

    It is highly recommended to perform a sensor trim when first commissioning the transmitter on site. There are three ways to trim the sensor: Sensor zero trim, full trim and zero adjustment. PAS K1710522 page 49...
  • Page 50 When performing a D/A trim it is recommended to do a minimum of two points i.e. trim at (4 mA) and (20 mA). It may however be necessary to perform repeated trims at both 4/20 mA to achieve optimum results. page 50 PAS K17/1022...

  • Page 51: Maintenance

     If the process fluid may be toxic or otherwise harmful, take appropriate care to avoid contact and/ or exposure to direct vapours even after dismounting the instrument from process line for maintenance. PAS K1710522 page 51...

  • Page 52: Hardware Diagnostics

    No Output Loop Wiring multiple grounds. • Check polarity of signal terminal • Check the loop impedence. • Connect HHT and check the sensor limits to ensure Electronics Module calibration adjustments are within the sensor range. page 52 PAS K17/1022...

  • Page 53: Hardware Maintenance

    8.4 Hardware Maintenance KOBOLD PAS Smart Transmitters have no moving parts and require a minimum of scheduled maintenance. Both transmitters feature modular design for easy maintenance. If you suspect a malfunction, check for an external cause before performing the diagnostics as discussed later in this section. If you must return failed transmitters or parts, send them to KOBOLD Messring GmbH for inspection, repair, or replacement.
  • Page 54 Note2: The transmitter EEP-Write Enable and failure mode jumpers are located on the front of the electronics module. When replacing with a new one, make sure to duplicate the same jumper settings on the replacement board. page 54 PAS K17/1022...
  • Page 55 8. If all self checks are completed and found OK, the transmitter will enter measurement mode automatically. 9. If any errors are found, same will be displayed on LCD. Follow the troubleshooting guide included in this manual to help identify and correct any fault conditions. PAS K1710522 page 55...
  • Page 56 9. Appendix I PAS SMART PRESSURE TRANSMITTER LCD DISPLAY CODE Description Remarks Message Out of Zero setting value when Zero Adj function using ADJ-U button (Upper side) Out of Zero setting value when Zero Adj function using ADJ-L button (Lower side)
  • Page 57 Indicating 4 ~ 20 mA value depending on measured PV NOR_mA value on LCD Indicating the value with Engineering PV, Engineering ENG_RO %, Engineering mA units as continually on LCD Indicating changed PV value with modified Engineering ENG_PV range PAS K1710522 page 57...

  • Page 58: Disposal

    (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 58 PAS K17/1022...

  • Page 59: Eu Declaration Of Conformance

    RoHS 2015/863/EU Delegated Directive (RoHS III) Kobold Messring GmbH recommends customer to apply the Metal Conduit Wiring or to upset the twisted pair Shield Cable for signal wiring to conform the requirement of EMC Regulation, when customer installs Kobold Series Transmitters to the plant.
  • Page 60 Additional PAS...F0... and PAS…E0… are in conformity with the standards below: EN 60079-0:2018 Explosive atmospheres - Part 0: Equipment - General requirements EN 60079-1:2014 Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d" EN 60079-31:2014 Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"...

  • Page 61: Eu Type Examination Ex D
