Instructions
Cleanshot™ Shut-Off
Valve
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.

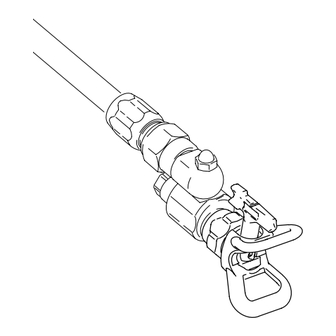

Model 244160
3600 psi (248 bar) Maximum Working Pressure
For use on any Graco high pressure airless gun or extension.
Includes RAC5 517 SwitchTipt and HandTitet guard.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001
Parts
309314 rev.D
Advertisement
Related Manuals for Graco Cleanshot 244160
Summary of Contents for Graco Cleanshot 244160
- Page 1 Save these instructions. Model 244160 3600 psi (248 bar) Maximum Working Pressure For use on any Graco high pressure airless gun or extension. Includes RAC5 517 SwitchTipt and HandTitet guard. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 WARNING HIGH PRESSURE SPRAY CAN CAUSE SERIOUS INJURY. FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS. Read and understand all instruction manuals before operating the equipment. Skin Injection Hazard Pressure Relief Procedure This adapter conducts very high fluid pressure. Spray from the To reduce risk of serious injury, including fluid injection, gun, leaks or ruptured components can inject fluid through your splashing material on the eyes or skin, or injury from...
-
Page 3: Installation
INSTALLATION WARNING CAUTION To reduce the risk of serious bodily injury from fluid injection To avoid damage to the o–ring in the swivel: or splashing in the eyes or on the skin, stop using the nozzle D Relieve fluid pressure before rotating the swivel. immediately if it starts to leak or cannot be turned easily. - Page 4 Parts Cleanshott Repair Kit 244162 (31) Torque 26–32 ft-lb Swivel Repair Kit 244363 (35) Valve Body Kit 245687 (36) Torque 55–60 in-lb Torque 26–32 ft-lb * 36 Valve Body Kit must be purchased separately ti0947 309314...
-
Page 5: Parts List
Maximum working pressure ..3600 psi (25 MPa, 248 bar) RETAINER, u–cup TO PLACE AN ORDER, contact your Graco distribu- CAP, end, u–cup tor, or call this number to identify the distributor closest KNOB, valve to you: 1–800–690–2894 Toll Free 162863 GASKET, non–metallic... - Page 6 This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the origi- nal purchaser transportation prepaid.
