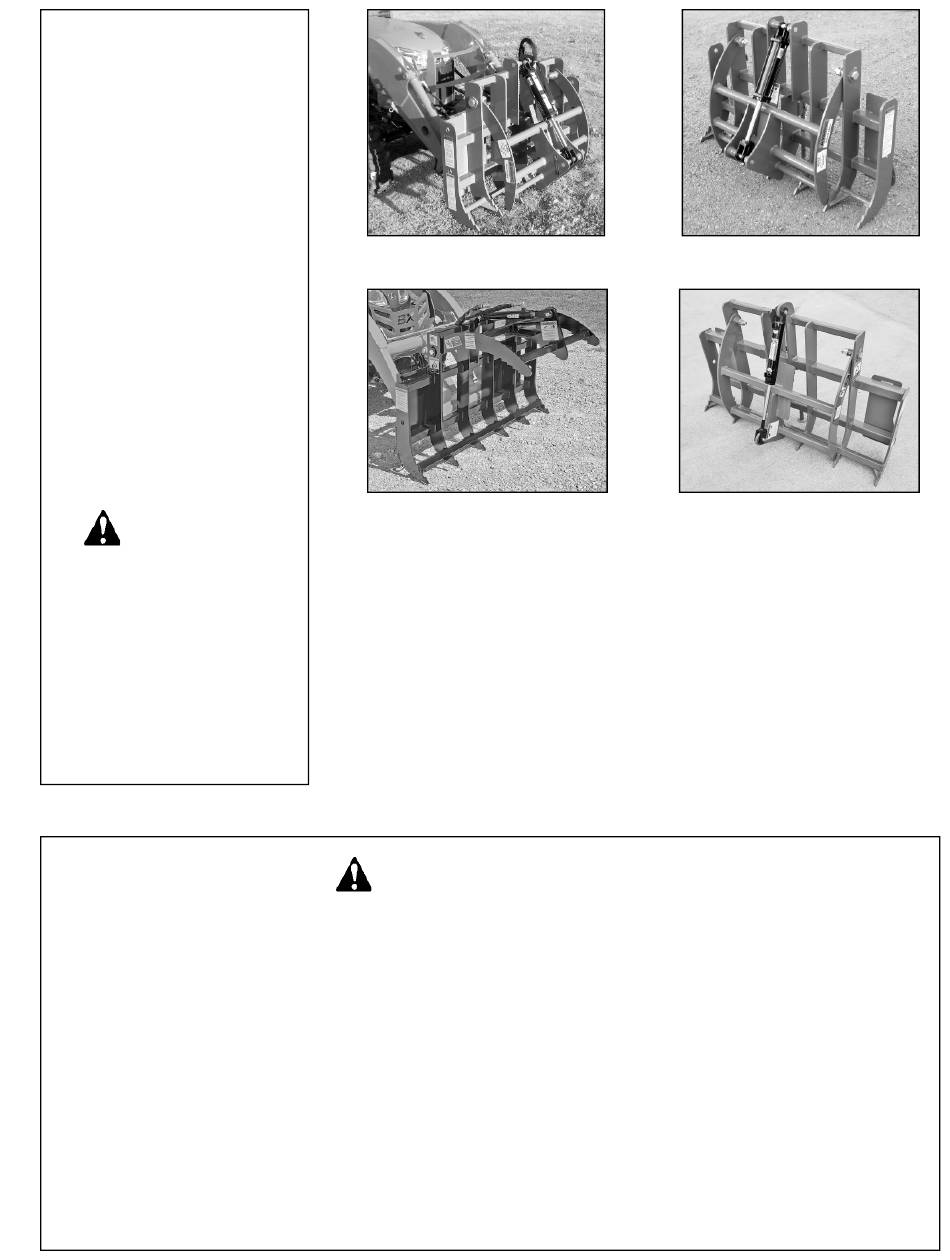

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
CTMG-48S
CTMG-48JD
SCG-48S
SCG-48JD
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
Mini Grapple Rake for
Compact & Sub-Compact
Tractor Front Loaders
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
CTMG-48S
SCG-48S
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
CTMG-48JD
SCG-48JD
Assembly & Mounting
Maintenance
Repair Parts
Advertisement
Table of Contents
Related Manuals for Worksaver CTMG-48S
Summary of Contents for Worksaver CTMG-48S
- Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s CTMG-48S CTMG-48JD CTMG-48S CTMG-48JD SCG-48S SCG-48JD SCG-48S SCG-48JD CAUTION Mini Grapple Rake for For Safe Operation Read Rules And Compact & Sub-Compact Instructions Carefully Tractor Front Loaders SI NO LEEINGLES, PIDA AYUDA Safety Instructions Assembly &...
-
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model and serial number of your Grapple Rake... -
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability. -
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. - Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
- Page 6 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Start tractor only when properly seated in the tractor seat. Starting a tractor in gear can result in injury or death. Do not mount or dismount the tractor while the tractor is moving. Mount or dismount the tractor only when the tractor and all moving parts are completely stopped.
- Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Check that this attachment is securely mounted to the loader. Failure to install lock pins or have the latching mechanism engage could result in injury or death. Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as being struck by foreign objects or being thrown off.
- Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the power unit, loader, and load. Drive slowly. Allow for additional length of loader and load on power unit while turning.
- Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
- Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the brakes, and remove the ignition keys.
- Page 11 SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation, or when unhooking, stop the tractor, set the brakes, disengage the PTO, shut off the engine and remove the ignition keys. Use extreme care to keep feet and hands from under the unit and clear of any pinch points. Never stand or allow another person to stand between a running tractor and the unit when disconnecting the implement from the tractor.
- Page 12 Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure washer; high-pressure water can enter through very small scratches or under edges of decals causing them For Models CTMG-48S & SCG-48S only to peel or come off.
- Page 13 SAFETY & INSTRUCTIONAL SIGNS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! 5WS101297 Above Safety Sign ONLY for Models CTMG-48JD & SCG-48JD REMEMBER: If Safety Signs have been damaged, removed, become illegible or parts replaced without Signs, new Safety Signs must be applied. New Safety Signs are available from your authorized distributor or factory.
- Page 14 SAFETY SIGN LOCATION ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! NOTE: Location of safety signs may vary on different models. Ref. Part No. Description Req’d. 101221 Safety Sign – Warning Read Manual 101204 Safety Sign – Warning Clamping 101129 Safety Sign –...
-
Page 15: Preparation Instructions
Grapple Rakes are recommended for tractors with a hydraulic fittings do not require thread sealant. engine horsepower rating of 20-32 hp. Models CTMG-48S and CTMG-JD have a 2” bore x 8” The models CTMG-48S and CTMG-48JD Compact stroke hydraulic cylinder operates the grapple clamp to Tractor Grapple Rakes are recommended for tractors grip and hold the material. -
Page 16: Skid Steer Type Mounting
INSTRUCTIONS (continued) MODELS SCG-48S & CTMG-48S ATTACHMENT TO PRIME MOVER —————————————————— WARNING Improper attachment of the Grapple Rake could result in injury or death. Do not operate this product until you have positive indication that the attachment is securely mounted. -
Page 17: Safety Signs
INSTRUCTIONS (continued) MODELS SCG-48JD & CTMG-48JD ATTACHMENT TO PRIME MOVER —————————————————— These grapple models are specifically designed for John Deere 100, 200, and 3E series loaders. NOTE: Procedure is the same for all attachments. Bucket attachment shown. ATTACHING 1. Extend bucket tilt cylinders to angle attaching brackets NOTE: On attachments with two pins (F), the 100, 200, forward. -
Page 18: Operating Instructions
OPERATING INSTRUCTIONS PRE-OPERATION CHECKLIST SAFETY INSTRUCTIONS Observe all instruction and safety decals on the (OWNER/OPERATOR RESPONSIBILITY) Grapple Rake. These safety signs are shown for reference. Read them carefully before using the Grapple ____ Review and follow safety rules and safety signs on pages 3 through 12. - Page 19 OPERATING INSTRUCTIONS (continued) HANDLING MATERIAL Grapple Rake Limitations (continued) burning and final land clearing. The rake frame is not Approach the material to be handled with the grapple designed to bulldoze out stumps or buried rocks. DO clamp open, when the rake frame contacts the material, NOT turn when tines are in ground.
-
Page 20: Owner Maintenance
OWNER SERVICE TRANSPORTING WARNING ■ Do not operate this product until you have posi- CAUTION tive indication that this attachment is securely mounted to the loader. Failure to install lock pins or When traveling on public roads, whether at night or have the latching mechanism engaged could result during the day, use accessory light and devices for in injury or death. -
Page 21: Trouble-Shooting Guide
TROUBLE-SHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Grapple Rake 1. No or insufficient oil flow. Remote hydraulic connection fittings not clamp will not compatible. Check for proper fitting. operate. Hydraulic system may not be supplying rated pressure. Consult your dealer. Hydraulic system may not be delivering its rated volume of oil due to wear. - Page 22 TROUBLE-SHOOTING GUIDE (continued) PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Material slips from 1. Clamp arms not positioned cor- Reposition clamp arms. Grapple Rake rectly on material. grasp. 2. Not firmly clamped by hydraulic Operate hydraulic cylinder to clamp cylinder. tighter. 3. Hydraulic system has leak – allow- Find leak and repair (could be O-Ring in ing clamping pressure to back off.
-
Page 23: Parts Lists
SUB-COMPACT TRACTOR FRONT LOADER GRAPPLE Models SCG-48S & SCG-48JD Parts Drawing & List... - Page 24 COMPACT TRACTOR FRONT LOADER GRAPPLE Models CTMG-48S & CTMG-48JD Parts Drawing & List...
- Page 25 NOTES...
- Page 26 1. PART NUMBER 2. PART DESCRIPTION 3. MODEL NUMBER CTMG-48S 4. NAME OF ITEM CTMG-48JD SCG-48S MAKE EVERY DAY A HOLIDAY SCG-48JD FROM ACCIDENTS! MAY 2022 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-TA014-OG...
