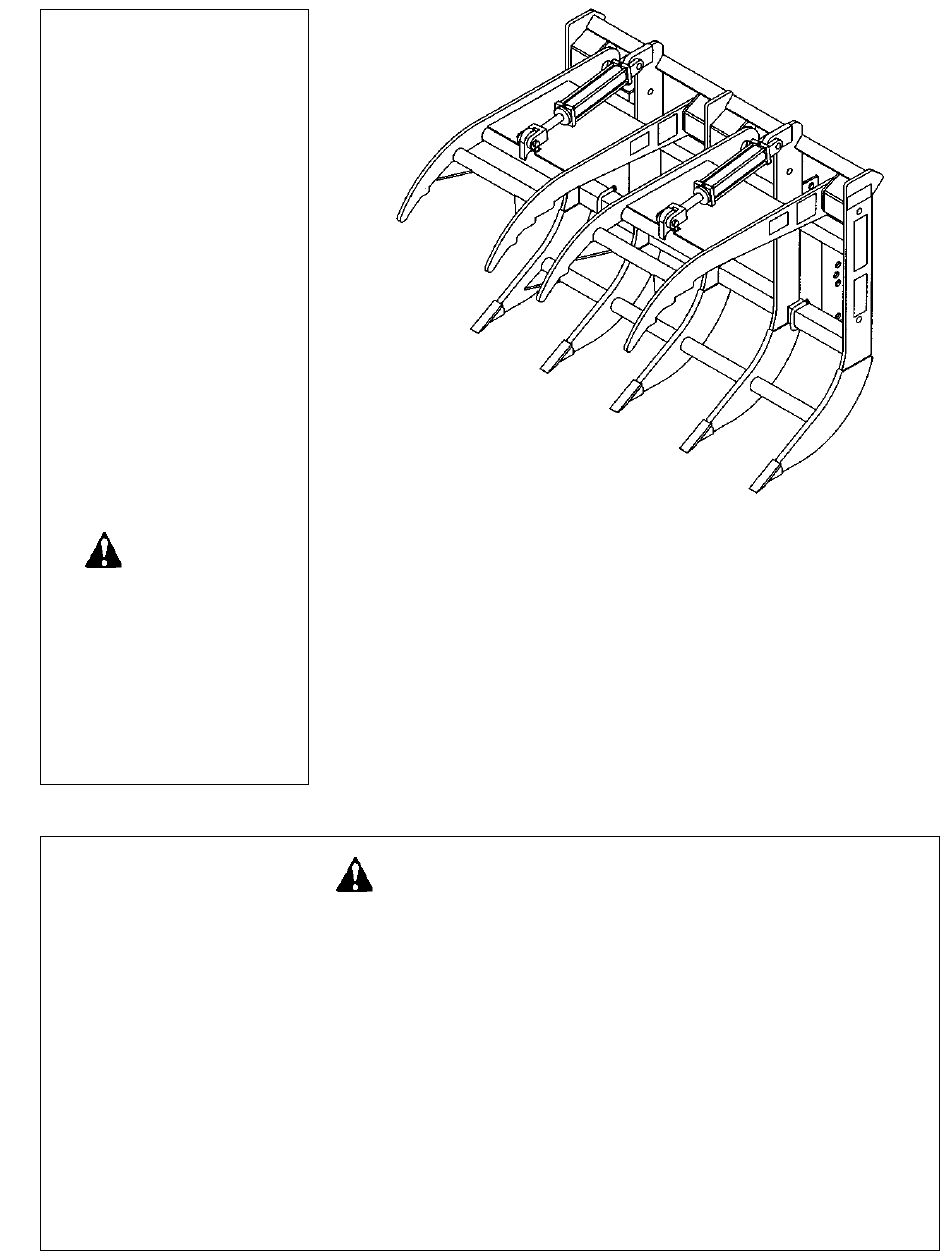

OWNER'S /

OPERATOR'S

MANUAL

MODEL NO.'s

FLGR-262

SSGR-262

FLGR-277

SSGR-277

SSGR-84

CAUTION

For Safe Operation

Read Rules And

Instructions Carefully

SI NO LEEINGLES, PIDA AYUDA

A AIGUIEN QUE SI LO LEA

PARA QUE LE TRADUZCA LAS

MEDIDAS DE SEGURIDAD.

THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD

1. Select an area for assembly that is clean and free of any

debris which might cause persons working on the

assembly to trip.

2. Do not lift heavy parts or assemblies. Use crane, jack,

tackle, fork trucks or other mechanical devices.

3. Preview the assembly instructions in your operator's

manual before proceeding further.

4. If the assembly instructions call for parts or assemblies to

be blocked up, use only blocking material that is in good

condition and is capable of handling the weight of the

assembly to be blocked. Also insure that the blocking

material is on a clean, dry surface.

5. Never put hands, or any part of body, under blocked up

assemblies if at all possible.

Tractor Front Loader

Safety Instructions

Tractor Preparation

Operating Instructions

CAUTION

BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE

Grapple Rake for

Skid Steer and

6. After completing assembly, thoroughly inspect the

machine to be sure that all nuts, bolts, hydraulic fittings

or any other fastened assemblies have been thoroughly

tightened.

7. Before operating the machine, thoroughly read the

operation section of your operator's manual.

8. Before operating, read the maintenance section of your

operator's manual to be sure that any parts requiring

lubrication, such as gearboxes, are full, to avoid any

possible damage.

9. Before operating equipment – If you have any

questions regarding the proper assembly or

operation, contact your dealer or representative.

Assembly & Mounting

Maintenance

Repair Parts

Table of Contents

Need help?

Do you have a question about the SSGR-84 and is the answer not in the manual?

Questions and answers

Summary of Contents for Worksaver SSGR-84

Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s FLGR-262 SSGR-262 FLGR-277 SSGR-277 SSGR-84 Grapple Rake for CAUTION Skid Steer and For Safe Operation Read Rules And Tractor Front Loader Instructions Carefully SI NO LEEINGLES, PIDA AYUDA Safety Instructions Assembly & Mounting A AIGUIEN QUE SI LO LEA...
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model and serial number of your Grapple Rake...
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
Page 6 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Know your controls and how to stop the power unit and engine quickly in an emergency. READ THIS MANU- AL AND THE ONE PROVIDED WITH YOUR TRACTOR AND LOADER, OR SKID STEER. Start power unit only when properly seated in the operator’s seat. Starting a power unit in gear can result in injury or death.
Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Before you operate any equipment, check over all pins, bolts and connections to be sure all are securely in place. Replace any damaged or worn parts immediately. Check that this attachment is securely mounted to the loader. Failure to install lock pins or have the latching mechanism engaged could result in injury or death.
Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the power unit, loader, and load. Drive slowly. Operate loader from operator’s seat only. Remain at controls until operating cycle is complete. Use extreme care when working on inclines and hillsides.
Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the power unit and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the brakes, and remove the ignition keys.
Page 11 SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation, or when unhooking, stop the tractor, set the brakes, disengage the PTO, relieve all hydraulic pressure, shut off the engine and remove the ignition keys. Hoses for the attachment must be disconnected before the quick attach is disengaged. Pulling the attachment with the hoses could result in damage to the prime mover or the attachment.
Page 12: Safety Signs
SAFETY SIGNS REMEMBER: If Safety Signs have been damaged, removed, become illegible or parts replaced with- out Signs, new Safety Signs must be applied. New Safety Signs are available from your authorized distributor or factory. BE CAREFUL! Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure washer;...
Page 13: Preparation Instructions
This unit is shipped almost completely assembled. the universal quick-attach attachment connection. Refer to the “exploded views” on pages 20-26 of this The model SSGR-84 is designed for skid steer units manual. with a door on the cab. Lower height of this grapple Carefully follow instructions for final assembly.
Page 14 NOTE: The Ford (New Holland) models 7109, 7209, The model SSGR-262, SSGR-277, and SSGR-84 have 7210, 7309, 7310 and 7410 Pin Type Loaders require a universal quick-attach bracket welded on the frame. No special brackets.
Page 15 INSTRUCTIONS (continued) MODELS SSGR-262, SSGR-277, AND SSGR-84 ATTACHMENT TO PRIME MOVER —————————————————— WARNING Improper attachment of the Grapple Rake could result in injury or death. Do not operate this product until you have positive indication that the attachment is securely mounted.
Page 16: Operating Instructions
OPERATING INSTRUCTIONS PRE-OPERATION CHECKLIST Make sure all operators have read the Owner’s Manual and are familiar with the instructions and the safety rules of operation. (OWNER/OPERATOR RESPONSIBILITY) ____ Review and follow safety rules and safety signs on pages 3 through 11. WARNING ____ Check that Grapple Rake is properly and securely Do not operate this product until you have positive...
Page 17 OPERATING INSTRUCTIONS (continued) HANDLING MATERIAL Grapple Rake Limitations (continued) Approach the material to be handled with the grapple more complete burning and final land clearing. The rake frame is not designed to bulldoze out stumps or buried clamp open, when the rake frame contacts the material, rocks.
Page 18: Owner Maintenance & Lubrication
OWNER SERVICE MAINTENANCE TRANSPORTING WARNING CAUTION Always stop the power unit, set brake, shut off When traveling on public roads, whether at night or engine, remove key, and lower loader to ground during the day, use accessory light and devices for before attempting to service.
Page 19: Trouble-Shooting Guide
TROUBLE-SHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Grapple Rake 1. No or insufficient oil flow. Remote hydraulic connection fittings not clamp will not compatible. Check for proper fitting. operate. Hydraulic system may not be supplying rated pressure. Consult your dealer. Hydraulic system may not be delivering its rated volume of oil due to wear.
Page 20 TROUBLE-SHOOTING GUIDE (continued) PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Material slips from 1. Clamp arms not positioned cor- Reposition clamp arms. Grapple Rake rectly on material. grasp. Operate hydraulic cylinder to clamp 2. Not firmly clamped by hydraulic cylinder. tighter. 3. Hydraulic system has leak – allow- Find leak and repair (could be O-Ring in ing clamping pressure to back off.
Page 21: Parts Lists
OPTIONAL STAND KIT (#811395)
Page 22 FRONT LOADER GRAPPLE PARTS DRAWING MODELS FLGR-262 & FLGR-277...
Page 23 FRONT LOADER GRAPPLE PARTS LIST MODELS FLGR-262 & FLGR-277...
Page 24 SKID STEER GRAPPLE PARTS DRAWING MODELS SSGR-262 & SSGR-277...
Page 25 SKID STEER GRAPPLE PARTS LIST MODELS SSGR-262 & SSGR-277...
Page 26 SKID STEER GRAPPLE PARTS DRAWING MODEL SSGR-84...
Page 27 SKID STEER GRAPPLE (SSGR-84) HYDRAULIC DIAGRAM & PARTS LIST...
Page 28 2. PART DESCRIPTION MODEL NO.’s 3. MODEL NUMBER 4. NAME OF ITEM FLGR-262 SSGR-262 FLGR-277 MAKE EVERY DAY A HOLIDAY SSGR-277 FROM ACCIDENTS! SSGR-84 OCTOBER 2019 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-SSA003-OG...
