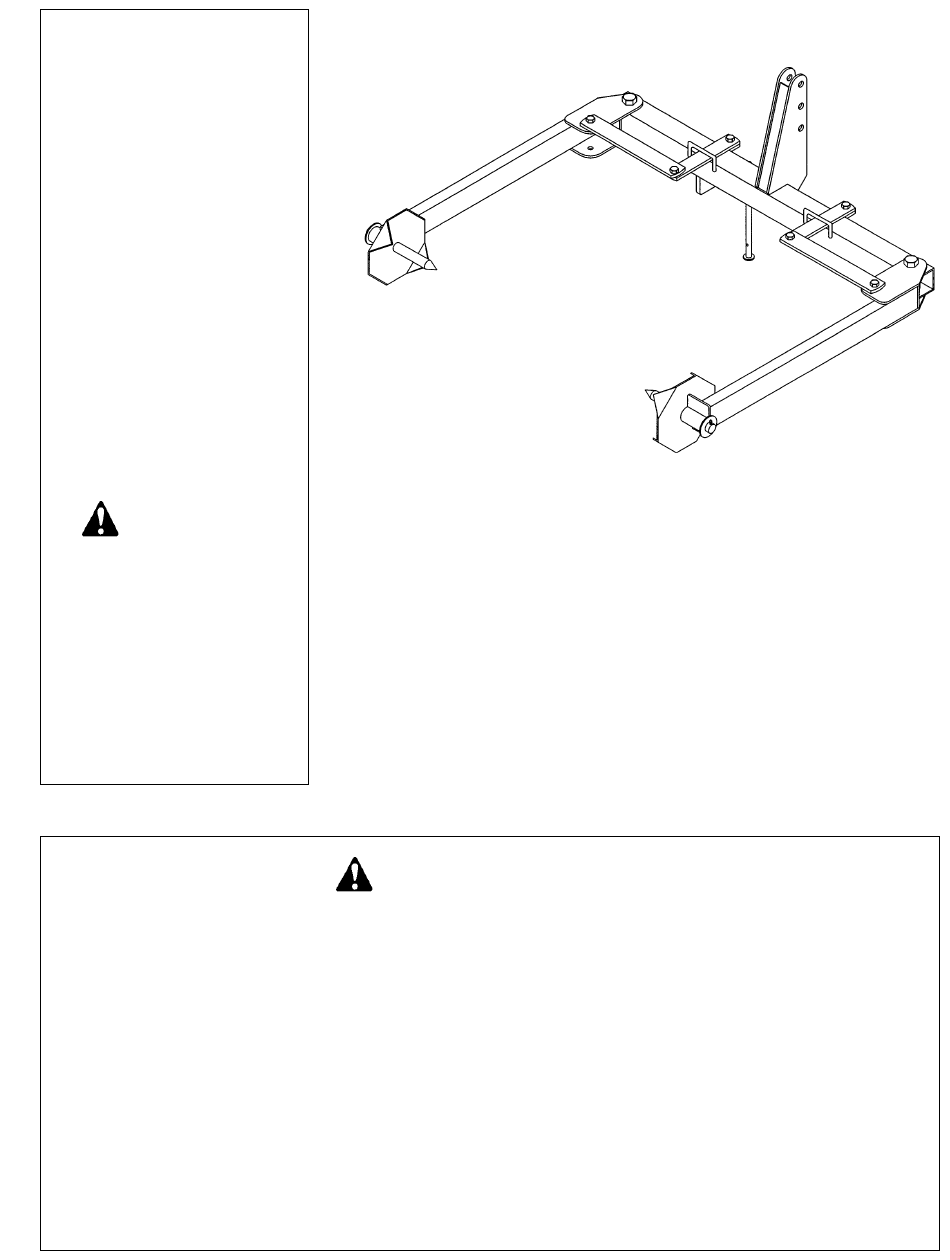

Worksaver HHU-2045 Owner's/Operator's Manual

Hay handler / unroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.
HHU-2045
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
HAY HANDLER / UNROLLER
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
Assembly & Mounting
Maintenance
Repair Parts
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
