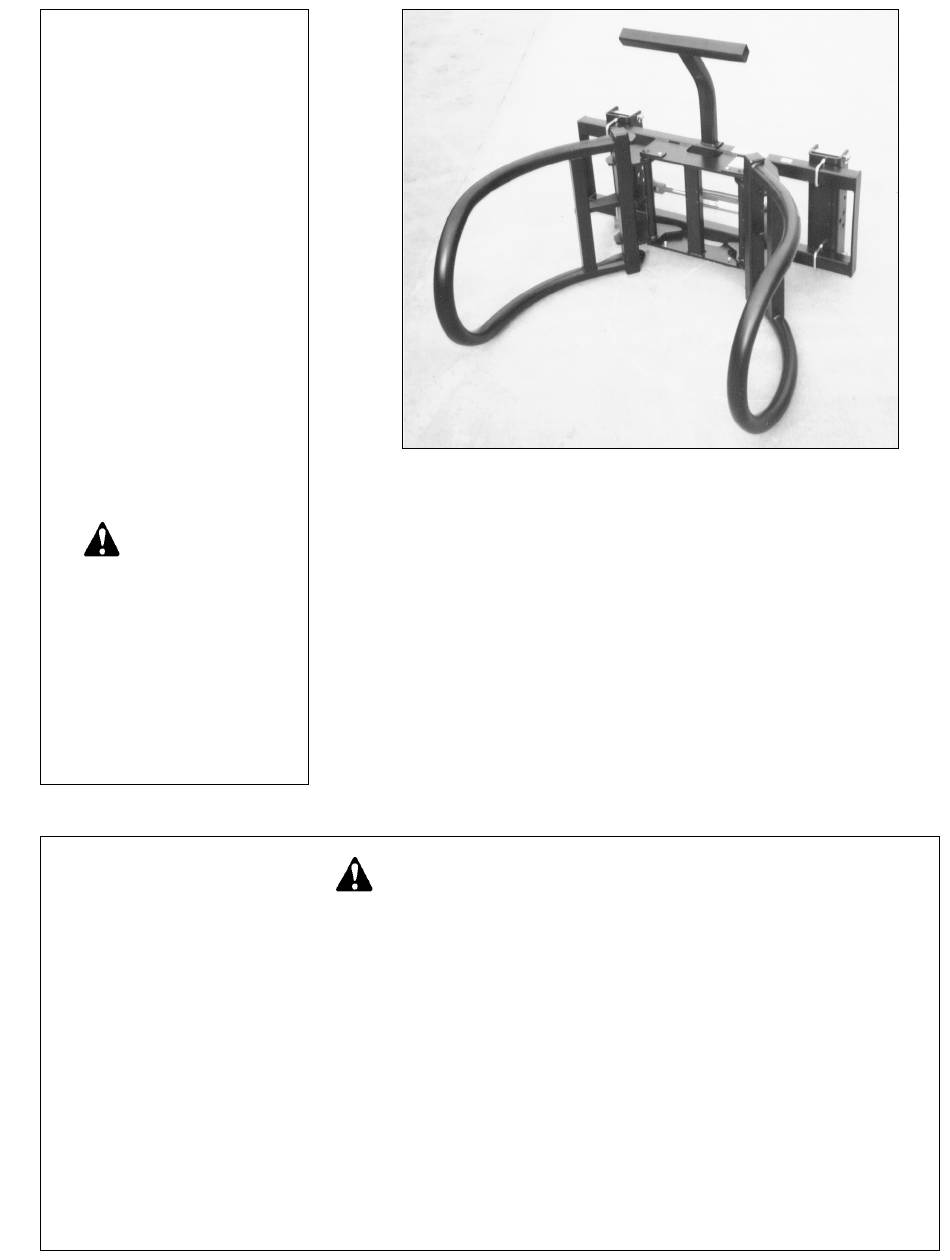

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
UBH-2072
VBH-2072
SSBH-2072
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
BALE HAND
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
Assembly & Mounting
Maintenance
Repair Parts
Advertisement
Related Manuals for Worksaver VBH-2072
Summary of Contents for Worksaver VBH-2072
- Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s UBH-2072 VBH-2072 SSBH-2072 CAUTION BALE HAND For Safe Operation Read Rules And Instructions Carefully SI NO LEEINGLES, PIDA AYUDA Safety Instructions Assembly & Mounting A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS...
-
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Lubricate the Bale Hand as specified. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Bale Hand here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY... -
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judgement of Worksaver such use affects its performance, stability, or reliability. -
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. - Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
- Page 6 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Start tractor only when properly seated in the tractor seat. Starting a tractor in gear can result in injury or death. Do not mount or dismount the tractor while the tractor is moving. Mount or dismount the tractor only when the tractor and all moving parts are completely stopped.
- Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as being struck by foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe oper- ation.
- Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Be certain the power unit is in neutral or park position before starting engine. Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always lower bucket or attachment to ground, relieve all hydraulic pressure. Remove key when leaving equipment unattended. Park in level area.
- Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
- Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the brakes, and remove the ignition keys.
-
Page 11: Safety Signs
SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation or when unhooking, stop the tractor, set the brakes, shut off the engine, relieve all hydraulic pressure and remove the ignition keys. Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit. Do not park equipment where it will be exposed to livestock for long periods of time. - Page 12 SAFETY SIGNS REPLACING SAFETY SIGNS —————————————————–––––––––––––— 1. Clean the area of application with nonflammable solvent. 2. Wash the same area with soap and water. 3. Allow the surface to fully dry. 4. Remove the backing from the safety sign exposing the adhesive surface. 5.
- Page 13 Be sure tires and rims are in good condition. Inflate tires The Model VBH-2072 Bale Hand is designed for to the proper recommended air pressure. Versatile/Ford/New Holland Model 256, 276 and 9030 Bi- The operator is responsible for the safe operation of this Directional Tractors.
- Page 14 NOTE: The Bale Hand Models VBH-2072 and SSBH- Make sure this part (Ref. #15) is bolted securely to the 2072 have special quick-attach brackets on the Bale Hand frame (Ref.
- Page 15 INSTRUCTIONS (continued) MODEL SSBH-2072 ATTACHMENT TO PRIME MOVER —————————————————— WARNING Improper attachment of the Bale Hand could result in injury or death. Do not operate this product until you have positive indication that the attachment is securely mounted. 1. Position the attachment on a level surface. Figure 3.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS PRE-OPERATION CHECKLIST HANDLING BALE BY ITS END —————————————————— Using the bucket tilt cylinders, adjust the angle of the (OWNER/OPERATOR RESPONSIBILITY) Bale Hand so that the open outer ends of the clamp arms ____ Review and follow safety rules and safety signs on are hanging down 45º... - Page 17 OPERATING INSTRUCTIONS (continued) HANDLE ROUND BALES SAFELY When stacking hay bales or loading vehicles, make —————————————————— sure you are operating in an area AWAY FROM OVER- HEAD WIRES. Improper use of loaders to handle round bales can result in serious injury or death to the tractor/loader operator. This could be caused by the bale rolling back down the loader into the operator’s station.
- Page 18 OPERATING INSTRUCTIONS (continued) TRANSPORTING Check the pins at the ends of the loader arms. Make —————————————————— sure they are locked in place with the linchpins. CAUTION Periodically check all bolts to make sure they are tight. When traveling on public roads, whether at night or Check hydraulic hoses.
-
Page 19: Troubleshooting
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Bale slips from Bale 1. Clamp arms not positioned correctly Reposition clamp arms. Hand grasp. on Bale. 2. Not firmly clamped by hydraulic Operate hydraulic cylinder to clamp cylinder. tighter. 3. Hydraulic system has leak – allow- Find leak and repair (could be O- ing clamping pressure to back off. - Page 20 UBH-2072, VBH-2072 & SSBH-2072 PARTS VIEW...
-
Page 21: Parts Lists
UBH-2072, VBH-2072 & SSBH-2072 PARTS LIST... - Page 22 Please work, drive, play, and live each day with care and concern for your safety and that of your family and fellow citizens. MARCH 2013 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-HH015-OG...
