Worksaver UBH-2072R Owner's/Operator's Manual

Bale hand & rotating bale hand
Hide thumbs Also See for UBH-2072R:

Advertisement

Quick Links

Download this manual

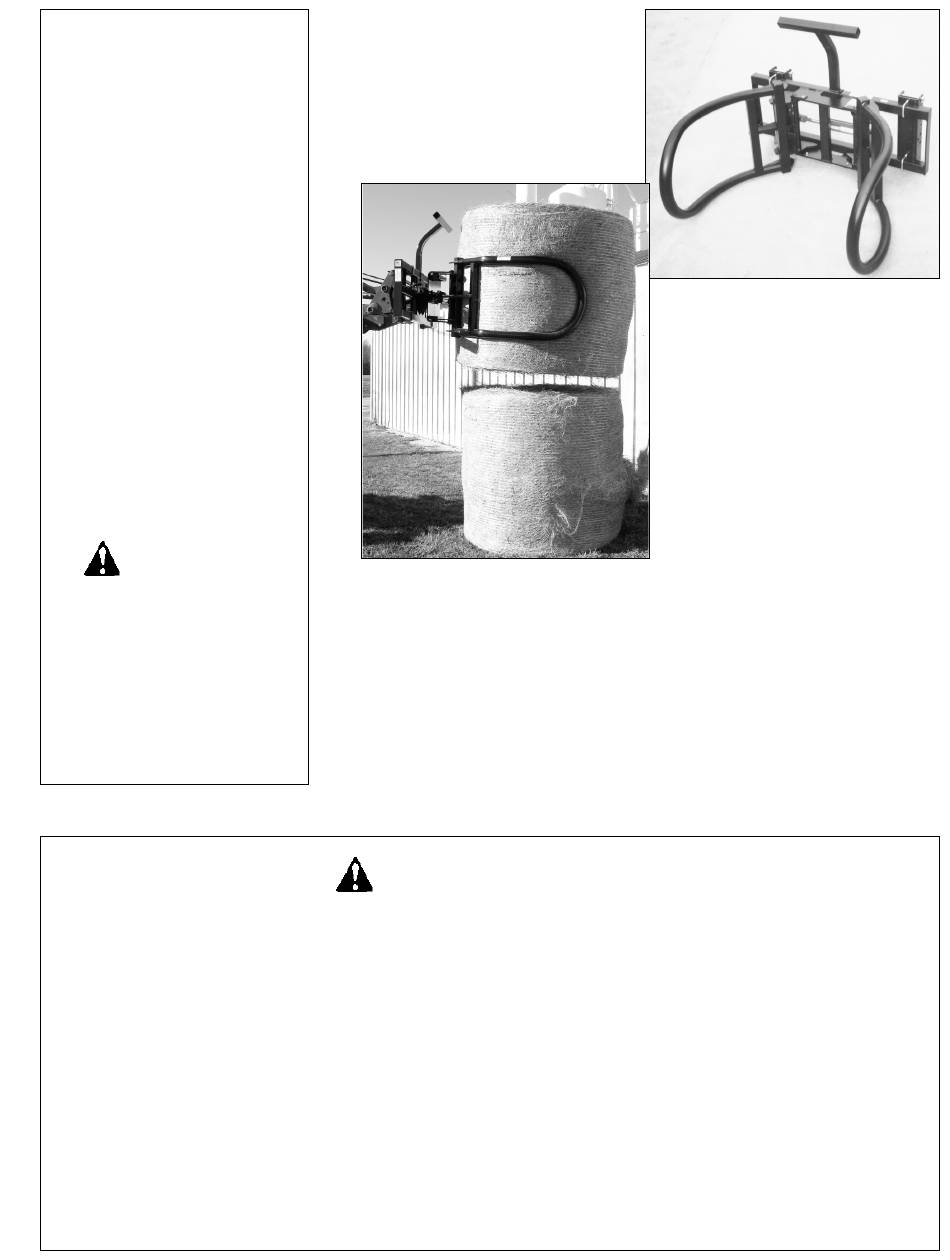

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
UBH-2072
SSBH-2072
UBH-2072R
SSBH-2072R
JDBH-2072R
GBH-2072R
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
ROTATING BALE HAND
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
BALE HAND
BALE HAND &
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
ROTATING
BALE HAND
Assembly & Mounting
Maintenance
Repair Parts

Advertisement

loading
Need help?

Need help?

Do you have a question about the UBH-2072R and is the answer not in the manual?

Questions and answers

Related Manuals for Worksaver UBH-2072R

Summary of Contents for Worksaver UBH-2072R

  • Page 1 OWNER’S / BALE HAND OPERATOR’S MANUAL MODEL NO.’s UBH-2072 SSBH-2072 UBH-2072R SSBH-2072R JDBH-2072R ROTATING GBH-2072R BALE HAND CAUTION BALE HAND & For Safe Operation Read Rules And ROTATING BALE HAND Instructions Carefully SI NO LEEINGLES, PIDA AYUDA Safety Instructions Assembly & Mounting...

  • Page 2: Table Of Contents

    Like all mechanical products, it will require cleaning and upkeep. Lubricate the Bale Hand as specified. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Bale Hand here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...

  • Page 3: Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judgement of Worksaver such use affects its performance, stability, or reliability.

  • Page 4: Safety Information

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
  • Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 6 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Start tractor only when properly seated in the tractor seat. Starting a tractor in gear can result in injury or death. Do not mount or dismount the tractor while the tractor is moving. Mount or dismount the tractor only when the tractor and all moving parts are completely stopped.
  • Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as being struck by foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe oper- ation.
  • Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Be certain the power unit is in neutral or park position before starting engine. Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always lower bucket or attachment to ground, relieve all hydraulic pressure. Remove key when leaving equipment unattended. Park in level area.
  • Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
  • Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the brakes, and remove the ignition keys.

  • Page 11: Safety Signs

    SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation or when unhooking, stop the tractor, set the brakes, shut off the engine, relieve all hydraulic pressure and remove the ignition keys. Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit. Do not park equipment where it will be exposed to livestock for long periods of time.
  • Page 12 SAFETY SIGNS REPLACING SAFETY SIGNS —————————————————–––––––––––––— 1. Clean the area of application with nonflammable solvent. 2. Wash the same area with soap and water. 3. Allow the surface to fully dry. 4. Remove the backing from the safety sign exposing the adhesive surface. 5.
  • Page 13 AND PREPARATION —————————————————— Be sure your tractor and loader, or skid steer are The Model UBH-2072 and the UBH-2072R Bale Hand in good condition. Read all the safety precautions attachments are designed to fit most farm tractor double- and make sure all equipment operators are familiar cylinder front-end loaders.
  • Page 14 ASSEMBLY OF LIFT BRACKETS – UBH-2072 & UBH-2072R ONLY NOTE: The Bale Hand Models SSBH-2072, SSBH- 2072R, JDBH-2072R, and GBH-2072R have special quick-attach brackets on the frame. No lift channel Assemble the two lift brackets (Ref.
  • Page 15 INSTRUCTIONS (continued) ASSEMBLY NOTE: For the ROTATING 2072R Models, the hydraulic (continued) —————————————————— fittings are supplied and installed in the ports of the 3” x 10” hydraulic cylinder. The direction of the fittings is The Bale Hand Models have a bolt-on anti-roll back important –...
  • Page 16 INSTRUCTIONS (continued) MODEL SSBH-2072 & SSBH-2072R ATTACHMENT TO PRIME MOVER —————————————————— WARNING Improper attachment of the Bale Hand could result in injury or death. Do not operate this product until you have positive indication that the attachment is securely mounted. 1.
  • Page 17 INSTRUCTIONS (continued) 4. Raise loader and retract tilt cylinders until latch MODEL GBH-2072R closes. ATTACHMENT TO PRIME MOVER —————————————————— 5. Lower attachment and shut off engine. Installation is The Model GBH -2072R is specifically designed for trac- now complete. tor front loaders with the Euro or Global bucket quick- change system.
  • Page 18 INSTRUCTIONS (continued) MODEL JDBH-2072R ATTACHMENT TO PRIME MOVER —————————————————— The Bale Hand Model JDBH-2072R is specifically designed for John Deere 400 and 500 style carriers. NOTE: Procedure is the same for all attachments. Bucket attachment shown. ATTACHING 1. Extend bucket tilt cylinders to angle attaching brackets forward.

  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS PRE-OPERATION CHECKLIST HANDLING BALE BY ITS END —————————————————— Using the bucket tilt cylinders, adjust the angle of the (OWNER/OPERATOR RESPONSIBILITY) Bale Hand so that the open outer ends of the clamp arms ____ Review and follow safety rules and safety signs on are hanging down 45º...
  • Page 20 OPERATING INSTRUCTIONS (continued) ROTATING THE BALE When stacking hay bales or loading vehicles, make sure you are operating in an area AWAY FROM OVER- Generally, round bales are being rotated to stack them HEAD WIRES. on end for storage or loading them on trucks or trailers. Once the bale is properly clamped, lift the bale and DANGER back away from the stack of bales or any other object that...
  • Page 21 OPERATING INSTRUCTIONS (continued) TRANSPORTING Check the pins at the ends of the loader arms. Make —————————————————— sure they are locked in place with the linchpins. CAUTION Periodically check all bolts to make sure they are tight. When traveling on public roads, whether at night or Check hydraulic hoses.

  • Page 22: Troubleshooting

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Bale slips from Bale 1. Clamp arms not positioned correctly Reposition clamp arms. Hand grasp. on Bale. 2. Not firmly clamped by hydraulic Operate hydraulic cylinder to clamp cylinder. tighter. 3. Hydraulic system has leak – allow- Find leak and repair (could be O- ing clamping pressure to back off.
  • Page 23 TROUBLE-SHOOTING GUIDE (continued) PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Bale Hand will not 1. No or insufficient oil flow. Remote hydraulic connection fittings not operate. compatible. Check for proper fitting. Hydraulic system may not be supplying rated pressure. Consult your dealer. Hydraulic system may not be delivering its rated volume of oil due to wear.
  • Page 24 UBH-2072 & SSBH-2072 PARTS VIEW NON-ROTATING BALE HAND...

  • Page 25: Parts Lists

    UBH-2072 & SSBH-2072 PARTS LIST NON-ROTATING BALE HAND...
  • Page 26 SSBH-2072R, JDBH-2072R & GBH-2072R PARTS VIEW...
  • Page 27 SSBH-2072R, JDBH-2072R & GBH-2072R PARTS LIST...
  • Page 28 HYDRAULIC DIAGRAM FOR NON-ROTATING BALE HAND MODELS NOTE: For this model, hoses and fittings are supplied by the customer.
  • Page 29 PARTS DRAWING & LIST FOR ROTATING BALE HAND MODELS DIAGRAM FOR HYDRAULIC CONNECTION FOR POWER UNITS EQUIPPED WITH 2 PAIR REMOTE HYDRAULIC OUTLETS...
  • Page 30 PARTS DRAWING & LIST FOR ROTATING BALE HAND MODELS DIAGRAM FOR HYDRAULIC CONNECTION FOR POWER UNITS EQUIPPED WITH ONLY 1 PAIR REMOTE HYDRAULIC OUTLETS (MOST SKID STEERS)
  • Page 31 NOTES...
  • Page 32 Please work, drive, play, and live each day with care and concern for your safety and that of your family and GBH-2072R fellow citizens. APRIL 2016 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-HH015-OG...
