Sunny Health & Fitness NO.012-S User Manual

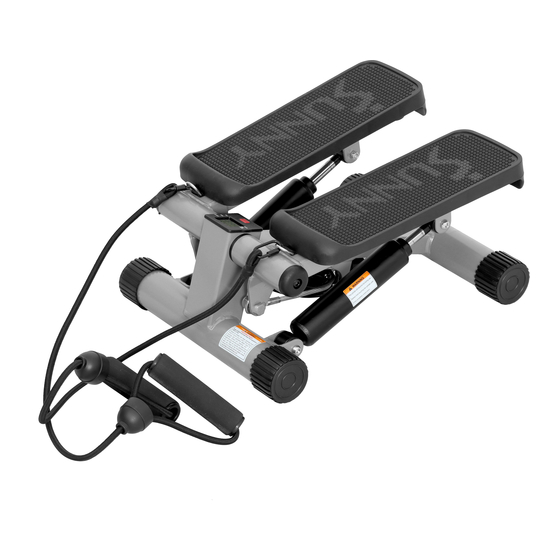

Smart mini stepper with exercise bands
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SMART MINI STEPPER WITH
EXERCISE BANDS
NO. 012 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NO.012-S and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness NO.012-S

Summary of Contents for Sunny Health & Fitness NO.012-S

  • Page 1 SMART MINI STEPPER WITH EXERCISE BANDS NO. 012 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM THANK FOR YOUR PURCHASE Description Spec. Qty. Description Spec. Qty. Main Frame Thank You Card CR2032 Exercise Band Battery Manual Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓...

  • Page 4: Battery Safety Warning

    BATTERY SAFETY WARNING NOTES: 1) Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. 2) Even used batteries may cause severe injury or death. 3) Call a local poison control center for treatment information.
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1 Remove the Main Frame (No. 10) from the box. Lift the Right Pedal (No. 32) up with your hand and ensure that Cable (No.
  • Page 6 MAINTENANCE & ADJUSTMENT GUIDE ADJUSTING THE STEPPING HEIGHT Turn the Adjustment Knob (No. 11) clockwise to increase the stepping height. Turn the Adjustment Knob (No. 11) counter-clockwise to decrease the stepping height. NOTE: Before turning the adjustment knob, you need to lift one pedal of the Left or Right Pedals (No.

  • Page 7: Maintenance & Care Instructions

    MAINTENANCE & CARE INSTRUCTIONS 1. If the stepper screeches during exercise, please discontinue use and do the following: loosen the screw located on the U-Shaped iron then loosen the cable as shown in the picture below. Next, lubricate both the U-Shaped iron and cable to improve the sliding condition.

  • Page 8: Changing The Battery

    CHANGING THE BATTERY BATTERY BATTERY WIRE INSERTING HOLE BATTERY SEAT 1. Remove Meter (No. 12) from Main Frame (No. 10) and disconnect the link wire of Sensor (No. 13) from the Meter (No. 12). 2. Remove the battery from the backside of Meter (No. 12). 3.

  • Page 9: Key Functions

    EXERCISE METER KEY FUNCTIONS: MODE: Press the MODE button to select a function. (Time, Reps/Min, Count, Calorie and Scan) OPERATION PROCEDURES: AUTO ON/OFF: If the steps of the machine are put into motion or the MODE button is pressed, the meter will activate and will remain active during use.

  • Page 10: App Connection

    APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.
  • Page 11 EXPLODED DIAGRAM 30 31...

  • Page 12: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Screw Φ38*6.2*7.5 Bearing Cap Bolt M6*34 Exercise Band Φ38*Φ19.1*12 Bearing Sleeve Buckle Right Pedal Φ8*640 Exercise Band Tube 320*120*82.5 Left Pedal Screw Φ6*335 Screw Cable Φ25*22 Φ16*Φ10.2*1 Stopper Plastic Gasket Power Φ50 Φ17*Φ10.1*6.5 Metallurgy Φ100*Φ8.2*20...
