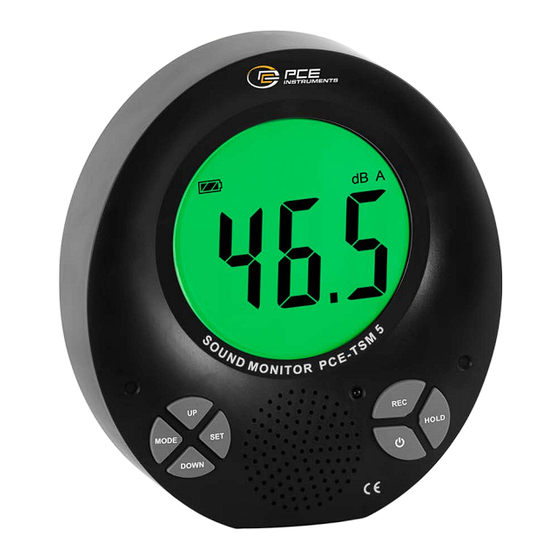

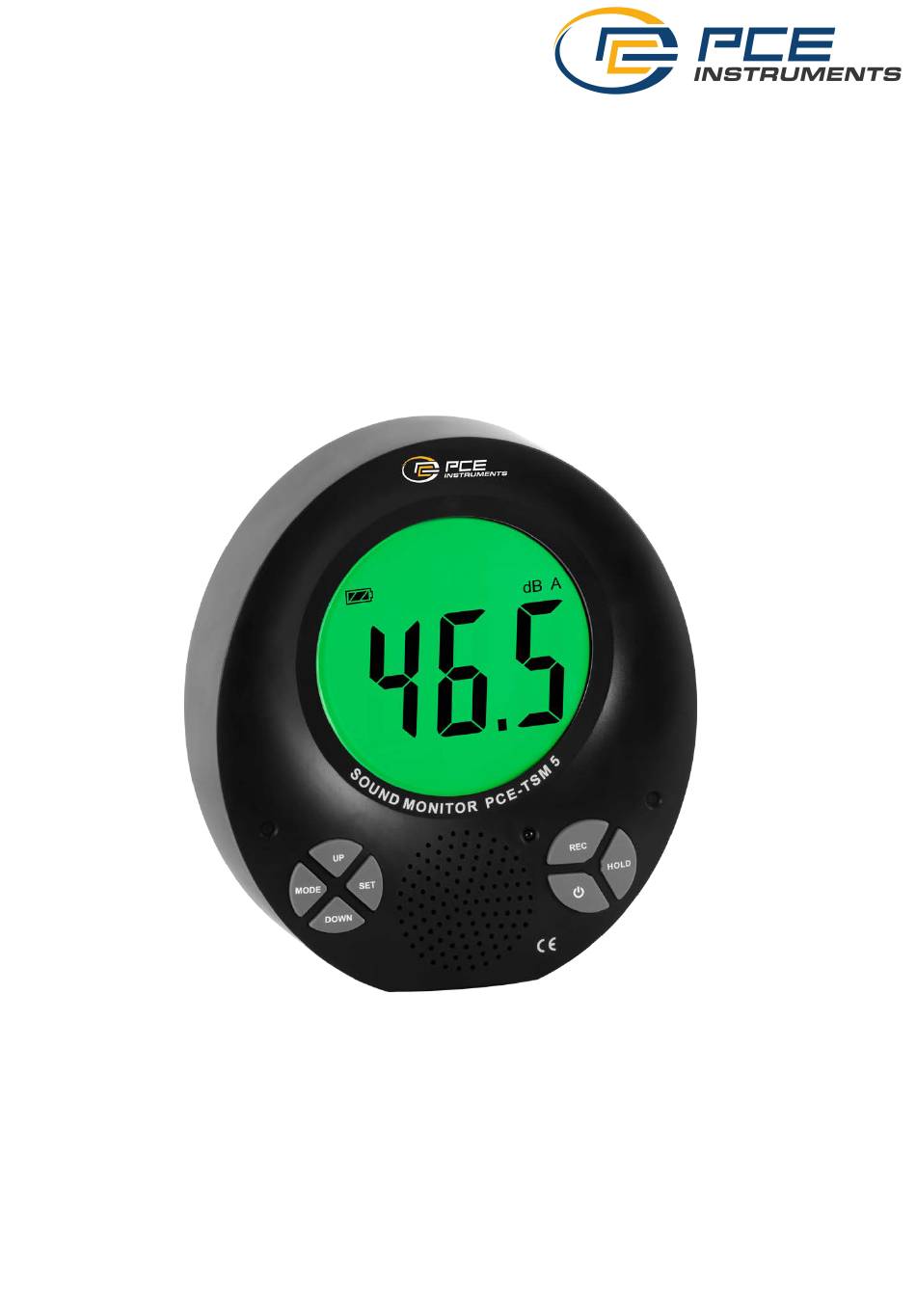

- Page 1 Sound Level Meter PCE-TSM 5 User's Manual Please read this user manual thoroughly before using this unit and keep it properly for your future reference.
-
Page 2: Table Of Contents
Catalogue 1、Safety ................ 2 2、Applications.............. 2 3、Features ..............3 4、Specifications ............4 5、Meter Description ............. 6 6、Display Description ..........7 7、Function Operation Description ....... 7 8、Notes ................11 9、Accessories ............. 13 9、Disposal ..............13... -
Page 3: 1、Safety
1、 Safety Read the following safety information carefully before attempting to operate the meter. ▲ Environment conditions 1． RH≤90％（Non-Condensation） ℉ 2． Operating Temperature: -20～60℃/-4～140 ▲ Maintenance 1． Repairs or servicing should only be performed by qualified personnel. 2． Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument Comply with EMC 2、Applications... -
Page 4: 3、Features
calculation, with high measurement accuracy and quick response. Suitable for noise engineering, quality control, health prevention and control and various environmental sound measurement, such as construction engineering, factory, school, hospital, library, office, home 3、Features large HD color LCD display ... -
Page 5: 4、Specifications
4、Specifications 35dB ～ 135dB Measuring range Dynamic range 50dB 31.5Hz ～ 8KHz Frequency response Accuracy ± 2.0dB Frequency weighting A weighted network Microphone 1/2 inch electret condenser microphone Value update 500ms English, Spanish, French, German, six Languages Japanese, Chinese Recording function ＞... - Page 6 Battery life 60hours Adapter；DC 9V/1A，outer diameter 5.5mm, inner diameter 2.0mm, central Power positive pole AA LR6 1.5V × 6 -20℃ ～ 60℃/-4℉ ～ 140℉,10%RH ～ Operating temperature and humidity 90%RH -20℃ ～ 60℃/-4℉ ～ 140℉,10%RH ～ Storage temperature and humidity 75%RH Size 197*176*49mm...
-
Page 7: 5、Meter Description
5、Meter Description ⑴ Display screen ⑵ Recording hole ⑶ Function keys ⑷ Horn ⑸ Infrared receiving hole ⑹ Function keys ⑺ Noise detection sensor ⑻ Noise correction fine adjustment hole ⑼ Audio output hole ⑽ Adapter jack ⑾ Hanging hole ⑿... -
Page 8: 6、Display Description
6、Display Description ⑴ Volume identification symbol ⑵ Adapter access prompt symbol ⑶ Low voltage prompt symbol ⑷ Noise value display area ⑸ Noise unit symbol ⑹ Screen lock symbol 7、Function Operation Description On/off function;Press the " " button to start the meter, and press the "... - Page 9 Alarm function Yellow light alarm, in the measurement mode, when the measurement value is greater than the reported value, the yellow light flashes continuously. Red light alarm. in measurement mode, when the measurement value is greater than the alarm value set by the red light, the red light is continuously flashing and the voice is reported (please be quiet).
- Page 10 the " " button, and hear the "drop", indicating that the recording begins, release" "the key, and hear the two sounds of "drop" and "drop", indicating the end of the recording.The instrument will automatically broadcast a recording content. Volume adjustment function; in measurement mode, press "...
- Page 11 Light" mode, and press the " " button again to return to the measurement mode. In the alarm value adjustment mode, press " " key to adjust the large value and press " " key to adjust the small value. Broadcast voice selection;...
-
Page 12: 8、Notes
8）Correction method; Open the power switch of the standard sound source (94 dB @ 1 KHZ), close the standard source to the induction hole of the noise detection sensor, and rotate the potentiometer in the adjustment hole on the right side of the instrument to display the LCD as 94.0dB. - Page 13 qualified personnel. Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument Remove the battery when the meter is to be stored for long periods of time to avoid battery leakage. When the battery runs out, the LCD displays the "...
-
Page 14: 9、Accessories
9、Accessories 1 x PCE-TSM 5 sound level meter 1 x 9 V 1 A plug-in mains adaptor 1 x remote control 1 x screwdriver 6 x 1.5 V AA battery 1 x user manual 1 x mounting material 9、Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. - Page 15 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) España Deutschland France Tel. : +34 967 543 548 Tel.: +49 (0) 2903 976 99 0...
