PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@pce-instruments.com
www.pce-instruments.com/english
www.pce-instruments.com

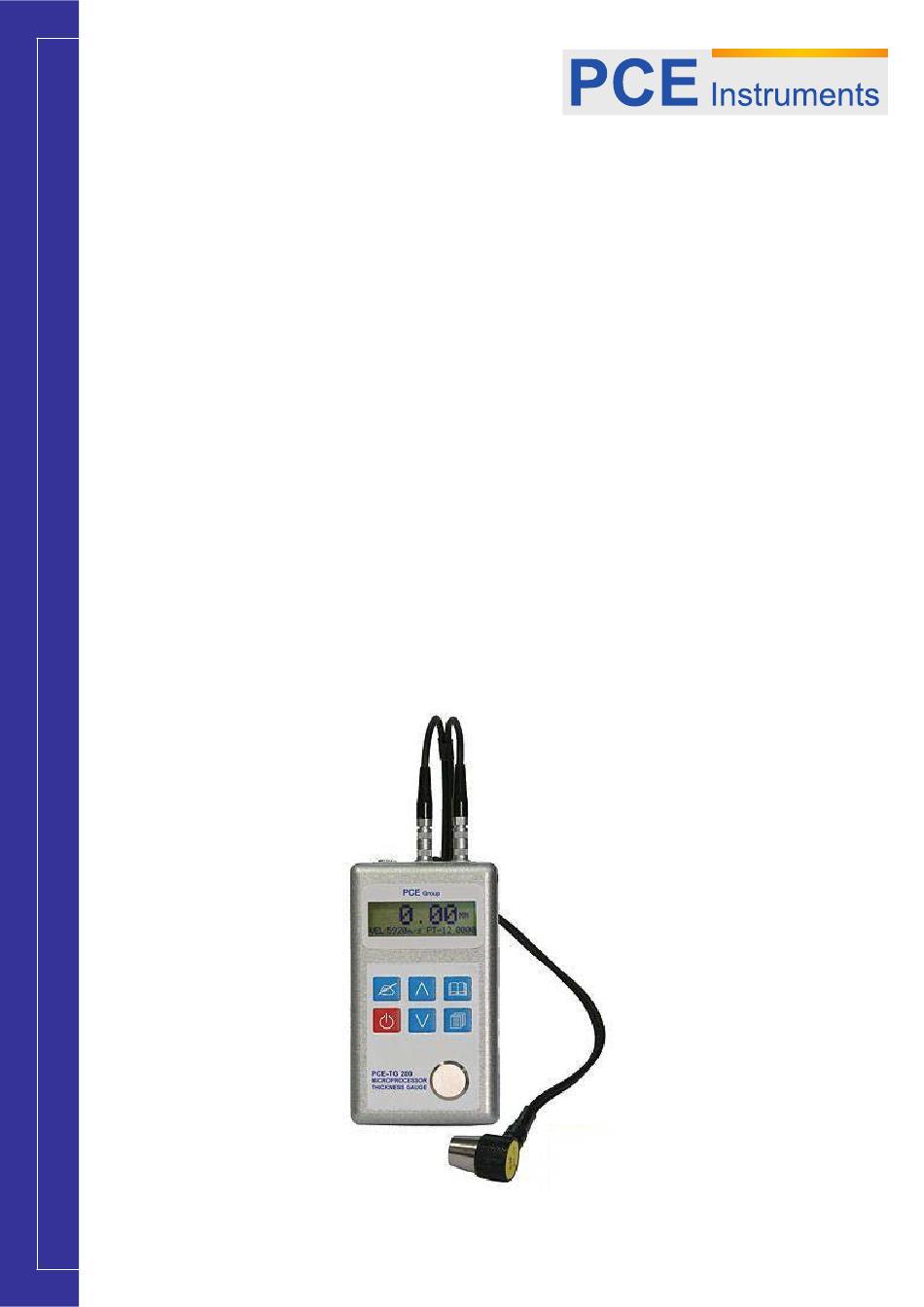

INSTRUCTION MANUAL
PCE-TG200
Material-Thickness-Meter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-TG200
Summary of Contents for PCE Instruments PCE-TG200
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
CONTENTS 1. Switch on ................................3 2. Backlight on / off ............................... 3 3. Measurement ..............................3 4. Calibration ................................. 3 5. Set-up ................................. 3 a. Measurement ..............................4 b. Velocity Rate ..............................4 c. Probe Setting ..............................4 d. Resolution ..............................4 e. -
Page 3: Switch On
- ON/OFF - ESC - Change Setting - Calibration - Menu - Confirm - Store Data - Increase Symbolized Number - Backlight Switch - Re-read Data 1. Switch on Press key to turn on the gauge. The gauge will consecutively display - Logo - Serial No. -
Page 4: A. Measurement
8. Print Out 9. Default a. Measurement - No Contents b. Velocity Rate b-1. Setting velocity - Press key into“ Setting velocity ”state - Press to change velocity rate - Press to enter/confirm b-2. Velocity measurement - Measuring the sample which thickness is known - Press key into“... -
Page 5: E. Memory
e. Memory e-1. Location The gauge has a memory capacity of 4000 measurements which location can be from 0000 to 3999. After taking every measurement, press key to store the value with a location number. You can also select an initial number for beginning to store the value and the next number will be followed automatically by following measurements. -
Page 6: I. Default
i. Default When you select “Default” state, the gauge will recover the default parameter. 6. Data print-out (optional) This procedure is almost like “Print”, but mini-printer replaced by PC. - Press key into “Print” state - Press to select desired initial and end location number. - Press key to enter / confirm The stored value in memory will transfer into PC. -
Page 7: Appendix
8. Appendix Velocity rate of various materials Material V (m/s) V (in/us) Aluminium 6400 0.252 Brass 4700 0.185 Copper 5010 0.197 Glass 5260-6120 0.207-0.241 Lucite 2680 0.105 Nickel 6040 0.237 Nylon 2730 0.103 Polyethylene 1950 0.070 Polystyrene 2350 0.092 Steel 5920 0.233 Stainless Steel...
