Manual

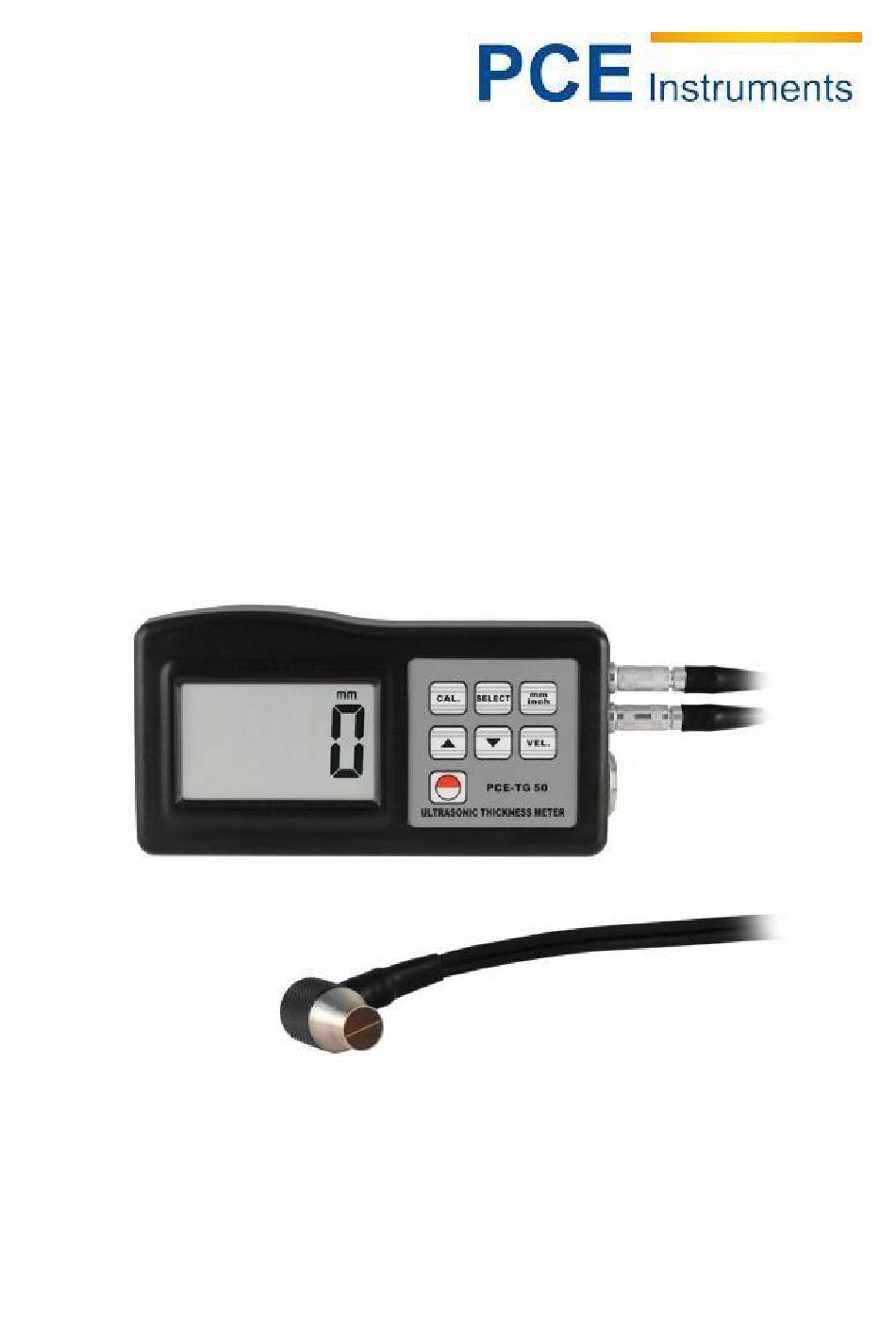

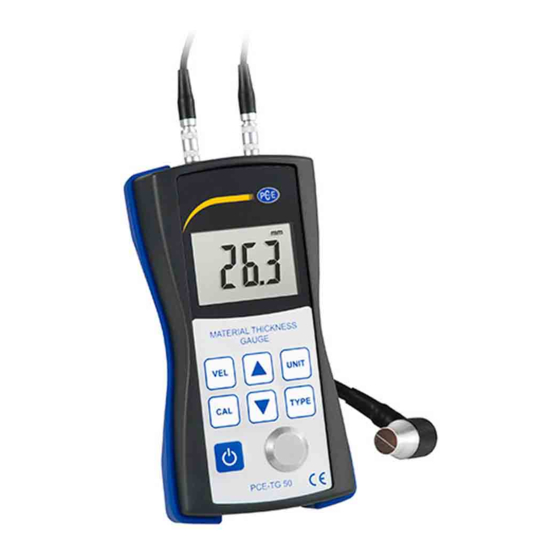

Material Thickness Meter PCE-TG 50
Version 1.0
Date of creation: 03.03.2015
Date of last change: 03.03.2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-TG 50
Summary of Contents for PCE Instruments PCE-TG 50
- Page 1 From Outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@industrial-needs.com www.pce-instruments.com/us www.pce-instruments.com/english www.industrial-needs.com Manual Material Thickness Meter PCE-TG 50 Version 1.0 Date of creation: 03.03.2015 Date of last change: 03.03.2015...
- Page 2 Safety notes ......................3 Specification ......................3 System description ....................4 Material selection ....................4 Calibration ....................... 5 Measurement ......................5 Measurement with adjusted velocity speed .................5 Changing the batteries ................... 5 Contact ........................6 PCE Instruments UK ........................6 PCE Americas ..........................6...
- Page 3 Thank you for purchasing a thickness gauge from PCE Instruments. The PCE-TG 50 is a thickness gauge which stands out because of its small dimensions, the low weight and its comfortable and easy use. You will be able to use it many years due to its robust casing by simply following this manual.
- Page 4 Manual System description Calibration button Material select button Ultrasonic sensor mm / inch button Minus button Calibration standard Plus button Sensor connection Display Velocity button Power button Material selection Push the power button on the device in order to switch it on. After doing so please push material selection button and the button will either show “cdxx”...
- Page 5 Manual Calibration Put some contact paste on the calibration standard and push the calibration button. The display will show “CAL” now. Now press the sensor on the calibration standard. If the sensor is applied correctly you will see “((•))” on the display. After that the display will show “CAL” and “5 mm”. If the displayed value is stable press the calibration button again in order to accept the value and to return to the measuring mode.
- Page 6 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
