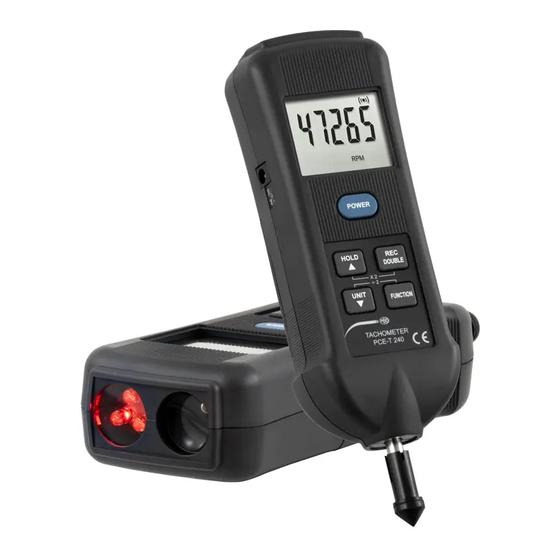

- Page 1 User Manual Handheld Tachometer PCE-T 240 User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 10 August 2022 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Highest and lowest measured value (REC) ..............6 Settings ....................6 Automatic power-off ......................6 Changing the temperature unit ..................6 Replacing the batteries ................ 6 RS232 interface ..................7 Contact ....................8 10 Disposal ....................8 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
-148.0 ... -58.1 ... °F Resolution 0.1 °F Accuracy ±(0.4 % of rdg. +1.8 °F) Temperature (PT1000) Measurement range -10.0 ... 70.0 °C, 414.0 ... 158.0 °F Resolution 0.1 °C, 0.1 °F Accuracy ±1.2 °C, ±2.2 °F © PCE Instruments... -
Page 5: Delivery Scope
207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 in Weight 230 g, 0.5 lb (without batteries) Delivery scope 1 x PCE-T 240 handheld tachometer 1 x measuring tip (outer cone) 1 x hollow measuring tip (inner cone) 1 x measuring wheel... -
Page 6: Device Description
Hollow measuring tip (inner cone) RS232 interface PT1000 temperature sensor connection Thermocouple connection K-type Photo tripod connection Battery compartment cover Reflective tape White LED for optical speed measurement Strobe light with red LEDs Indicator for one revolution Power supply connection © PCE Instruments... -
Page 7: Making A Measurement
The measured value appears on the display. Temperature measurement with a PT 1000 temperature sensor To carry out a temperature measurement, select the "pt" function. Insert a PT 1000 resistance temperature probe into the meter. The measured value is displayed directly. © PCE Instruments... -
Page 8: Freezing Measured Value (Hold)
When the function is switched off, the values are reset. Replacing the batteries To insert or replace the batteries, first switch off the meter. Then open the battery compartment and replace the batteries. Ensure correct polarity of the batteries. Use four 1.5 V AA batteries. © PCE Instruments... -
Page 9: Rs232 Interface
An RS232 guide with the following connection is required to connect the meter to a serial PC output. The 16-digit streams are displayed as follows: D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status: RS232 format: 9600, N, 8, 1 © PCE Instruments... -
Page 10: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 11 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
