Megmeet MC5000-0016ERN-T User Manual

MC5000-0016ERN-T IO Expansion Module
Thank you for using MC5000 series PLC of Megmeet. Before using the
PLC product, please carefully read this booklet so as to better understand it,
fully use it, and ensure safety.This user manual is to offer you a quick guide
to the design, installation, connection and maintenance of MC5000 series IO
extension module.This quick reference manual is used for the design,
installation, connection and maintenance of the MC5000 series IO extension
module. It is convenient for users to consult the required information on the
spot, as well as the introduction of the relevant optional accessories, FAQ,
etc., for easy reference.
This manual for the following members:
MC5000-0016ERN-T
Version: 1.0
Revision date: 2018-12-02
If you need more detailed product information, please refer to MC5000
series PLC user manual ,MStart programming software user manual and
MC5000 series PLC programming reference manual issued by our company.
Consult the supplier if necessary.
1. Appearance and parts name
1.1 Appearance and terminal of module

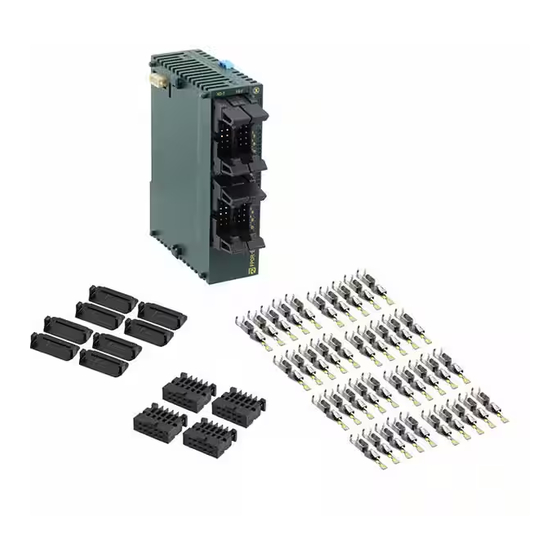

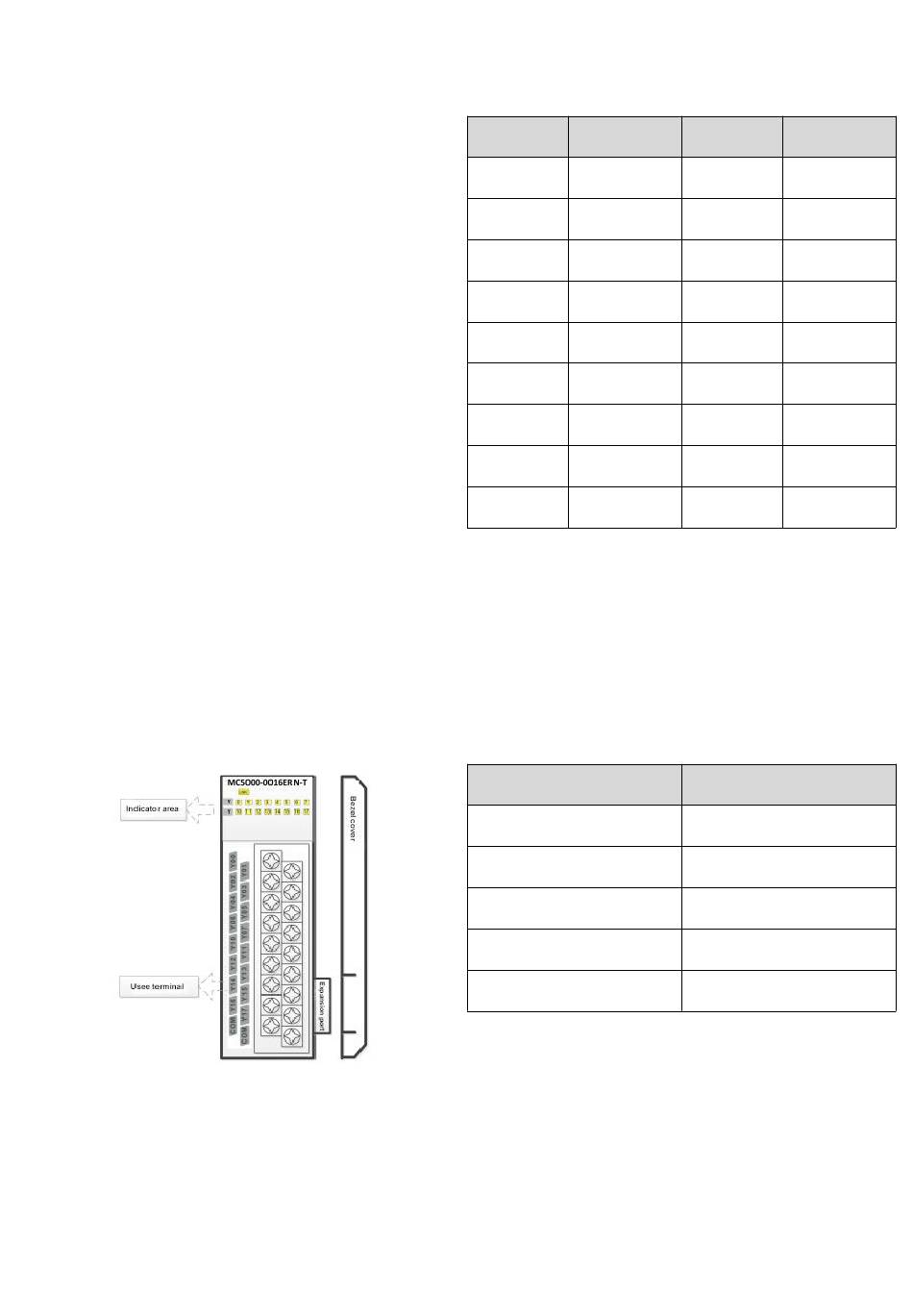

Figure 1-1 Appearance and terminal diagram
The IO terminal of the MC5000-0016ERN-T module is a palisade screw
terminal, which can be used when the user wires directly. PIN is defined as
follows, and the functions are shown in the following table.
User Manual
Table 1-1 terminal definitions
Terminal Single name
Y00 CH1 output
Y02 CH3 output
Y04 CH5 output
Y06 CH7 output
Y10 CH9 output
Y12 CH11 output
Y14 CH13 output
Y16 CH15 output
COM Common port
IO terminal definition of MC5000-0016ERN-T as shown bellow
16-channel Y output

Output common port: COM

2. Model Specification
2.1 Models and main technical indicators
Table 2-1 Technical indicator
Model specification
Appearance size (H×L×W)
Input points
Output points
Connect terminal
24V power consumption current
3. Installation
3.1 Install and fix with DIN slot
The module are installed with DIN slots 35mm wide, and the extension
modules are connected by clips. After the modules are connected to each
other, push the connection card forward to the module and lock the module.
Open the DIN clasp at the bottom of the module and attach the bottom of the
module to the DIN guide rail. Rotate the module close to the DIN guide rail
Terminal Single name
Y01 CH2 input
Y03 CH4 output
Y05 CH6 output
Y07 CH8 output
Y11 CH10 output
Y13 CH12 output
Y15 CH14 output
Y17 CH16 output
COM Common port
Y0~Y17
MC5000-0016ERN-T
102.00 X 34.20 X 103.50 （mm）
0
16
Screw terminal
150mA
1
