Megmeet MC200 Series Quick Start Manual

MC200-2HC High-speed Count Module
User Quick Start Manual
Thank you for using MC200 series PLC. Before using the product,
please carefully read this manual so as to better understand it, fully use it,
and ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC200 series PLC,
convenient for on-site reference.
This manual is for the following MC200 series members:
MC200-2HC High-speed Count Module
Version：V1.4
Revision Date：2010-12-21
BOM Code：R33010003
For detailed product information, please refer to MC200 Series PLC
User Manual , X-Builder Programming Software User Manual , and MC200/
MC100 Series PLC Programming Reference Manual . For ordering the above
user manuals, contact your Megmeet distributor or sales office.

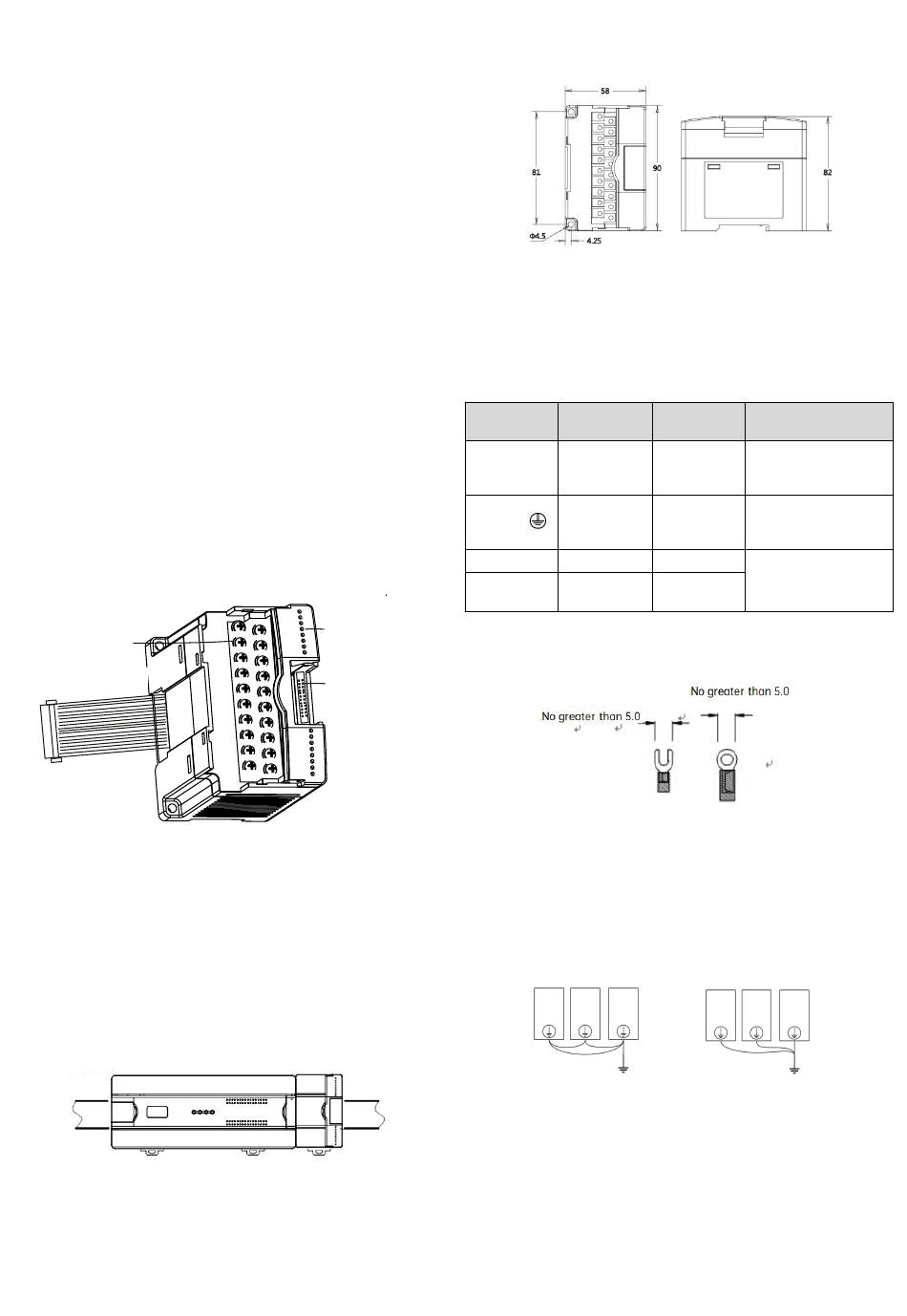

1. Appearance and Part Names
Terminal
Expansion cable
Fig. 1-1 Appearance and part name
2. Installation Description
2.1 Installation method
DIN rail mounting
Generally, you can mount the PLC onto a 35mm-wide rail (DIN). Open
the DIN snap-fit at the bottom of the module and lock the bottom of the
module onto the DIN rail; Rotate module close to the DIN guide rail and close
the DIN snap-fit with a double-checking.
Screw fixing
Fixing the PLC with screws can stand greater shock than DIN rail
mounting. M3 screws can be chosen to fix the PLC onto the backboard of the
electric cabinet through the mounting holes on PLC enclosure, as the
following figure.
2.2 Cable connection and specification
It is recommended to use stranded copper cables and prefabricate
insulated plugs to ensure connection quality. The following table lists the
sectional areas and models of the recommended cables.
Cable
AC power line
（L、N）
Ground line
Input signal (X)
Output signal
(Y)
Fix the prepared cable head onto the PLC terminals with screws
Input/output
indicator
correctly. Fastening torque: 0.5~0.8Nm.
Expansion port
◆For the safety (to prevent electric shock and fire accidents) and lower
noise, the ground terminal of the controller should be connected in
accordance with the requirements from national electrical regulations, and
the ground resistance should be less than 100 Ω . Single point grounding
should be used when wiring multiple controllers, and the ground wire cannot
form a loop. As shown in the diagram below:
Note for wiring:
1. It is recommended to use a shielded twisted-pair cable for analog input.
The cable should be far away from power cable or other cables that may
generate electrical power interference.
2. Grounding terminal PG of the module is well grounded.
3. Do not use the empty pin on the terminal.
Fig. 2-2 Screw installation diagram
Recommended
Cross-Section
NO.
AWG12/AWG18 1.0—2.0mm 2
AWG12 2.0mm 2
AWG18/AWG20 0.8—1.0mm 2
2
AWG18/AWG20 0.8—1.0mm
×
√
Terminal and heat shrink
tubing
H1.5/14 prefabricate
insulated tubing terminal, or
Wire end tinning treatment
H2.0/14 prefabricate
insulated tubing terminal, or
Wire end tinning treatment
UT1-3 or OT1-3 cold-pressed
terminal, Φ3 or Φ4 heat
shrink tubing
