MeASUReMeNT
ULTRASONIC SeNSORS

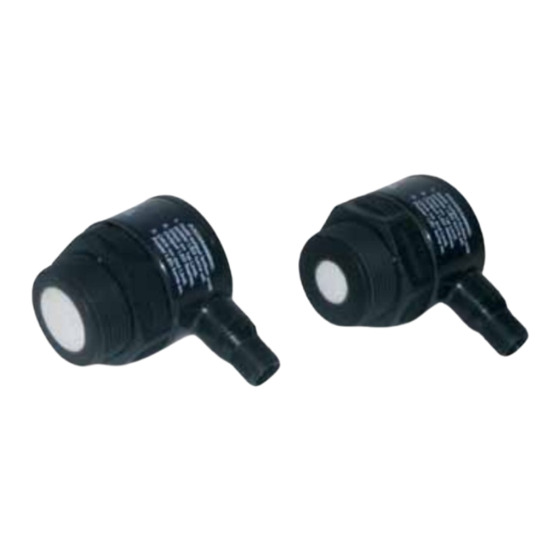

US30 SERIES
The range of measurement and
inspection devices is enriched thanks
to the introduction of tubular standard
m30x1 sensors of the US30 series.
models with operating distances
reaching 200 cm are available either
with bipolar digital output (nPn/PnP
no/nc) or with 4-20 ma or 0-10 v
analogue output. The sensors can be
easily configured using the teach-in
function, while the operating status is
visibly signalled by 3 Leds.
The temperature compensation function
corrects the sound speed changes due
to temperature variations, so the sensor
precision remains unchanged in all
situations and guarantees a resolution
reaching 0.5 mm. the electrical
connection is accomplished through
standard m12 4-pole connectors.
The US30 ultrasonic sensors detect
all objects independent from the non
sound-absorbent material, reflectivity,
transparency and colour, thus perfectly
suiting applications in the automotive,
packaging, machine tool fields and
material transformation processes.
HIGHLIGHTS
• high precision and switching
frequency
• colour independence and transparent
object detection
• easy teach-in setting and 3 signalling
Leds
• models with digital nPn - PnP and 0 -
10 v or 4- 20 ma analogue outputs
www.automation.datalogic.com
APPLICATIONS
Ceramics
Transportation lines
Beverage & Bottling
Packaging lines
Advertisement
Related Manuals for Datalogic US30 Series
Summary of Contents for Datalogic US30 Series
- Page 1 US30 SERIES The range of measurement and inspection devices is enriched thanks to the introduction of tubular standard m30x1 sensors of the US30 series. models with operating distances reaching 200 cm are available either with bipolar digital output (nPn/PnP no/nc) or with 4-20 ma or 0-10 v analogue output.
- Page 2 Led mode push-button teach push-button ACCeSSORIeS CONNeCTIONS M12 4-POLE CONNECTOR for dedicated accessories refer to the ACCeSSORIeS section of this Analogue Digital catalogue. refer also to Connectors of the General Catalogue. versions and options: refer to MODeL SeLeCTION TABLe www.datalogic.com...
-
Page 3: Technical Data
TeCHNICAL DATA Operating distance: 100 … 1000 mm ● ● ● 200 ... 2000 mm ● ● ● Power supply: 10 … 30 vdc (limit values), ● ● ● ● ● ● polarity inversion protection ● ● ● ● ● ●... - Page 4 www.datalogic.com...
- Page 5 LED OUT: Blinking. Blinking. © 2009 - 2017 Datalogic S.p.A. and/or its affiliates ALL RIGHTS RESERVED. Without limiting the Notes: rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a - Exposure to direct sunlight can affect the sensor’s ability to accurately compensate for changes in retrieval system, or transmitted in any form or by any means, or for any purpose, without the express temperature.
- Page 6 US30 DIGITAL OUTPUT “SENSOR CONFIGURATION” Remote Line TEACH Run mode is the sensor’s normal operating condition. The duration of each pulse is defined as "T" : 0.04 s < T < 0.8 s. A Hold will exit TEACH mode and return to Run mode with previously saved changes. The duration of Hold is: T>2 s.
- Page 7 US30 ANALOGUE OUTPUT “SENSOR CONFIGURATION” Remote Line TEACH Run mode is the sensor’s normal operating condition. The duration of each pulse is defined as "T" : 0.04 s < T < 0.8 s. A Hold will exit TEACH mode and return to Run mode with previously saved changes. The duration of Hold is: T>2 s.
