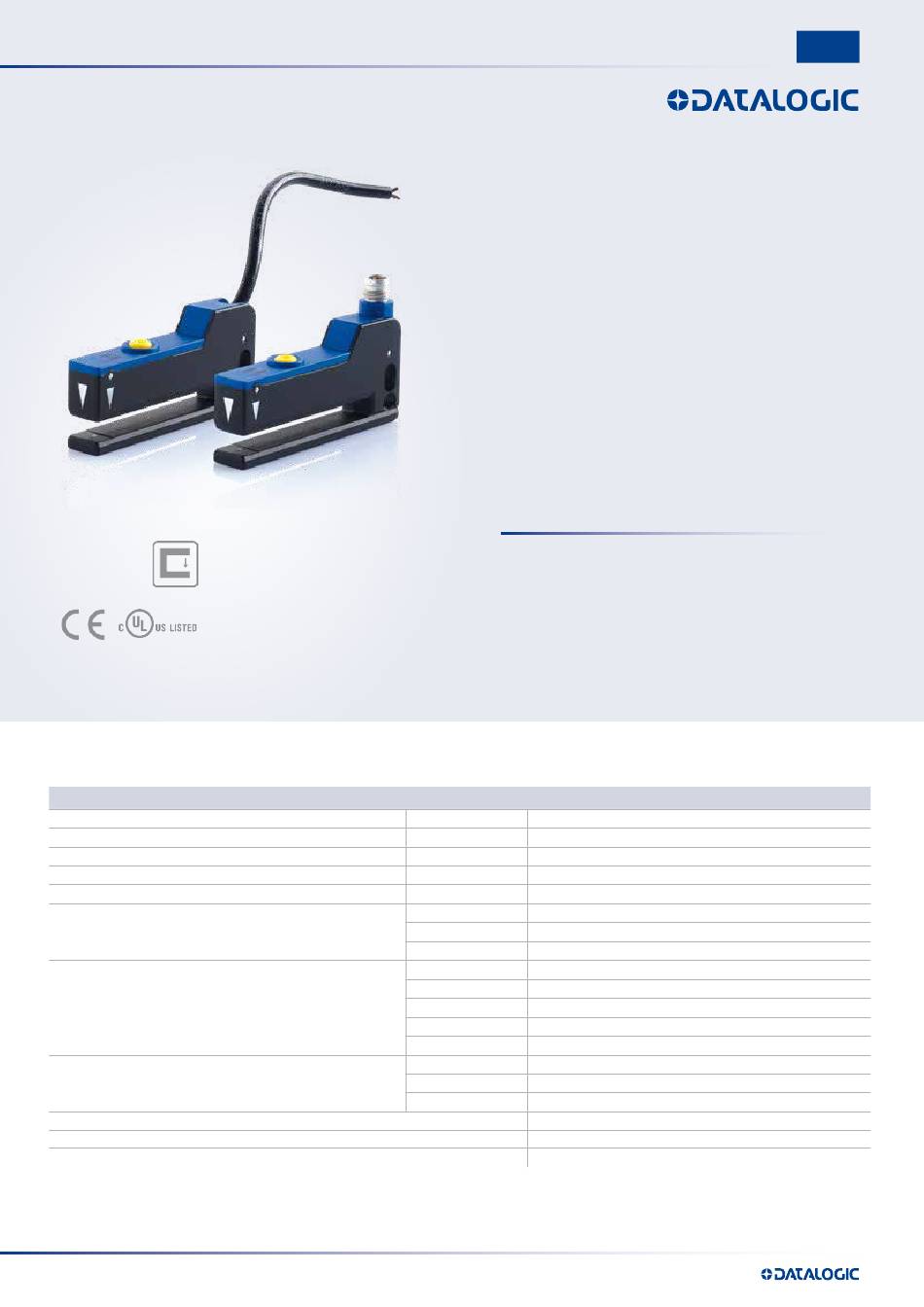

FORK SENSORS
SR23
Slot width
Slot depth
Switching frequency
Light emission
Setting
Power supply
Output
Connection
Approximate dimensions (mm)
Housing material
Mechanical protection
140
CATALOG | Photoelectric Sensors

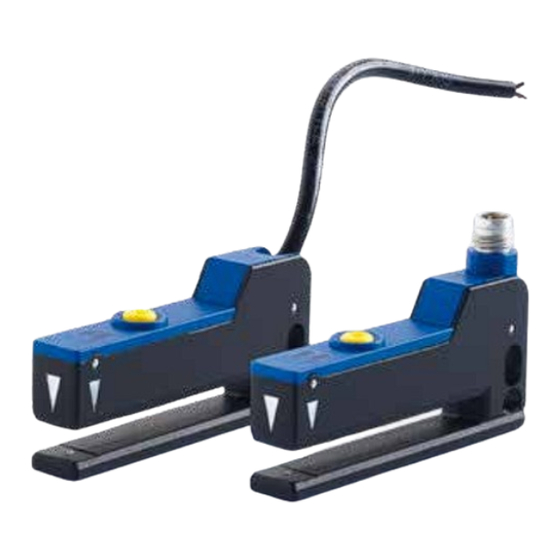

HIGH EFFICIENCY FORK
SENSOR FOR BOOKLET
AND MULTILAYER LABELS
DETECTION
• Multilayer labels detection
• Up to 0,5 mm of minimum size labels/gap
• 5 mm slot width
• 50 mm slot depth
• Dynamic or static setting through single push-button
• 12 kHz switching frequency
• Compact and robust housing, IP65
• M8 connector or 2 m cable models
• PNP or NPN models
APPLICATIONS
• Processing and Packaging machinery
• Automatic labelers
SR23
Vdc
Vac
Vac/dc
PNP
NPN
NPN/PNP
relay
other
cable
connector
pig-tail
C ATA L O G
S E C T I O N
5 mm
50 mm
12 kHz
IR LED
push button
10...30 Vdc
30x63x10
Alluminum (Zama), Plastic (PBT)
IP65
SR

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Datalogic SR23

  • Page 1 FORK SENSORS C ATA L O G S E C T I O N SR23 HIGH EFFICIENCY FORK SENSOR FOR BOOKLET AND MULTILAYER LABELS DETECTION • Multilayer labels detection • Up to 0,5 mm of minimum size labels/gap • 5 mm slot width •...
  • Page 2: Technical Data

    TECHNICAL DATA Power supply 10 … 30 Vdc (reverse polarity protection) Ripple 2 Vpp max. Consumption (output current excluded) 30 mA max. Light emission IR LED 850 nm Setting SET push-button yellow OUTPUT LED Indicators green READY LED Output PNP or NPN Output current 100 mA max.
  • Page 3 INDICATORS AND SETTINGS CONNECTIONS M8 CONNECTOR CABLE MODEL SELECTION AND ORDER INFORMATION OPTIC FUNCTION CONNECTION OUTPUT MODEL ORDER No. SR23-2-IR-PH 953161000 2m Cable SR23-2-IR-NH 953161020 Fork Sensor SR23-5-IR-PH 953161010 M8 Connector SR23-5-IR-NH 953161030 CABLES TYPE DESCRIPTION LENGTH MODEL ORDER No.
  • Page 4 Rev. 03, 04/2019 The company endeavours to continuously improve and renew its products; for this reason the technical data and contents of this catalogue may undergo variations without prior notice. For correct installation and use, the company can guarantee only the data indicated in the instruction manual supplied with the products. Product and Company names and logos referenced may be either trademarks or registered trademarks of their respective companies.
  • Page 5 You can connect to the earth in the following ways: © 2014 - 2017 Datalogic S.p.A. and/or its affiliates  ALL RIGHTS RESERVED.  Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any 1.
