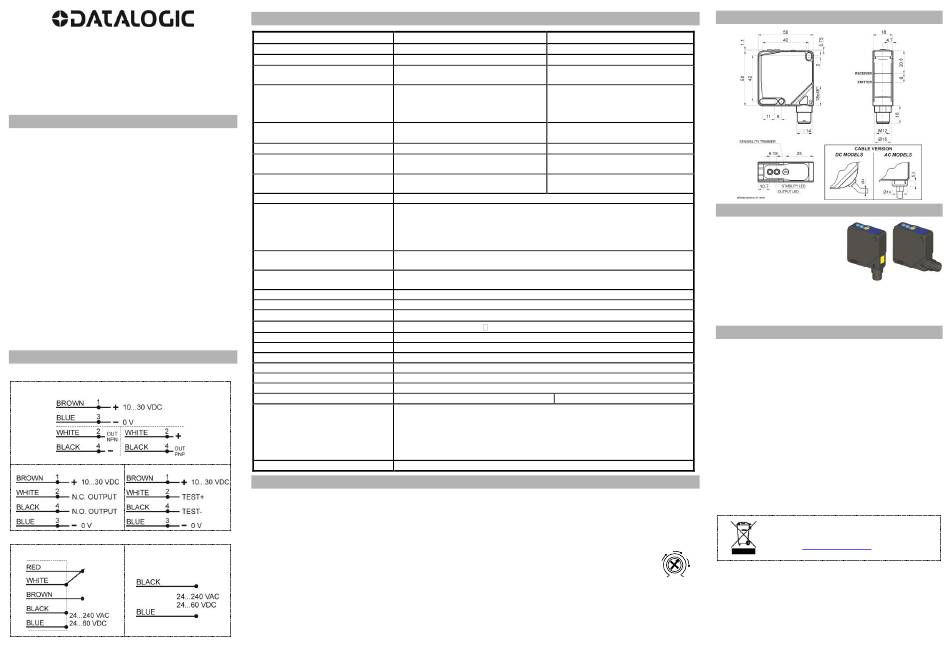

Datalogic S62 Series Instruction Manual

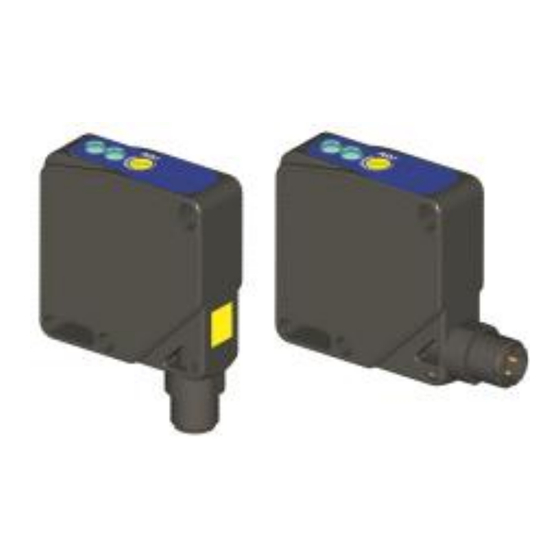

S62 SERIES
INSTRUCTION MANUAL
CONTROLS
OUTPUT LED (yellow) (S62..A/B/C/F)
The yellow LED ON indicates the output status.
STABILITY LED (green) (S62..A/B/C/F)
The green LED permantely ON indicates a stable operating
condition, where the signal received has a safety margin
higher than 30% respect to the output switching value.
The sensor is ready to function correctly.
POWER ON LED (green) (S62..G)
The green LED ON indicates the powering status and the laser
emission presence.
SENSIBILITY TRIMMER (ADJ.) (S62..A/B/C/F)
A mono-turn trimmer adjusts the sensitivity and the sensor
operating distance.
Please refer to "SETTING" paragraph for the correct use
procedure.
DARK/LIGHT TRIMMER (S62..RX/PN)
The LIGHT/DARK mode is selected using a mono-turn
trimmer.
LIGHT MODE: clockwise rotation
DARK MODE: counter-clockwise rotation.
WARNING: the maximum mechanical rotation range of the
trimmer is 240°. Do not force over of the maximum and
minimum positions.
CONNECTIONS
DC models:
S62-PA-2/5-PN
S62-PA-2/5-PP/NN S62-2/5-G
AC models:
S62-PA-1-A/B/C/F S62-PA-1-G
RELAY
TECHNICAL DATA
10 ... 30 VDC– Class 2 (UL508)
Power supply:
Ripple:
Current consumption
(output current excluded):
S62..PP/NN: PNP or NPN N.A./N.C.
Outputs:
S62..PN:
(short-circuit protection)
Output current:
(overload and overvoltage protection)
Output saturation voltage:
S62...A/B/C:
Response time:
S62...F/G:
S62...A/B/C:
Switching frequency:
S62...F/G:
Emission type:
Operating distance (typical values):
S62...A/B/C/F: OUTPUT LED (YELLOW) / STABILITY LED (GREEN)
Indicators:
S62...G:
Adjustment:
Operating temperature:
Storage temperature:
Dielectric strength:
Insulating resistance:
Ambient light rejection:
0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6)
Vibrations:
Shock resistance:
Housing material:
Lens material:
Mechanical protection:
2 m cable  4 mm / M12 4-pole connector
Connections:
VDC models: they are intended to be connected to a Class 2 transformer or class
2 power supply. VAC models: these devices shall be connected to a power-
supply or system,including filters or air-gaps, of overvoltage category II
UL requirements:
("load level – secondary circuit of a protected utility transformer"), suitable to
control over-voltages at the maximum "rated impulse withstand voltage peak of
Weight:
S62..A/B setting: Position the sensor and reflector on opposite sides. Turn the sensitivity trimmer to maximum.
Find the points where the yellow LED (OUT) in both vertical and horizontal positions and fix the sensor in the centre between
these points. Optimum operation is obtained when both LEDs switch ON. If necessary, reduce sensitivity using the trimmer,
in order to detect very small targets. In order to improve alignment, repeat the procedure detailed above whilst progressively
reducing the sensitivity.
S62..C setting: Position the sensor and turn the sensitivity trimmer at minimum: the yellow LED is OFF
(litgh mode). Place the target opposite the sensor. Turn the sensitivity trimmer clockwise until the yellow LED
turns ON (Target detected state, pos.A). Remove the target, the yellow LED turns OFF.
Turn the trimmer clockwise until the yellow LED turns ON (Background detected state, pos.B).
The trimmer reaches maximum if the background is not detected. Turn the trimmer in intermediate position C,
between the two positions A and B. The green LED must be ON.
S62...F/G setting: Position the sensors on opposite sides. Turn the sensitivity trimmer to maximum. Find the points where
the yellow LED (OUT) is switched ON and OFF in both vertical and horizontal positions, and fix the sensor in the centre
between these points. Optimum operation is obtained when both LEDs switch ON.
If necessary, reduce sensitivity using the trimmer, in order to detect very small targets.
In order to improve alignment, repeat the procedure detailed above whilst progressively reducing the sensitivity.
S62-PA-2/5 S62-PA-1
24...240 VAC / 24...60 VDC
10 % max
2 Vpp max.
< 3 VA
< 30 mA
Electromechanical SPDT
30 VDC
NPN/PNP; 30 VDC max 250 VAC / 30 VDC
2 A max.
100 mA max
(resistive load)
 2 V
500 s max.
25 ms
1 ms
1 kHz
20Hz
500Hz
RED (640 nm) (S62..A/B/C/G)
S62...B: 0.1...8 m on R2 (Ø63 mm reflector) (EG = 2)
S62...A: 13m on R2 (Ø63 mm reflector) (EG = 2)
S62...C01: 90 cm on 90% White target (EG = 2)
S62...C11: 200 cm on 90% White target (EG = 2)
S62...F/G: 0...25 m
POWER ON LED (GREEN)
Mono-turn sensitivity adjustment trimmer
Mono-turn light/dark trimmer (S62..RX/PN)
-10 ... 55 °C
-20 ... 70 °C
500 VAC, 1 min between electronics and housing
> 20 M, 500 VDC between electronics and housing
according to EN 60947-5-2
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
ABS
PMMA window, policarbonate lens
IP67
2 m cable  5 mm
1.2KV and with a short-circuit power limit at max 500VA.
90 g. max. cable versions / 40 g. max. connectors versions
SETTINGS
DIMENSIONS
-
INSTALLATION
The sensor can be positioned by
means of the two housing holes
using two screws (M4x35 or longer,
1.2Nm maximum tightening torque).
Various orientable fixing brackets to
ease the sensor positioning are
available (please refer to the
accessories listed in the general catalogue). The operating
distance is measured from the front surface of the sensor optics.
The M12 connector can be oriented at two different positions using
the specific fastening spring and rotating the block of 180°.
TEST FUNCTION (S62...G)
The TEST+ and TEST- inputs can be used to switch off the emitter
light and verify that the system is correctly operating: the receiver
output should switch when the test is activated while the beam is
uninterrupted: the inputs activating voltage range is 12...30 VDC,
respecting the polarity.
The emission is switched OFF connecting TEST+ to VDC and
TEST- to 0V.
The sensors are NOT safety devices, and so MUST NOT be used in the
safety control of the machines where installed.
Datasensing S.r.l.
Strada S. Caterina 235 - 41122 Modena - Italy
Tel: +39 059 420411 - Fax: +39 059 253973 - www.datasensing.com
The warranty period for this product is 36 months. See General Terms and
Conditions of Sales for further details.
For information about the disposal of Waste Electrical
and Electronic Equipment (WEEE), please refer to the
website at www.datasensing.com.
