Timago International Group
Spółka z o.o. i Spółka – Spółka komandytowa
ul. Karpacka 24/12
43-316 Bielsko-Biała, Polska
T.: +48 33 499 50 00
F.: +48 33 499 50 11
E.: info@timago.com
JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO., LTD.
No.1 Baisheng Road Development Zone, Danyang, Jiangsu 212300 CHINA
TEL: 86-511-86900833
www.yuwell.com
Metrax GmbH
EC
REP
Rheinwaldstr. 22, 78628 Rottweil, GERMANY
0123
Document No. : YY-OXG3300C-02(A/2)
Revision Date: 2024.03

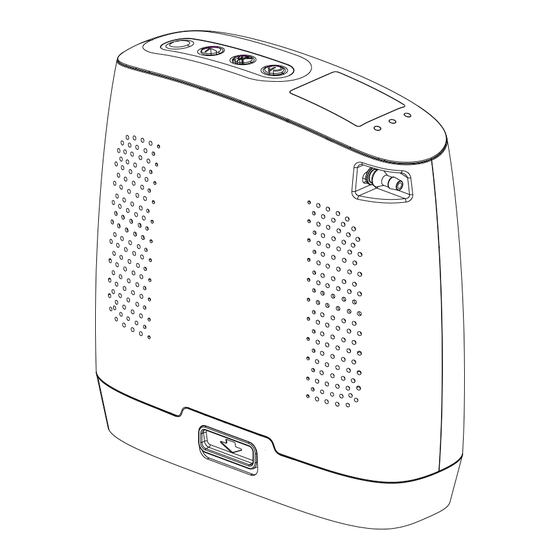

Portable Oxygen Concentrator
Model
Spirit-3
：
User's Manual
DO NOT OPERATE THIS UNIT WITHOUT FIRST
READING AND UNDERSTANDING THIS MANUAL
Advertisement
Table of Contents
Related Manuals for Timago Yuwell Spirit-3
Summary of Contents for Timago Yuwell Spirit-3
- Page 1 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO., LTD. No.1 Baisheng Road Development Zone, Danyang, Jiangsu 212300 CHINA TEL: 86-511-86900833 www.yuwell.com...
- Page 2 SAFETY NOTES TABLE OF CONTENTS INTENDED USE INTENDED PURPOSE: This oxygen concentrator is intended for oxygen supplement. SAFETY NOTES ---------------------------01 - CONTRA-INDICATIONS: Oxygen poisoning and oxygen allergy user/patient DO NOT using this oxygen concentrator. This device is to be used as an oxygen supplement and is NOT considered life-supporting or FEATURES -------------------------------11 - 1 life-sustaining.
-
Page 3: Safety Notes
SAFETY NOTES SAFETY NOTES Ⅰ. IMPORTANT MESSAGE Oxygen concentrator MUST locate so as to avoid pollutants or fumes. Oxygen concentrator must avoid heat source, fire source, wetness, exorbitant To reduce the risk of electrical shock, DO NOT remove the cabinet. Only the or over-low extra environment condition. - Page 4 SAFETY NOTES SAFETY NOTES WARNING: Smoking during oxygen therapy is dangerous and is likely to oxygen concentrator frequently, and turn it on again after 3-5 minutes of result in facial burns or death. Do not allow smoking or open flames within the shutdown, so as not to affect the service life of the compressor.
- Page 5 SAFETY NOTES SAFETY NOTES Ⅶ. TO REDUCE THE RISK OF BURNS, Keep the power cord away from heated or heated surfaces. ELECTROCUTION, FIRE OR INJURY TO PERSONS Do not move oxygen concentrator when inserting power supply. Do not drop or insert any substance into the opening of the device. Avoid using while bathing.
- Page 6 WARNING: The settings of other models or brands of oxygen therapy equipment do not correspond with the settings of this Yuwell Spirit-3. Moisture from a nebuliser or steam kettle may accelerate the aging of molecular sieves in oxygen concentrator.
- Page 7 SAFETY NOTES FEATURES the quality of the therapy. Ⅰ. SUMMARY WARNING: Open flames during oxygen therapy are dangerous and is likely This manual will tell you about your concentrator and will serve as a to result in fire or death. Do not allow open flames within 2 m of the oxygen reference as you use your concentrator.
- Page 8 FEATURES FEATURES Ⅱ. CHARACTERS Breath Rate, Setting 1 Setting 2 Setting 3 Setting 4 Breath/Minute The product structure is mainly composed of oxygen concentrator, Pulse Volume (mL) (BPM) rechargeable lithium-ion battery, power supply , DC power cord , and nasal 14.0 28.0 42.0...
- Page 9 FEATURES FEATURES 10. Input Power: 110VA while charging 18. Electric classification: class II equipment, type BF applied part, IP22, applied part: nasal cannula. 1 . Power Source: 19. Classification : over voltage category: II ; pollution degree: 2 ; AC Power Supply: Input AC 100V-240V, 50Hz/60Hz altitude: ≤3000 m Output DC 12V,10A 20.
-
Page 10: Operating ＆ Installation
HANDLING OPERATING ＆ INSTALLATION Ⅰ. UNPACKING WYJŚCIE TLENU PANEL KONTROLNY CAUTION: Unless use the oxygen concentrator, retain containers and packing materials for storage until use of the concentrator is required. KANIULA NOSOWA 1. Check for any obvious damage to the carton or other packaging. If damage is evident, please notify the carrier or local dealer. - Page 11 WARNING: DO NOT use extension power strip. WARNING: Only use the specified Yuwell Spirit-3 Battery for this oxygen NOTE: Inspect the power cord/plug and the exterior of the oxygen concentrator. concentrator for nicks, dents, scratches or other damages before usage. If it is Battery Charging necessary, call qualified service personnel for examination and repair.
- Page 12 OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION Ⅳ. AC POWER SUPPLY The AC Power Supply is design for the usage of the Spirit-3 only. When operating, connect the power output plug into the Spirit-3 then connect the AC power plug to the power source. As shown in Figure 7. Figure 5 Battery Removing Place the Spirit-3 on a flat position.
- Page 13 OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION delivery as prescribed by the physician or clinician. 5) Low battery Oxygen therapy operation time and flow setting MUST according to the 6) Empty battery physician's prescription. 7) Pressure failure The oxygen delivery setting has to be determined for each patient individually 8) Compressor failure with the configuration of the device is used, including accessories.
- Page 14 OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION Description of the alarm conditions - The maximum and mean delay of over temperature alarm system delay is less than 10 s. NOTE: Oxygen concentrator will reach to stable state after warm-up (approximately 30 minutes). 6.
- Page 15 OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION warm-up status. Wait for 3 minutes, if the alarm still persists, contact Ⅷ.SYMBOLS supplier immediately. Symbol Description Symbol Description Audio alarm paused function When the oxygen concentrator alarms, press the "Audio alarm paused" Alternating Current Caution button, the alarm sounds will be turned off, and the panel shows "...
- Page 16 OPERATING ＆ INSTALLATION OPERATING ＆ INSTALLATION Nasal cannula Symbol Description Symbol Description CAUTION: The proper placement and positioning of the prongs of the Do Not Dispose of In Medical Device Unsorted Municipal Waste nasal cannula in the nose is critical to the amount of oxygen delivered to the respiratory system of the patient.
-
Page 17: Maintenance
OPERATING ＆ INSTALLATION MAINTENANCE connecting accessories. The displayer can be seen at the top of the bag. CAUTION: Before maintaining the oxygen concentrator, Remove the power and take out the battery first to avoid electrical shock. CAUTION: During both normal condition and single fault condition, the housing, battery, nasal cannula and carry bag can become WYŚWIETLACZ contaminated with body fluids or expired gases. - Page 18 MAINTENANCE MAINTENANCE ●DO NOT allow any cleaning agent to drip inside the air inlet and term operation at the temperature lower than 5 ℃ or higher than 35℃. outlet openings. Battery Level ●DO NOT spray or apply any cleaning agent directly to the cabinet. Display the remaining battery level continuously.
- Page 19 MAINTENANCE MAINTENANCE Clean the filter Ⅵ. INSTRUCTIONS FOR PROCESSING AND 1) Clean the filter with a mild detergent or warm soapy water and then rinse REPROCESSING thoroughly with clean water. In order to prevent injury caused by infection or damage to the oxygen 2) DRY the filter thoroughly before reinstallation.
-
Page 20: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Use the table below to take actions when the oxygen concentrator Symptom Probable cause Solution indicates an abnormal condition. Please use the backup oxygen Low pressure failure source and contact the supplier. Symptom Probable cause Solution Battery installed not Re-install the battery in place. -
Page 21: Other Attention Items
OTHER ATTENTION ITEMS OTHER ATTENTION ITEMS Ⅲ. PACKING LIST Ⅰ. GAS PASS OPERATION SKETCH MAP 1. Oxygen Concentrator 1 unit Air Filter Compressor 2. Manual 1 piece Filter 2 pieces Exchange Oxygen/Nitrogen Separation Sieve Beds 4. Carry Bag 1 piece Valve 5. -
Page 22: Emc Information
EMC INFORMATION EMC INFORMATION WARNING: Far away from HF SURGICAL EQUIPMENT and the RF Table 1: Guidance and declaration of manufacturer - electromagnetic shielded room of an ME SYSTEM for magnetic resonance imaging in immunity. hospitals, where the intensity of EM DISTURBANCES is high. Basic EMC WARNING: Use of this equipment adjacent to or stacked with other... - Page 23 EMC INFORMATION EMC INFORMATION Table 2: Test specifications for ENCLOSURE PORT IMMUNITY to RF Table 3: Guidance and declaration of manufacturer - electromagnetic wireless communications equipment emission Test IMMUNITY Phenomenon Compliance Band frequency TEST LEVEL Service Modulation (MHZ) (MHZ) (V/m) Conducted and radiated RF EMISSIONS Group 1, Class B Pulse modulation...
