For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T34066 No. 4 10" Legacy Smoothing
Plane is designed for smoothing flattened wood
surfaces and trimming end grain. The included
steel blade has a 2" cutting width sharpened to a
45° bevel, which can achieve a smooth finish with-
out the need for sandpaper. This plane has a 9½"
cast iron sole, stainless steel fixtures, anodized
aluminum cheeks and knob, and a solid wood tote
that can be adjusted to accommodate a variety of
hand sizes. This smoothing plane also features
an adjustable frog, depth adjustment knob, and
lateral adjustment screws for fine-tuning hard and
soft wood finishes.

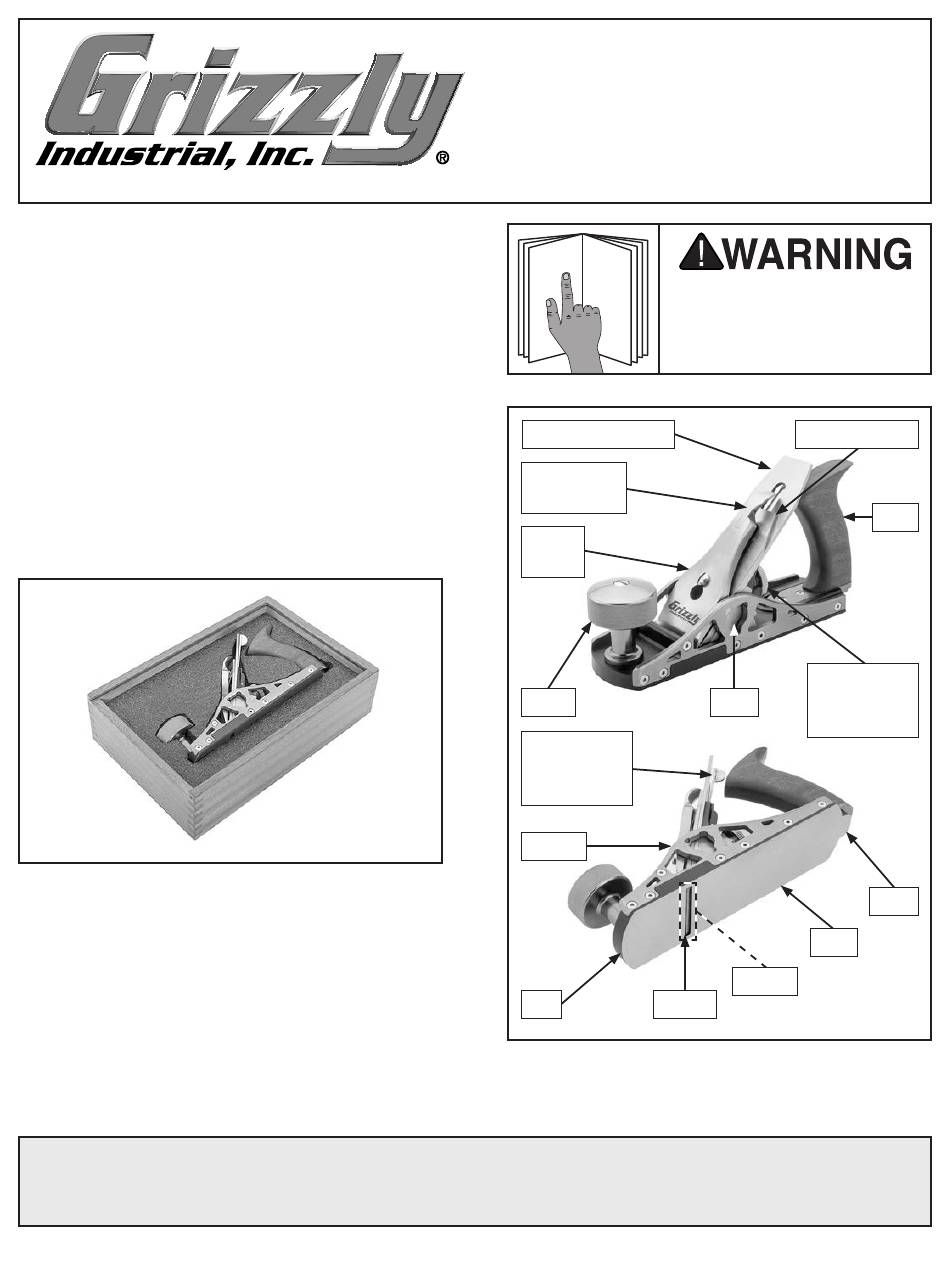

Figure 1. Model T34066.
Specifications
Bedding Angle ......................................... 45 deg.
Blade Bevel Angle ................................... 45 deg.
Blade Width .................................................. 2 in.
Blade Construction ...................................... Steel
Sole Length .............................................9-1/2 in.
Sole Construction ..................................Cast Iron
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © JANUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 12/23) #KS23051 PRINTED IN INDIA
***Keep for Future Reference***
MODEL T34066
NO. 4 10" LEGACY
SMOOTHING PLANE
INSTRUCTIONS
To reduce your risk of
serious injury, read this
entire
using tool.
Blade/Plane Iron
Lever Cap
Cam
Lever
Cap
Knob
Lateral
Adjustment
Lever
Cheek
Toe
Mouth
Figure 2. Identification.
manual
BEFORE
Chip Breaker
Tote
Depth
Adjustment
Frog
Knob
Heel
Sole
Throat
V1.01.24
Advertisement
Table of Contents
Related Manuals for Grizzly T34066
Summary of Contents for Grizzly T34066
- Page 1 MODEL T34066 NO. 4 10" LEGACY SMOOTHING PLANE INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction The Model T34066 No. 4 10" Legacy Smoothing Plane is designed for smoothing flattened wood To reduce your risk of surfaces and trimming end grain.
-
Page 2: Securing Workpiece
Note: Length of blade protruding from sole Securing Workpiece determines depth of cut. The Model T34066 requires two hands to prop- erly control, so it is highly recommended to use a solid workbench for securing planing projects. Workbenches with configurable vises, wedge stops, bench dogs, and hold-downs will provide critical support for many different workpieces. - Page 3 Note: If lever cap cam is too loose to secure blade, tighten lever cap screw until lever cap cam is firmly secured. Model T34066 (Mfd. Since 12/23)
- Page 4 Adjusting Hand Placement The Model T34066 features an adjustable knob and tote to accommodate a variety of hand sizes and positions. To adjust hand placement: Loosen and remove (2) flat head cap screws on base of tote (see Figure 9).
-
Page 5: Troubleshooting
Toe End Lightly oil the plane and store in a sealed bag • or included display case away from direct sunlight and humidity. Heel End Figure 12. Toe and heel ends of smoothing plane. Model T34066 (Mfd. Since 12/23) - Page 6 Figure 14. D1067 Japanese Water Stone. Figure 16. T23877 Bench Planes DVD & Book. Model T34066 (Mfd. Since 12/23)
-
Page 7: Warranty And Returns
WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
