Introduction
The T32591 13" Spiral Cutterhead is designed
to replace the straight-knife cutterhead on the
DeWalt DW735 and DW735X (T22222) Planers.
The total procedure for changing the cutterhead
and reassembling the planer takes approximately
three hours. Read these instructions thoroughly
before beginning. These instructions make refer-
ence to many procedures detailed in your planer
manual. Always consult your manual for these
procedures. We strongly recommend using the
new replacement bearings included with the
T32591, even if the existing bearings appear to be
in good condition. Call Technical Support at (570)
546-9663 if you need help.
The Model T32591 13" Spiral Cutterhead is
designed to be used only with the DeWalt
DW735 and DW735X (T22222) Planers. DO
NOT install the T32591 in any other planer
model or make. Doing so could result in
property damage or serious personal injury.
Specifications
Maximum Width of Cut ................................... 13"
Cutterhead Diameter ..................................... 1
Number of Cutter Rows ..................................... 3
Total Number of Indexable Cutters .................. 30
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © MAY, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 05/21) #KS21865 PRINTED IN TAIWAN
MODEL T32591
13" SPIRAL CUTTERHEAD
FOR DEWALT PLANERS
Recommended Tools
Description
Open-End Wrenches 6, 24 mm ...................1 Ea.
Deep Well Sockets 32, 40mm .....................1 Ea.
Retaining Ring Pliers (Internal and External) .... 1
Hex Wrench 4mm .............................................. 1
Torx Driver T-30 (Included with DW735/X) ....... 1
Phillips Screwdriver #2 ...................................... 1
Steel Hammer ................................................... 1
Hex Bolt
5
Heavy Leather Gloves ................................1 Pair
Wood Board (Minimum 12" Length) .................. 1
Scrap Cardboard ............................... As Needed
Inventory
Description
A. Ball Bearing 6202-2NSE ............................ 1
B. Ball Bearing 6204-2NSE ............................ 1
C. Flat Hd Torx Screws T-25 10-32 x ½" ........ 5
D. Indexable Inserts 15 x 15 x 2.5mm ............ 5
E. T-Handle Torx Driver T-25 .......................... 1
F.
Helical Pinion Gear 8T ............................... 1
G. Spiral Cutterhead 13" ................................. 1
A
"
7
8
E

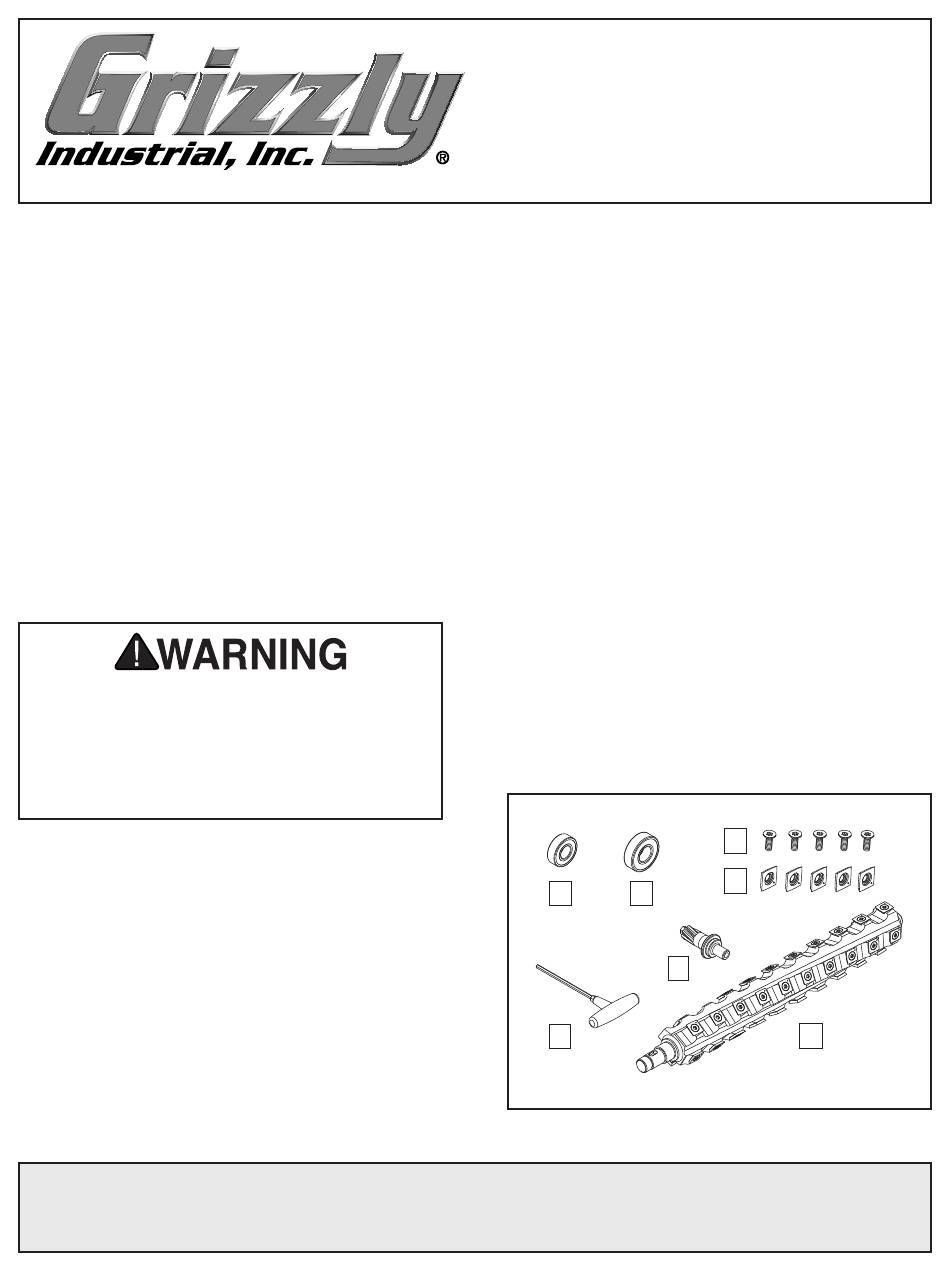

Figure 1. Model T32591 Inventory.
INSTRUCTIONS
"-18 x 2 ........................................... 1
16
(Figure 1)
C
D
B
F
Qty
Qty
G
V1.05.21

Advertisement

loading
Need help?

Need help?

Do you have a question about the T32591 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grizzly T32591

  • Page 1 MODEL T32591 13" SPIRAL CUTTERHEAD FOR DEWALT PLANERS INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Recommended Tools Description The T32591 13" Spiral Cutterhead is designed to replace the straight-knife cutterhead on the Open-End Wrenches 6, 24 mm ....1 Ea.
  • Page 2 10. Remove spacer on front roller (see Figure 5). and set aside (see Figure 3). Rear Roller Chain Tensioner Spring Retaining Rings Figure 3. Location of red wing nuts. Chain Sprockets Front Roller Figure 5. Gearbox area components. Model T32591 (Mfd. 05/21)
  • Page 3 Cutterhead Note: Cutterhead lock lever is not compat- Lock Lever ible with the Model T32591, but should be retained in the event planer is ever returned to original configuration. 24. Unfasten gearbox attachment screws (see Figure 7.
  • Page 4 27. Insert a wood board at least 12" in length between cutterhead and cutterhead carriage (see Figure 11). Verify cutterhead no longer rotates. Figure 13. Cutterhead pulley assembly. 32. Remove retaining ring from right bearing bore. Figure 11. Wood board between cutterhead and carriage. Model T32591 (Mfd. 05/21)
  • Page 5 Figure 15. Bearing outer race. Installing T32591 Spiral Cutterhead We strongly recommend using the new replace- ment bearings included with the Model T32591, even if the existing bearings appear to be in good condition. Wrap the new bearings and place them in a freez- Figure 17.
  • Page 6 16. Remove drive belt cover located on right side with gearbox. (see Figure 19) and verify that drive belt is centered on drive wheel. "U" Bracket Speed Selector Rod Figure 21. Speed selector rod and "U" bracket. Figure 19. Drive belt cover location. Model T32591 (Mfd. 05/21)
  • Page 7 Note: DO NOT re-install cutterhead lock Rear Roller Chain Tensioner Spring lever! Cutterhead lock lever is not compatible with the Model T32591. Retaining Rings 34. Rotate dust shroud towards cutterhead. Verify alignment arrow on fan housing aligns with CLOSED line on dust shroud.
  • Page 8: Parts Breakdown & List

    Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
