NOMAD PLATFORM BED
Parts:
(28) A-35 REGULAR SLAT - 35"
(2) A-15L
LEFT LEGS -15"
1
Align a Left Leg (A-15L) and Right Leg (A-15R)
so that the rail pockets are on the front.
Turn the Bed End (A-70F) so that the
pocket holes are facing the front.
Then push the dowels into the holes on the
legs. Repeat for the other Bed End.
Use a phillips screw driver to attach
the Legs to the Leg Connector using
(4) 1 - 1/2" Wood Screws (H-20).
Repeat for the other Bed End.
Instructions for the
KING
SKU# 2875-NP-EK
(2) A-70F BED ENDS - 70"
(4) A-80-P BED RAIL - 80"
(4) A-35-C CONNECTOR SLAT - 35"
(2) A-15R
RIGHT LEGS -15"
(2) A-14
CENTER LEGS -14"
A-15L
WOOD SCREWS
GO IN THESE
POCKET HOLES
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • customerservice@kdframes.com
H A R D W A R E
H-21 2 - 1/2" BOLT
H-3 CROSS DOWEL
H-10 HEX WRENCH
H-20 1 - 1/2" WOOD SCREW
#2 PHILLIPS HEAD SCREW DRIVER REQUIRED
FOR ASSEMBLY VIDEO PLEASE VISIT
kdframes.com
THESE POCKETS
SHOULD BE TOWARDS
THE TOP
RAIL POCKETS MUST
ALL BE ON THE
SAME SIDE
L I S T
24
24
1
16
A-15R
Advertisement
Related Manuals for kd frames 2875-NP-EK
Summary of Contents for kd frames 2875-NP-EK

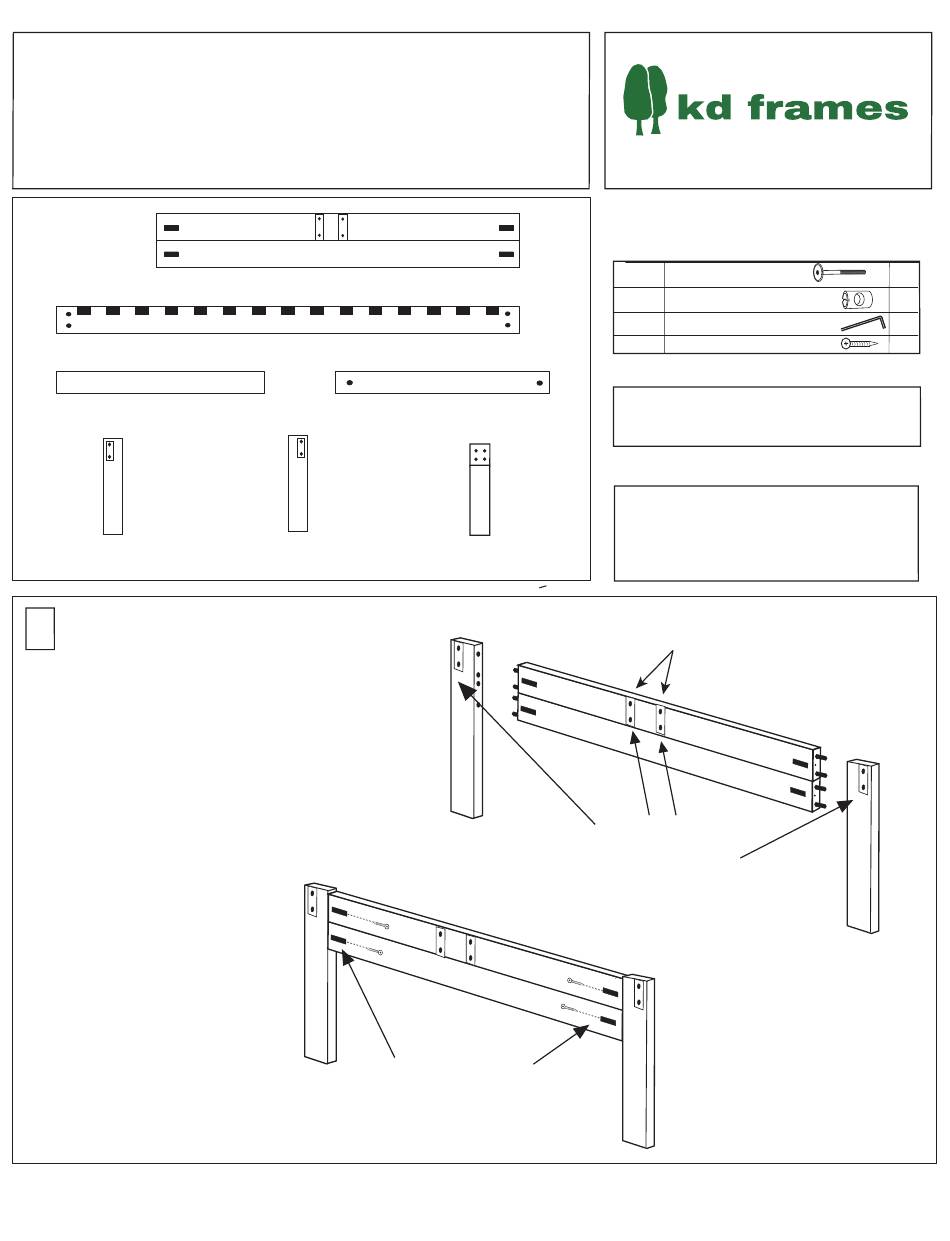

- Page 1 Instructions for the Manufactured by NOMAD PLATFORM BED KING 394 Dairy Pak Rd. • Athens, GA 30607 SKU# 2875-NP-EK kdframes.com • customerservice@kdframes.com Parts: H A R D W A R E L I S T H-21 2 - 1/2” BOLT (2) A-70F BED ENDS - 70”...
