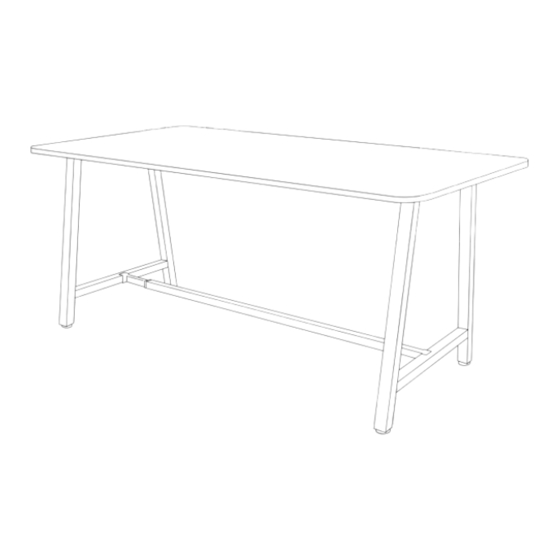

- Page 1 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table Size: 1800x1100 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation www.jasonl.com.au Need help! 1 of 9 1300 527 665 Call us on...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table COMPONENTS Table top x1 Leg Quadro A x2 Upper Beam x1 Lower Beam x1 Plastic bracket x4 Feet x4 SCREWS M8x20MM CSK x4 M8x20MM Socket head x4 M6x20MM Socket head x4...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 02 STEP 01 TOP VIEW Using Allen Key provided, attach 2 plastic brackets per leg (D) (as per Using Allen Key provided, attach M8x20MM Socket head (H)- screw picture above) using M6x20MM (I) Socket head screw. Screw the feets...
- Page 4 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 03 Adjust extendable beam (C) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800 1700 1600 1500 1400 1300 1200 www.jasonl.com.au Need help!
- Page 5 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 04 Adjust extendable beams (D) to desired length. Remove plastic inserts Loosen 2 bolts on beam using allen key Extent lower beam to the same distance as upper beam Insert plastic inserts back into the beam www.jasonl.com.au...
- Page 6 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 06 STEP 05 TOP VIEW Attach Upper Beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach Upper Beam (C) with Sockets (G).
- Page 7 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 07 Frame looks like this. Using Allen Key. Tighen Sockets (G) on the Lower Beam (D) using Allen Key (J). Insert plastic spacers to improve regidity. Attach two Sockets (G) to the side of the lower side beams (as shown in the picture).
- Page 8 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table STEP 08 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktop on top of frame. Please tighten screws using M6x30MM (J) into the underneath of the tops. www.jasonl.com.au Need help!
- Page 9 ASSEMBLY INSTRUCTIONS Quadro A Leg Radius Corners Counter Table If purchase with wheels: WHEELS ASSEMBLY DONE! Replace Feet on the bottom of each leg with wheels (F) www.jasonl.com.au Need help! 9 of 9 1300 527 665 Call us on...
