Jason.L Quadro Assembly Instructions Manual
2 person run with return a leg
Hide thumbs
Also See for Quadro:
- Assembly instructions manual (9 pages) ,
- Assembly instructions manual (10 pages) ,
- Assembly instructions (5 pages)
Advertisement
Quick Links
www.jasonl.com.au

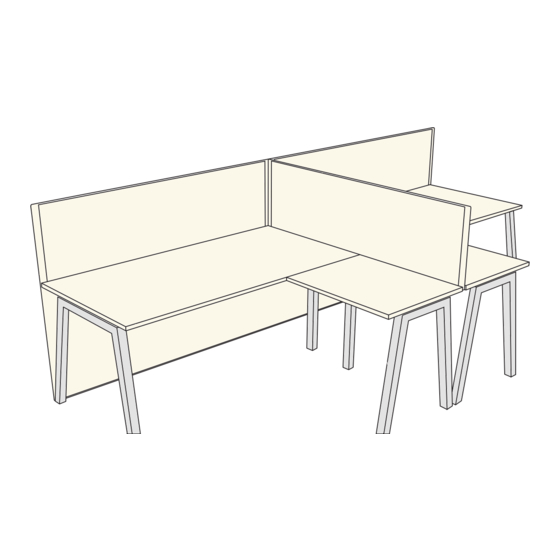

ASSEMBLY INSTRUCTIONS

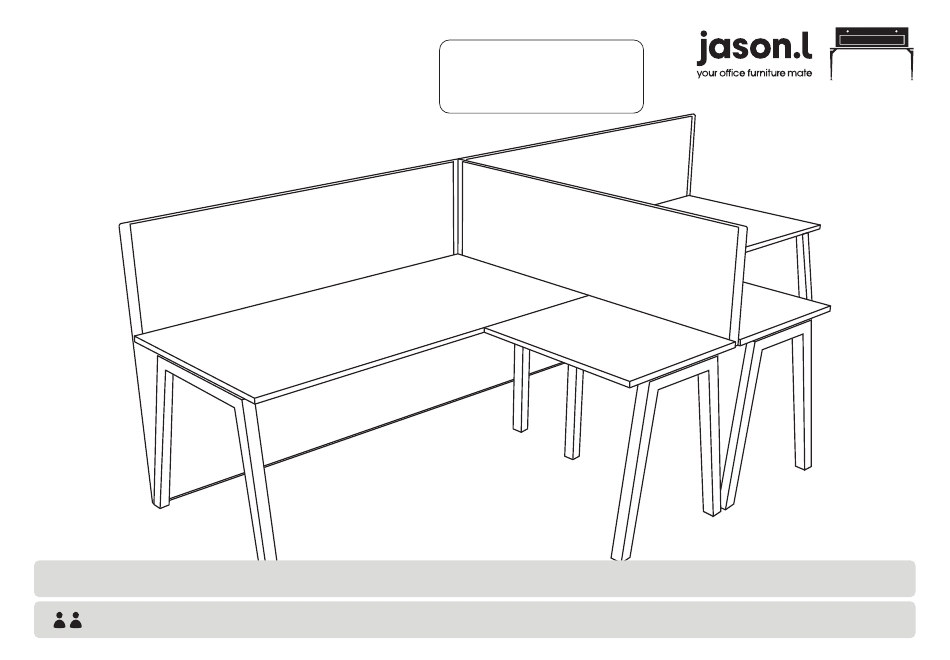

Quadro 2 Person Run
Need help!
with Return A Leg
Call us on
1300 527 665
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm
Tools Required:
Power screwdriver; Allen key set (provided)
2 persons required for installation
Page 1 of 11
Advertisement
Related Manuals for Jason.L Quadro
Summary of Contents for Jason.L Quadro
- Page 1 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 11...
-
Page 2: Need Help
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm COMPONENTS Table top x2 Table top Return x2 Legs Quadro A x4 Legs Quadro A Return x2 Connector frame x1 Beam: Main desk x2 Beam: Return x2 Plastic bracket x10 Joiner plates x4... - Page 3 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 01 STEP 02 Using Allen Key provided, attach M8x20MM Socket head (K)- Using Allen Key provided, attach 2 plastic brackets per leg...
- Page 4 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 03 Adjust extendable beam (F) to desired length using markers and secure beam...
- Page 5 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 04 TOP VIEW STEP 05 Attach beam (F) to legs (C) and Connector frame (E) Frame looks like this.
- Page 6 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 06 Now attach the return beams (G) to return legs (D) using nut insert in legs. See point attached.
- Page 7 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 07 Attach Connector Plates (I) to Return Top (B) by tightening Screws (N)
- Page 8 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 8 nut insert nut insert TABLE TOP nut insert nut insert BOTTOM VIEW Place table tops (A) on top of frame - with cutout at the back of the desk.
- Page 9 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 9 Desk based screen divider assembly instruction: Please position the screen so that it sits at the same level as the bottom surface of the desktop. Please adjust the screen position to make sure the screen end meet with the the desk end and please hold the screen.
- Page 10 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 10 side view Second person to drill 4 holes into the brackets holes with provided wood screws into the underneath desktop.
- Page 11 ASSEMBLY INSTRUCTIONS Quadro 2 Person Run Need help! with Return A Leg Call us on 1300 527 665 Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm STEP 11 Floor based screen divider assembly instruction: Using an Allen key remove top 3 caps from all screens uprights. Bring three partition towards one another and slide the 3 way connector rod - down between the three screen uprights.
