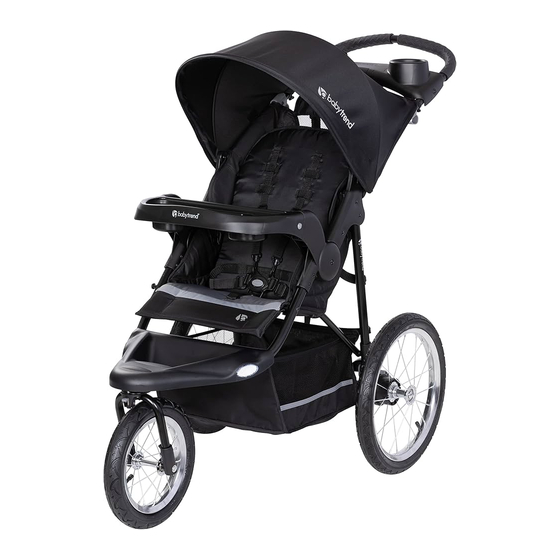

BABYTREND Expedition JG94 F Series Instruction Manual

Zero flat jogger with led lights
Hide thumbs

Advertisement

Quick Links

Download this manual
Baby Trend, Inc.
13048 Valley Blvd.
Fontana CA 92335
1-800-328-7363
(8:00 a.m. ~ 4:30 p.m. PST)
www.babytrend.com
JG94XXXF_2L_012524.1
Read all instructions BEFORE assembly and USE of product.
KEEP INSTRUCTIONS FOR FUTURE USE.
Lea todas las instrucciones ANTES de armar y USAR el
producto. CONSERVE LAS INSTRUCCIONES PARA USO FUTURO.
Expedition® Zero Flat Jogger
with LED Lights
Instruction Manual
Manual de Instrucciones
Parent Tray
+LED Lights
JG94XXXF

Advertisement

loading
Need help?

Need help?

Do you have a question about the Expedition JG94 F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BABYTREND Expedition JG94 F Series

Summary of Contents for BABYTREND Expedition JG94 F Series

  • Page 1 CONSERVE LAS INSTRUCCIONES PARA USO FUTURO. Expedition® Zero Flat Jogger with LED Lights Parent Tray +LED Lights Instruction Manual JG94XXXF Manual de Instrucciones Baby Trend, Inc. 1-800-328-7363 13048 Valley Blvd. (8:00 a.m. ~ 4:30 p.m. PST) www.babytrend.com Fontana CA 92335 JG94XXXF_2L_012524.1...

  • Page 2: Warranty

    Customer Service Department can be contacted at 1 (800) 328-7363 Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/ limited-warranty for complete warranty details. GARANTIA NO DEVUELVA SU PRODUCTO A LA TIENDA.
  • Page 3 PARTS PIEZAS WARNING WARNING: Check that you have all the parts for this model before assembling the stroller. Please follow all of these Verifique que tenga todas las piezas para este modelo antes de montar el carrito. instructions to ensure the safety of your child. Keep these instructions for future reference.
  • Page 4 ADVERTENCIA WARNING ADVERTENCIA: • NEVER use the stroller on stairways or escalators. Por favor, siga todas estas • NEVER use the stroller with roller skates, in-line skates, skateboards or instrucciones para garantizar la seguridad de su hijo. bicycles. Conserve estas instrucciones para referencia futura. •...
  • Page 5 ASSEMBLY MONTAJE ADVERTENCIA IMPORTANT! • El uso del carrito con niños que pesan más de 50 libras (22.67 kg) o To ensure safe operation of your stroller, please miden más de 42 pulgadas (106.7 cm) causará un desgaste y tensión follow these instructions carefully.
  • Page 6 ASSEMBLY MONTAJE ASSEMBLY MONTAJE The front wheel, rear wheels, fender, and parent tray need to be installed prior to use. INSTALLING THE FRONT WHEEL INSTALACIÓN DE LA RUEDA DELANTERA Antes del uso se deben instalar la rueda delantera, las ruedas traseras, el guardabarros y la bandeja para padres.
  • Page 7 ASSEMBLY MONTAJE ASSEMBLY MONTAJE TESTING FOR PROPER WHEEL • If you experience front wheel wobble that INSTALLATION is beyond what is normal for use while PARA VERIFICAR LA INSTALACION DE walking or jogging you may have to adjust the front wheel housing nut. This LAS RUEDAS nut is located under the footrest located at the -front of the jogger (Fig.
  • Page 8 ASSEMBLY MONTAJE ASSEMBLY MONTAJE REAR WHEEL FENDER GUARDABARROS RUEDA TRASERA Refer to step 7 as needed for replacement purposes. • Lean the stroller forward to rest on the front wheel. To attach the rear wheels, Underside push each wheel’s axle into the plastic corner fitting as shown in Fig. 8. Parte inferior Consulte el paso 7 según sea necesario para fines Depress the metal lever on the inside of the corner fitting as you push the...
  • Page 9 ASSEMBLY MONTAJE ASSEMBLY MONTAJE • Two AAA batteries required on each side of the parent tray: PARENT TRAY WITH LED LIGHTS To open battery slot, unscrew and slide the lid out from the BANDEJA PARA PADRES CON LUCES LED underside. Then, lift the lid to insert two AAA batteries (Fig. 9a). •...
  • Page 10 ASSEMBLY MONTAJE ASSEMBLY MONTAJE • To attach the parent tray, align the • Repeat for the other side (Fig. 9b). Secure the lid and screw it closed fittings on the ends of the parent tray with the fittings on the outsides of the (Fig.
  • Page 11 ASSEMBLY MONTAJE ASSEMBLY MONTAJE CANOPY • Use the buttons to attach the straps to the rear of the seat fabric (Fig. 10c). CUBIERTA • Use los botones para sujetar las • Insert the canopy into the stroller correas a la parte trasera de la tela del frame and ensure both sides click in asiento (Fig.
  • Page 12 ASSEMBLY MONTAJE ASSEMBLY MONTAJE CHILD TRAY • To open the canopy: pull forward on the front edge of the canopy. To close the canopy: push backwards on the front edge towards handle (Fig. 10d). BANDEJA PARA NIÑOS • Para abrir la cubierta: jale hacia delante el borde delantero. Para cerrar la “Underside”...

  • Page 13: Accessories Accesorios

    • Para reclinar el asiento, presione and Canada: EZ Flex-Loc 32. las pestañas de ajuste y tire hacia Compatibility is subject to revision time over time, please check babytrend.com for the lat- abajo mientras sostiene el aro. Para colocar el asiento en posición vertical, est compatibility lists.
  • Page 14 ACCESSORIES ACCESORIOS ACCESSORIES ACCESORIOS *Car Seat Sold Seperately WARNING: CS01 EZ-Lift, CS02 EZ-Lift PLUS and Avoid CS03 EZ-Lift PRO Infant Car Seats serious injury from falling or Car seats module connection sliding out, always use the Conexión de sillita para el automóvil Infant Car Seat harness.
  • Page 15 ACCESSORIES ACCESORIOS ACCESSORIES ACCESORIOS OTHER COMPATIBLE CAR SEATS *Car Seat Sold Seperately OTROS ASIENTOS DE COCHE COMPATIBLES Removing the car seat: Retirada de la silla de auto: • Put the stroller seat in the full recline position, See (Fig. 13). Turn car seat Press support tabs on the stroller frame NOTE: Set handle to the carry position...
  • Page 16 ACCESSORIES ACCESORIOS INFANT SILLITA PARA CAR SEAT EL AUTOMÓVIL BRAKES • When the infant car seat is locked firmly into place, secure the single short clip FRENOS over the infant car seat through the belt path on the infant car seat (Fig.16a). WARNING: is very important that the short clip is Always...
  • Page 17 SAFETY SEGURIDAD SAFETY SEGURIDAD FRONT WHEEL LOCK • To engage brakes, apply light downward pressure to the brake lever located on each BLOQUEO DE LAS RUEDA DELANTERAS rear wheel. The stroller may require slight WARNING: forward or rearward movement in order to line Always lock the front up the teeth on the brake with each wheel swivel wheel in STRAIGHT position before...
  • Page 18 SAFETY SEGURIDAD SAFETY SEGURIDAD TO SECURE THE CHILD •The shoulder straps of the 5-point harness have PARA SUJETAR AL NIÑO 3 attachment positions. Select the position that places the shoulder strap level with, or below the WARNING: top of the child’s shoulder (Fig. 19a). Avoid serious injury from falling or sliding out.
  • Page 19 SAFETY SEGURIDAD SAFETY SEGURIDAD TO RELEASE THE CHILD TO FOLD STROLLER PARA SOLTARLAS AL NIÑO PARA DESPLEGAR EL CARRITO Center Clasp Presilla central WARNING: Care must be • To release, push button on center clasp, the taken when folding the stroller to two harness buckles will pop free (Fig.
  • Page 20 FOLD PLEGAR FOLD PLEGAR JOGGING WITH YOUR STROLLER • Close the canopy as described in the canopy TROTAR CON SU CARRITO section. Recline seat by releasing buckle as described in seatback positioning section. WARNING: Never jog or run • The stroller is folded by simultaneously pulling with your newborn in the car seat each trigger fold (Fig.
  • Page 21 SAFETY SEGURIDAD SAFETY SEGURIDAD When you are jogging with your child, use TO UNFOLD STROLLER PARA DESPLEGAR EL CARRITO the following safety features: WARNING: Al trotar con su hijo, use las siguientes Care must be características de seguridad: taken when unfolding the stroller to prevent finger entrapment.
  • Page 22 ASSEMBLY MONTAJE MAINTENANCE MANTENIMIENTO • Stand the stroller on the ground with all three MAINTENANCE wheels touching the ground. Remove the fold MANTENIMIENTO latch, which is located on the right side (Fig. 24a). WHEEL ADJUSTMENT: • Apoye el carrito de modo tal que las tres •...
  • Page 23 OTHER OTRO OTHER OTRO Declaración de la FCC FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two Este dispositivo cumple con las normas de la Parte 15 de la Comisión Federal de Comuni- conditions: caciones (FCC).
  • Page 24 OTHER OTRO OTHER OTRO ® BABY TREND CUSTOMER SERVICE The Customer Service Department can be contacted at 1 (800) 328-7363 Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. ®...
