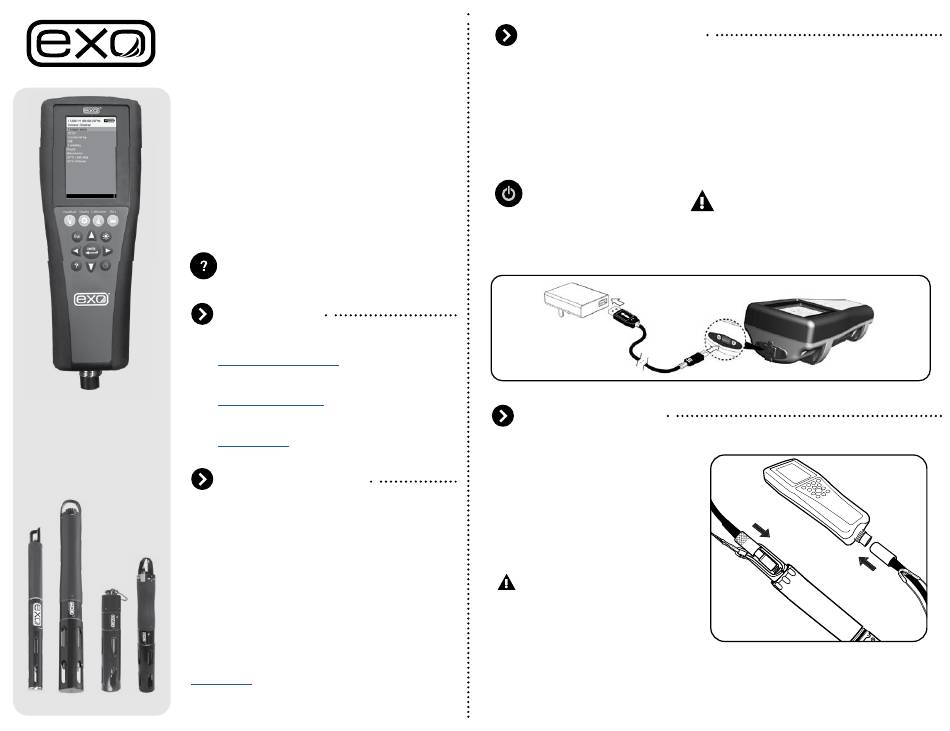

YSI exo 599960 Quick Start Manual

EXO Handheld Instrument
TM
Quick Start Guide
A superior handheld for
superior water quality monitoring.

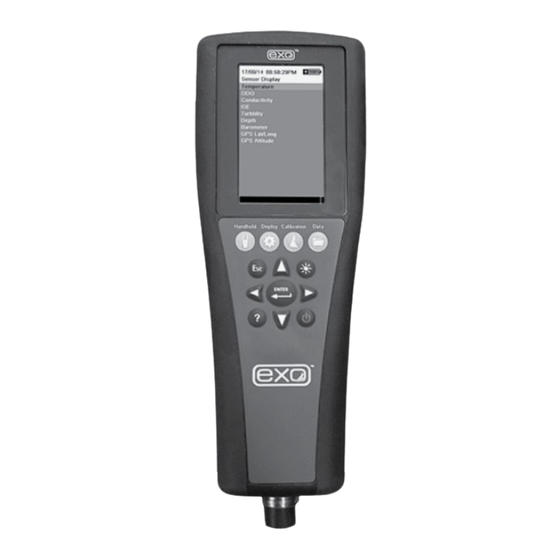

The EXO Handheld is a rugged, compact device that allows
the user to display sonde readings, configure sondes,
calibrate probes, store and retrieve data, and transfer data
from sondes to a computer.
This document will assist the user with
setting up an EXO Handheld.
EXO Handheld
YSI.com/EXO-HH
#599960
For use with EXO Sondes
Your shipment contains the following:
• New EXO Handheld • Micro USB cable
• AC power supply
• USB female to micro USB male adapter
Remove the equipment from the shipping box.
Check the packaging carefully to ensure that all
components are present.
If the handheld or any of the accessories are
damaged or if a part is missing, please contact:
info@ysi.com
For full instructions, please refer to
the built-in help screens.
Technical Support
Register your product:
www.ysi.com/warranty
Check for software updates:
www.EXOwater.com
Contact technical support:
info@ysi.com or +1 937-767-7241
Unpacking and Inspection
or +1 937-767-7241.
Powering on the EXO Handheld
The EXO Handheld is shipped with a lithium-
ion battery pack pre-installed. The battery
ships at ~30% full capacity, so it should be
charged before taking it out in the field. The
recommended charge period is 9 hours.
For fastest charging, first turn the
handheld on.
To turn the instrument on,
press the green power key.
The Dashboard will appear after
powering on the instrument.
Connecting the EXO
Handheld to an
AC power supply.
Connecting to the Sonde
1. Attach the cable to the sonde.
Press in the male 6-pin connector,
then screw down the retaining collar.
Attach the cable's strain relief to the
sonde's bail with a carabiner.
2. Attach the cable to the handheld.
Press on the female 6-pin connector,
and then screw down the
retaining collar.
Wet mate connectors should be
properly lubricated at all times to
ensure a proper seal.
3. The EXO handheld will automatically
connect to the sonde when the field
cable is secured.
Plug the USB connector into the AC power
adapter, computer USB connector or external
USB battery pack, and then plug the micro
USB connector into the EXO Handheld
instrument to charge the battery.
After charging, press and hold the power key
for 1.5 seconds to turn the Handheld off.
When the EXO Handheld is turned on, the
GPS function will automatically attempt to
initiate. The GPS location can only be fixed
when the handheld is stationary and outside.
A fixed GPS is not required for charging.
Connect to an EXO Sonde
