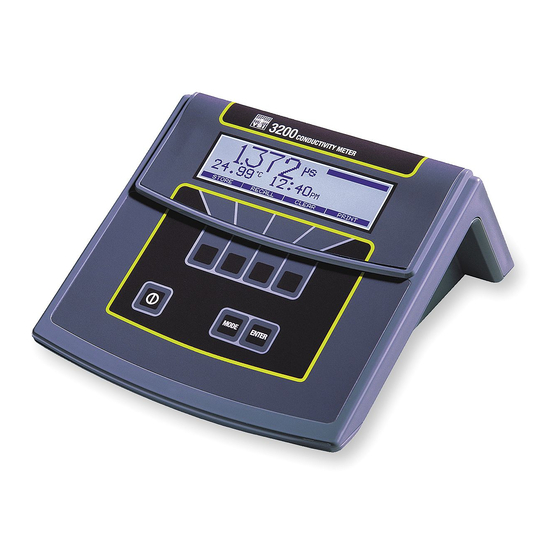

YSI 3200 Operation Manual

Conductance, resistance, salinity, total dissolved solids and temperature instrument
Hide thumbs
Table of Contents

Advertisement

Quick Links

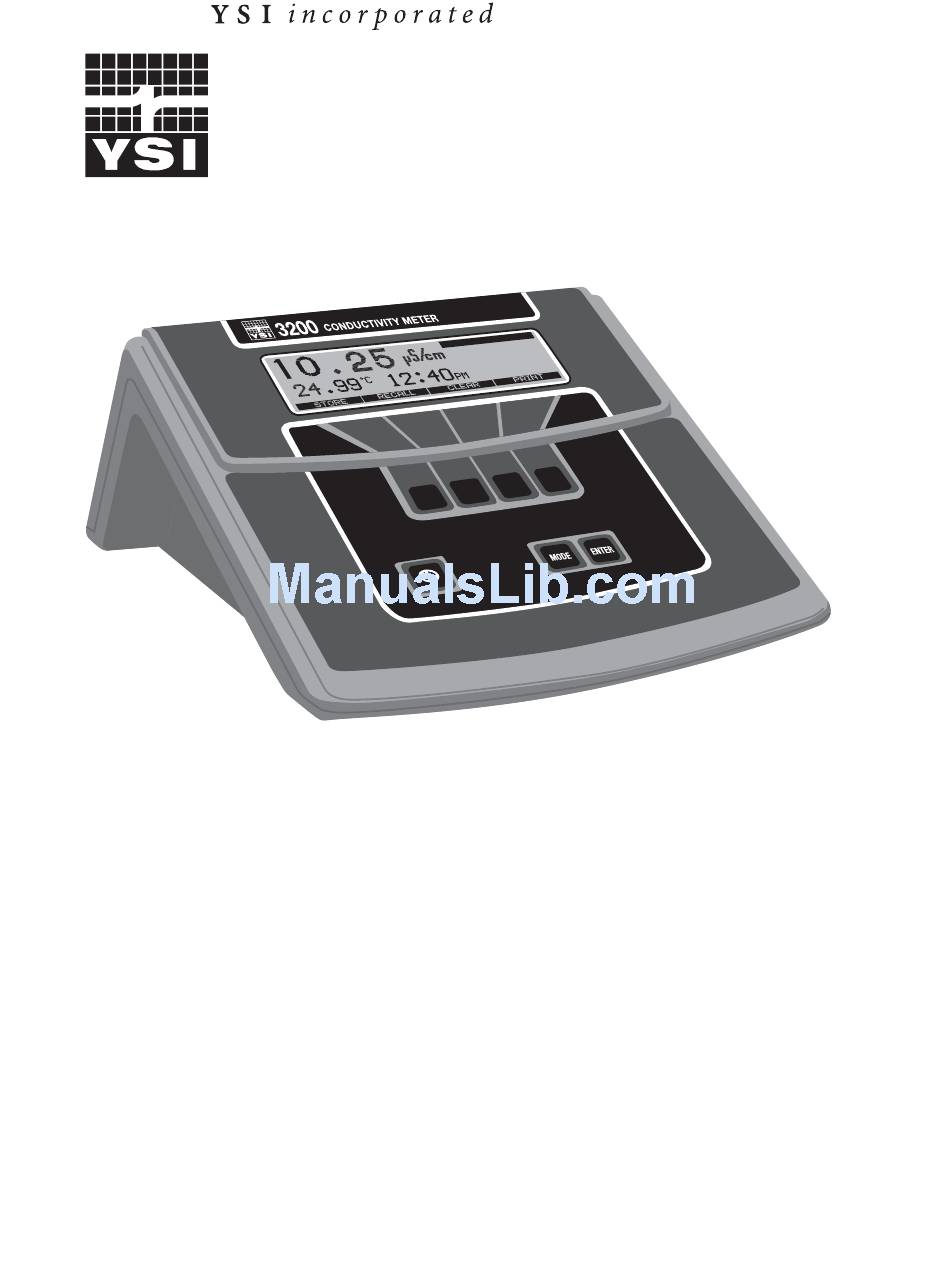

YSI Model 3200
Conductance,
Resistance,
Salinity,
Total Dissolved Solids and
Temperature Instrument
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200 and is the answer not in the manual?

Questions and answers

Related Manuals for YSI 3200

Summary of Contents for YSI 3200

  • Page 1 YSI Model 3200 Conductance, Resistance, Salinity, Total Dissolved Solids and Temperature Instrument Operations Manual...

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction .............................1 1.1 Capabilities ............................1 1.2 User Features ............................2 1.3 Controls.............................3 Front Panel ............................3 Rear Panel............................5 2. Getting Started ............................7 2.1 Unpacking............................7 2.2 Warranty Card...........................7 2.3 What You Need ..........................7 2.4 Setting Up ............................7 3. System Configuration and Operation....................11 3.1 Menu ...............................11 3.2 Cell Calibration..........................12 Configure............................12...
  • Page 4 9.1 Software Upgrade Procedure ......................58 9.2 Disassembly/Assembly Procedures ....................59 9.3 Test and Verification Procedure .....................60 10. Accessories and Replacement Parts....................63 10.1 YSI Conductivity Cells .........................64 10.2 Standard Calibrator Solutions .......................65 Appendix A - Specifications ........................67 Appendix B - Required Notice........................69 Appendix C - RS232 Connections ......................71...

  • Page 5: Section 1 Introduction

    The instrument’s menu system makes it simple to use. The new YSI 3200 series conductivity cells contain internal temperature sensors for temperature measurement and automatic temperature compensation. The Model 3200 is compatible with YSI 3400 series conductivity cells when used with the YSI Model 3232 cell adapter.

  • Page 6: User Features

    • Single or multi-point cell calibration The cell constant can be calibrated at several points and stored in permanent memory. During a reading, the closest calibration point is used as the cell constant. • High/low alarm YSI Incorporated Model 3200...

  • Page 7: Controls

    FRONT PANEL The front panel of the instrument contains the display and keypad as shown below. 3200 CONDUCTIVITY INSTRUMENT OPERATION 1.372 Display 12:40 24.99°c CELL SETUP DIAG RANGE Soft keys Power ENTER Key ON/OFF MODE Key YSI Incorporated Model 3200...
  • Page 8 Introduction Section 1 The 3200 has two main operating modes, Data and Operation. The current mode is displayed in the dark bar at the top right corner of the display. The following diagram shows the typical display while the instrument is in the Operation mode.

  • Page 9: Rear Panel

    YSI 3200 series cells utilize a mini DIN connector that plugs directly into the 3200. If, however, you have a YSI 3400 series cell, the YSI 3232 cell adapter and a YSI 3220 or YSI 700 series temperature probe will be required. The YSI 3232 cell adapter mounts on the post on the rear of the 3200.
  • Page 10 All YSI 3200 series cells contain an internal temperature sensor; therefore, an external temperature probe is NOT necessary when using a 3200 series cell. However, if an external temperature probe is used with a YSI 3200 series cell, the external temperature probe will override the temperature sensor in the cell.

  • Page 11: Getting Started

    SECTION 2 GETTING STARTED UNPACKING When you unpack your new YSI Model 3200 for the first time, check the packing list to make sure you have received everything you should have. If there is anything missing or damaged, call the dealer from whom you purchased the Model 3200. If you do not know which of our authorized dealers sold the system to you, call YSI Customer Service at 800-765-4974 or 937- 767-7241, and we'll be happy to help you.
  • Page 12 [UP], [DOWN] and [DIGIT] soft keys. After you have entered the correct date and time, press the [MODE] key two times to save and exit to the Setup menu. YSI Incorporated Model 3200...
  • Page 13 Getting Started Section 2 3. Connect the Cell Plug the cell (YSI 3200 series) into the connector on the back of the instrument marked cell. NOTE: If you are using a YSI 3400 series cell, you will need the following: •...
  • Page 14 After setting up the 3200 instrument and cell as described above, the following basic steps should be used to make measurements. 1. Immerse the cell (YSI 3200 series) in the solution to be measured. If using a YSI 3400 series cell, also place the temperature probe in the solution.

  • Page 15: System Configuration And Operation

    SECTION 3 SYSTEM CONFIGURATION AND OPERATION MENU The following section shows the software flow chart for the 3200. The two operating modes, Data and Operation, are shown at the top with the soft key functions that are accessed in each mode below them.

  • Page 16: Cell Calibration

    The cell constant of up to six different cells (# 0 - 5) can be stored in non-volatile memory. The 3200 can determine the cell constant for a cell at a single point or up to five points using different standard solutions.
  • Page 17 10uS to offset cell lead insulation resistance. This value can only be changed from the Offset menu. 0.001 - 100.999 Single fixed cell constant value (K). This value is only used when the Cell Cal field is set to Single. YSI Incorporated Model 3200...

  • Page 18: Cal K

    5. Using the [UP], [DOWN] and [DIGIT] soft keys, enter the value of the standard solution at the current temperature. Temperature compensation is OFF during cell calibration. Example: YSI 3161 Conductivity Calibrator is 1000uS at 25°C, but at 23°C you would enter 961uS.
  • Page 19 5. Using the [UP], [DOWN] and [DIGIT] soft keys, enter the value of the standard solution at the current temperature. Temperature compensation is OFF during cell calibration. Example: YSI 3161 Conductivity Calibrator is 1000uS at 25°C, but at 23°C you would enter 961uS.

  • Page 20: Temperature Compensation

    Offset When measuring conductance below 10uS (resistance above 100KΩ), the insulation resistance of the cell leads may be a source of error. This error may be greatly reduced by allowing the 3200 to calculate and store a zero offset value.

  • Page 21: Temp

    To calculate and store the linear temperature compensation coefficient: 1. Verify that the current configuration contains the correct cell constant for the current cell. 2. Clean the container and YSI 3200 Series cell (or YSI 3400 Series and temperature probe) with deionized water.
  • Page 22 To calculate and store the non-linear temperature compensation curve: 1. Verify that the current configuration contains the correct cell constant for the current cell. 2. Clean the container and YSI 3200 Series cell (or YSI 3400 Series and temperature probe) with deionized water.

  • Page 23: Platinization

    From the Cell Temp menu, the [SEND] soft key may be used to send the current temperature compensation data to a computer or serial printer via the RS232 port. PLATINIZATION The 3200 can be used to replatinize the electrodes of the cell. See section 6.2 Platinization for details. DISPLAY CONFIGURATION The 3200 display is extremely flexible.

  • Page 24: Measurement Units

    Selection of fields is important, even if only the large display is used, because, when a reading is stored in the 3200 memory, the date, time, temperature and conductivity are stored, along with the first two additional fields (fields other than date, time, temperature and conductivity) currently on the display.

  • Page 25: Contrast

    [MODE] to save and exit to the Setup menu. Press [MODE] again to return to the Operation menu. ALARMS The 3200 has both high and low user programmable alarms. When an alarm is triggered, the 3200 screen will display “ ” and can also be set to beep and/or ALARM! READINGS OUT OF LIMITS send the information to a computer or serial printer via the RS232 port.

  • Page 26: Beeper

    RS232 serial port, see 4.3 Send, Send Setup. BEEPER The 3200 contains a beeper to indicate when a key has been pressed. The beeper may be turned on or off from the Setup Sys menu. Press the [SETUP] soft key, while Operation mode, then press [SYSTEM] to enter the Setup Sys menu .

  • Page 27: Ranging

    The Range menu allows the user to select between Auto and Manual ranging. The default is autoranging, where the 3200 will automatically select the range that displays the highest resolution for the sample being measured. Since this automatic selection takes time, the user may select manual ranging when measuring several samples that fall into the same range.
  • Page 28 TDS or salinity, as you change ranges, the display will automatically select the best resolution and the hardware range change will not be visible. Example: With the 3200 in manual range mode, 9.50 - 99.99mS range, the display is as follows: 1017 10.27...

  • Page 29: Making Measurements

    After setting up the 3200 instrument and cell as described earlier, the following basic steps should be used to make measurements. 1. Make sure that the 3200 is setup to read the units you wish to measure in (conductance, conductivity, resistivity, etc.). To change the units see section 3.5 Display Configuration, Measurement Units.
  • Page 30 System Configuration and Operation Section 3 YSI Incorporated Model 3200...

  • Page 31: Data Storage And Retrieval

    DIGIT STORE The Store menu is used to control the storing of data. The 3200 can store 100 readings (records 0 - 99). The current record number and status are shown in the display on the right side. Press the [STORE] soft key to store the current readings. The message will “RECORD STORED”...

  • Page 32: Review

    13.15 24.38° uS/cm [ 0] FULL 69.70 Kohm-cm K=1.090 1.91%/°C RECALL SEND ALL CLEAR CLR ALL Review is used to recall stored readings (records), send stored readings via the RS232 serial port or delete stored readings. YSI Incorporated Model 3200...

  • Page 33: Recall

    Use the [UP], [DOWN] and [DIGIT] soft keys to select the record that you want to delete. Press the [DELETE] soft key to delete the selected record. YSI Incorporated Model 3200...

  • Page 34: Clear All

    Press [ENTER] to confirm your decision and delete ALL stored data. Press [MODE], instead of [ENTER], if you wish to abort. NOTE: There is NO way to restore data once it has been deleted. Press [MODE] two times to return to Operation mode. YSI Incorporated Model 3200...

  • Page 35: Send

    Use the [NEXT] soft key to select between the Serial device and Baud rate fields. Use the [UP] or [DOWN] soft key to change the parameter. The Serial device can be set to computer or printer. YSI Incorporated Model 3200...
  • Page 36 12/12/97, 12:34:56AM, 0# ,1.23%/C, 12.34C , 1234uS/cm ,0.12ppt Space Delimited Format, send (recalled data) 0 3/20/97 5:37:17PM 1234uS/cm 23.45C K=0.09 1.91%/C 9999uS 1 3/20/97 5:46:15PM 1234uS/cm 23.45C K=0.09 1.91%/C 9999uS 2 3/20/97 5:57:34PM 1234uS/cm 23.45C K=0.09 1.91%/C 9999uS YSI Incorporated Model 3200...

  • Page 37: Data Logging

    RS232 serial port. This allows data to be logged to a computer or serial printer. The S interval is the number of seconds between transmissions. For example, if the S interval is set to 30, every 30 seconds the 3200 will send the current readings over the RS232 port.
  • Page 38 [ ] Cell config [ ] Compensation [30] S interval DOWN DIGIT NEXT After you have entered the S interval value, press [MODE] once, to return to the Send Setup menu, or three times to return to Operation mode. YSI Incorporated Model 3200...

  • Page 39: Diagnostics

    The legible text will tell you what baud rate setting to use. Press the [QUIT] soft key to exit, then program the 3200 for the legible baud rate. See 4.3 Send, Send Setup.
  • Page 40 Diagnostics Section 5 YSI Incorporated Model 3200...

  • Page 41: Maintenance

    PLATINIZATION The 3200 can be used to replatinize the electrodes of the cell. From Operation mode, press the [CELL] soft key, to enter the Cell menu, then, press the [PLATIN] soft key to enter the Platinize menu and display the following screen.
  • Page 42 2. Use the [UP], [DOWN] and [DIGIT] soft keys to enter the platinization time required in minutes. Six minutes is usually sufficient for most electrodes. 3. Immerse the cell in the platinizing solution (YSI 3140). Make sure that both electrodes are submerged.

  • Page 43: Troubleshooting

    In manual ranging mode. The currently selected conductance range is reading outside its limit. ALARM! READINGS OUT OF LIMITS This is NOT an error. The user has enabled the alarm and the current reading has triggered the alarm. See 3.5 Display Configuration, Alarms. YSI Incorporated Model 3200...
  • Page 44 Troubleshooting Section 7 YSI Incorporated Model 3200...

  • Page 45: Principles Of Operation

    Conductivity (ℵ), or specific conductance, is the conductance per unit of conductor length. For our purposes, conductivity is defined as the conductance in mhos or siemens measured across the sides of a one-centimeter cube of liquid at a specified temperature. YSI Incorporated Model 3200...

  • Page 46: Cell Constant

    (d) to the area normal to the current flow (A). Cells with constants of 1.0/cm or greater normally have small, widely-spaced electrodes, while cells with constants or 0.1/cm YSI Incorporated Model 3200...

  • Page 47: Choosing A Conductivity Cell

    Conductivity The chart above reflects general guidelines. Refer to cell specifications for details. The multipoint calibration option on the YSI Model 3200 Conductivity Instrument gives greater flexibility and performance when using one cell over a wide conductivity range. This feature allows users to calibrate one cell with up to 5 different conductivity standard solutions.
  • Page 48 Principles of Operation Section 8 3252 3253 3254 3255 3256 YSI Incorporated Model 3200...

  • Page 49: Cell Constant Calculation

    Section 8 CELL CONSTANT CALCULATION YSI 3200 and 3400 Series conductivity cells are calibrated to ± 1% of nominal by means of a YSI transfer standard traceable to OIML Recommendation 56 and NIST. Anytime the condition of the conductivity cell changes, it is possible that the cell constant has also changed.

  • Page 50: Conductivity Law

    Cell series and shunt capacitance • Galvanic effects Only the first four are of major concern for typical measurements, although the user should also be careful to see that cells are clean and maintained in good condition at all times. YSI Incorporated Model 3200...

  • Page 51: General Conductivity Measurement Precautions

    Replatinizing The 3200 can be used to replatinize a cell that utilizes electrodes coated with platinum. See section 6.2 Platinization. You will need a 2-oz bottle of platinizing solution (YSI 3140). TEMPERATURE CORRECTION By convention, the conductivity of a solution is the conductivity it exhibits at 25°C.
  • Page 52 α = temperature coefficient of the conductivity solution Prestored Temperature Compensation Curves The YSI 3200 has two pre-stored non-linear temperature compensation curves, ultrapure water and natural water. These curves were obtained from the following references: Ultrapure water: Conductivity and Resistivity of Water from the Melting to Critical Points, Truman S.

  • Page 53: Small Sample Measurements

    For this application, use the 3254 fill cell. This cell requires 5 ml of sample. Alternatively, any 3200 or 3400 Series cell, except the 3418, may be inverted and used as a fill cell.

  • Page 54: Salinity

    TEMPERATURE The Model 3200 system utilizes a thermistor of sintered metallic oxide that changes predictably in resistance with temperature variation. The algorithm for conversion of resistance to temperature is built-in to the Model 3200 software, and accurate temperature readings in degrees Celsius or Fahrenheit are provided automatically.

  • Page 55: Electrical-Noise Errors

    YSI 3200 series cells utilize a 4-wire connection virtually eliminating errors due to contact resistance. When using the YSI 3232 cell adapter to connect a 2-wire cell (such as the YSI 3400 series cells), contact resistance can be a source of error when measuring high conductivity. Lugs should be clean and free of mechanical distortion.
  • Page 56 Principles of Operation Section 8 YSI Incorporated Model 3200...

  • Page 57: Warranty & Repair

    Limitation of Warranty This Warranty does not apply to any YSI product damage or failure caused by (i) failure to install, operate or use the product in accordance with YSI’s written instructions, (ii) abuse or misuse of the product, (iii) failure to maintain the product in accordance with YSI’s written instructions or standard...
  • Page 58 Section 9 AUTHORIZED U.S. SERVICE CENTERS FOR THE NEAREST AUTHORIZED SERVICE CENTER, CONTACT: YSI Technical Support • 1725 Brannum Lane • Yellow Springs, Ohio 45387 Phone: +1 (937) 767-7241 • (800) 897-4151 (US) • Fax: (937) 767-1058 Email: environmental@ysi.com • www.ysi.com...
  • Page 59 Warranty and Repair Section 9 YSI Incorporated Model 3200...

  • Page 60: Cleaning Instructions

    Disposition costs will be the responsibility of the sender. When service is required, either at the user's facility or at YSI, the following steps must be taken to insure the safety of our service personnel.

  • Page 61: Packing Instructions

    Country __________________ Phone Model No. of Device ______ Lot Number Contaminant (if known) Cleaning Agent(s) used Radioactive Decontamination Certified? (Answer only if there has been radioactive exposure) ___ Yes ___ No Cleaning Certified By Name Date YSI Incorporated Model 3200...

  • Page 62: Software Upgrade Procedure

    All that is needed is any standard communications software, new 3200 software and a straight RS232 serial cable (not a null modem cable). The 3200 has a female DB-9 connector. A 9 to 25 pin adapter will also be needed if the computer has a 25 pin serial port. The instructions are as follows: 1.

  • Page 63: Disassembly/Assembly Procedures

    Hook the three snaps at the rear of the case into place and rotate the lower case into place on the upper case. Make sure all four snaps are fully engaged. Press firmly down on the three rear snaps to make sure they are completely engaged. YSI Incorporated Model 3200...

  • Page 64: Test And Verification Procedure

    Warranty and Repair Section 9 TEST AND VERIFICATION PROCEDURE Connect the YSI Model 3200 as shown in the Test and Verification Figure and follow the charts below to verify its accuracy. Equipment Required: If using the YSI 3166 Precision Calibrator Set to simulate conductance, a YSI 3232 adapter is required for proper connection to the cell connector.
  • Page 65 407.1 Ω ± .25% 100.00 ± .20 ** Input temperature resistances either via the EXT. TEMP connector or via pins 1 & 2 of the mini DIN connector, not both. See the following figure, Test and Verification. YSI Incorporated Model 3200...
  • Page 66 Temp. Probe Decade Thermistor Resistance 3200’s External 6KΩ @ 25 Temperature Connector RS-232 CELL EXT. TEMP 12.0 3200 Rear Panel Black Decade Cell Thermistor Resistance Green 10K Ω@ 25 Brown (Drive) Blue (Sense) YSI 3166 or Decade White (Sense) Resistance Yellow (Drive) Cable, Mini DIN Conn.

  • Page 67: Accessories And Replacement Parts

    Extension, Switch 003224 Operations Manual 052021 RS232 Cable, DB9 For computer 003229 Cable Assy, Cell 7-pin mini DIN to pigtail 3232 Cell adapter For YSI 3400 Series cells 3166 Calibrator resistor set Requires 3232 cell adapter YSI Incorporated Model 3200...

  • Page 68: 10.1 Ysi Conductivity Cells

    25 mm 21 mm 76 mm 7740 The nominal volumes of the cells are 15 ml for the YSI 3445 and 30 ml for the YSI 3255 and 3446 and 5 ml for the YSI 3254. YSI, Incorporated Model 3200...

  • Page 69: 10.2 Standard Calibrator Solutions

    Accessories and Replacement Parts Section 10 10.2 STANDARD CALIBRATOR SOLUTIONS YSI manufactures NIST-traceable conductivity calibrator solutions for calibration purposes. The following conductivity calibrator solutions are available from YSI. Part Number Size Conductivity at 25.00°C µ mho/cm ± 0.50% 3161 1 quart 1,000 µ...
  • Page 70 Accessories and Replacement Parts Section 10 YSI, Incorporated Model 3200...

  • Page 71: Appendix A - Specifications

    40 Hz 10.0 - 29.9 MΩ 0.1 MΩ Salinity Range Accuracy Resolution ±.1 ppt 0-80 ppt (NaCl) 0.1 ppt Range Accuracy Resolution 0-19,999 mg/L 0.50% 1 mg/L Temperature Range Accuracy Resolution ±0.1°C -5 - 100°C 0.01°C YSI Incorporated Model 3200...
  • Page 72 7 pin Mini Din Platinizing capability Included Power AC, 115V, 220V Approvals UL, CSA, CE Environmental requirements 95% RH non-cond Size 9 x 9.5 x 4.4 inches 22.9 x 24.1 x 11.2 cm Weight 2.6 pounds 1.1 kg YSI, Incorporated Model 3200...

  • Page 73: Appendix B Required Notice

    The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 0004-000-00345-4. YSI Incorporated Model 3200...
  • Page 74 Required Notice Appendix B YSI, Incorporated Model 3200...

  • Page 75: Appendix C - Rs232 Connections

    NP-104-S-RNR Printer without batteries Serial Computer Connection A standard straight (NOT a null modem) cable is required for connecting to a computer RS232 serial port. The 3200 requires a male DB9 connector. 3200: 9 pin d-sub (male) Computer: 9 pin d-sub...
  • Page 76 RS232 Connections Appendix C YSI, Incorporated Model 3200...

  • Page 77: Appendix D - Temperature Correction Data For Typical Solutions

    37.5 1.771 2.03 37.5 0.186 2.08 1.845 2.05 0.194 2.09 1.997 2.07 0.210 2.11 2.151 2.09 0.226 2.13 ** Charts developed by interpolating data from International Critical Tables, Vol. 6, pp. 229-253, McGraw-Hill Book Co., NY. YSI, Incorporated Model 3200...
  • Page 78 0.137 2.15 0.151 2.19 37.5 0.158 2.20 0.165 2.22 0.180 2.25 0.195 2.29 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. YSI, Incorporated Model 3200...
  • Page 79 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. ** Charts developed by interpolating data from International Critical Tables, Vol. 6, pp. 229-253, McGraw-Hill Book Co., NY. YSI, Incorporated Model 3200...
  • Page 80 2.06 1.860 2.10 0.194 2.07 2.020 2.14 0.210 2.11 2.186 2.18 0.227 2.15 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. YSI, Incorporated Model 3200...

  • Page 81: Appendix E - Conversion Factors

    (K), observing the dimensions of the constant. RESISTIVITY OF CONDUCTIVITY SOLUTIONS 100,000 µS/cm = 10 ohm cm 50,000 µS/cm = 20 ohm cm 10,000 µS/cm = 100 ohm cm 1,000 µS/cm = 1000 ohm cm YSI, Incorporated Model 3200...
  • Page 82 Conversion Factors Appendix E YSI, Incorporated Model 3200...

  • Page 83: Appendix F - Glossary Of Terms

    (m) - The metric prefix indicating 10 -3 . NIST - National Institute of Standards and Technology. The US government agency that defines measurement standards in the United States. ohm (Ω) - SI unit of resistance YSI, Incorporated Model 3200...
  • Page 84 - An adjustment made to a measurement to compensate for the difference between the measured and nominal temperatures. temperature coefficient - The change in any particular physical quantity per degree change in temperature. voltage - Electromotive force or potential expressed in volts. YSI Incorporated Model 3200...
  • Page 85 Glossary of Terms Appendix F YSI Incorporated Model 3200...
  • Page 86 1700/1725 Brannum Lane Yellow Springs, Ohio 45387 USA (800) 765-4974 • (937) 767-7241 FAX (937) 767-9353 Email: environmental@ysi.com Website: www.YSI.com ITEM # 003224 – Web DRW # A03224 Revision F April 1999...
