- Page 1 Operating Instructions Fronius Smart Meter TS 65A-3 EN-US Operating instructions 42,0426,0349,EA 018-16072024...
-
Page 3: Table Of Contents
Error messages Commissioning Fronius SnapINverter General Connect to Fronius Datamanager 2.0 Configuring the Fronius Smart Meter TS as the primary meter Configuring the Fronius Smart Meter TS as a secondary meter Fronius GEN24 inverter General Installation using the web browser... -
Page 5: Safety Instructions
Safety Instructions... -
Page 7: Safety Rules
Safety rules Explanation of DANGER! Safety Instruc- tions Indicates an immediate danger. ▶ Death or serious injury may result if appropriate precautions are not taken. WARNING! Indicates a possibly dangerous situation. ▶ Death or serious injury may result if appropriate precautions are not taken. CAUTION! Indicates a situation where damage or injury could occur. -
Page 8: Environmental Conditions
Any safety devices that are not functioning properly must be repaired by an au- thorized specialist before the device is switched on. Never bypass or disable protection devices. For the location of the safety and danger notices on the device, refer to the sec- tion headed “General”... -
Page 9: General Information
General information... -
Page 11: Fronius Smart Meter

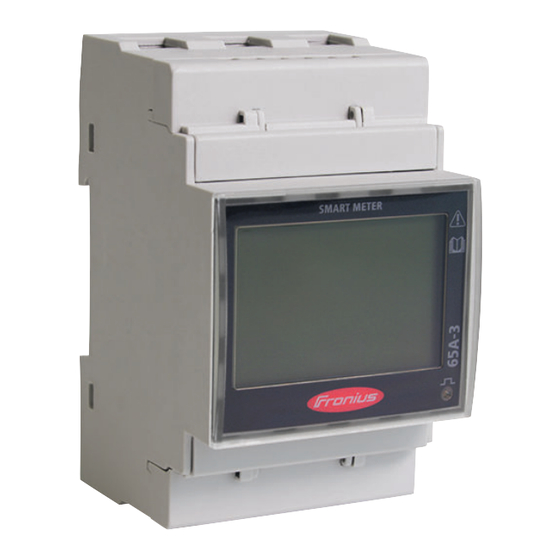

Fronius Smart Meter TS 65A-3 Device descrip- The Fronius Smart Meter TS is a bidirectional electricity meter which optimizes tion self-consumption and records the household's load curve. The Fronius Smart Meter TS provides a clear overview of a user's own power consumption in con- junction with the Fronius inverter, Fronius Datamanager, and Fronius data inter- face. -
Page 12: Information On The Device
Dangerous electrical voltage. Intended use The Fronius Smart Meter TS is a fixed piece of equipment for public grids of TN/TT systems and records self-consumption and/or individual loads in the sys- tem. The Fronius Smart Meter TS is required for systems with a battery storage... -
Page 13: Scope Of Supply
The installation is carried out on an indoor DIN rail with cor- responding back-up fuses, which are adapted to the cable cross-sections of the copper conductors and to the maximum current of the meter. The Fronius Smart Meter TS must only be operated in accordance with the specifications in the en- closed documentation and in accordance with local laws, regulations, provisions, standards, and within the limits of technical possibilities. - Page 14 Positioning at the feed-in point Positioning at the consumption point...
-
Page 15: Installation
Installation... -
Page 17: Installation
The update can be started via the in- verter web page or using Solar.web. If several Fronius Smart Meter TS are installed in the system, set the address "Setting the address on the Fronius Smart (see "Setting the address"... -
Page 18: Cabling
The Fronius Smart Meter TS consumes 10 - 30 mA, the nominal capacity of the disconnecting devices and the overcurrent protection is determined by the wire thickness, the mains voltage, and the required breaking capacity. Disconnecting devices must be mounted within sight and as close as possible to the Fronius Smart Meter TS;... -
Page 19: Fitting The Protective Cover For The Terminals
Connecting the Connect the data communication connections of the Fronius Smart Meter TS to data communic- the Modbus interface of the Fronius inverter using a network cable (type CAT5 ation cable to or higher). the inverter... -
Page 20: Terminating Resistors - Explanation Of Symbols
Use a mutual twisted cable pair for corresponding data lines (D+/D-, M0+/ M0-). On Fronius GEN24 inverters, the M0 and M1 inputs can be selected for this purpose. If the data lines are close to the mains cabling, use wires or cables that are designed for 300 to 600 V (never less than the operating voltage). -
Page 21: Connecting The Terminating Resistor
Connecting the The terminating resistor is integrated terminating res- in the Fronius Smart Meter TS and is istor manufactured with a bridge between the M and T connections (T = termina- tion). Terminating res- Due to interference, it is recommended that terminating resistors are used as il- istors lustrated below to ensure proper functioning. -
Page 22: Mounting The Connection Cover
* The terminating resistor is integrated in the Fronius Smart Meter TS and is manufactured with a bridge between the M and T connections (T = termination). Mounting the Insert the connection covers into the connection cover guides and press firmly. -
Page 23: Multi Meter System - Explanation Of Symbols
Secondary meter Records the load curve of individual loads (e.g. washing machine, lights, television, heat pump, etc.) in the consumption branch and makes the measured data available for energy profiling in Fronius Solar.web. Producer meter Records the load curve of individual producers (e.g. wind power plant) in the consumption branch and provides measurement data for energy profiling in Fronius Solar.web. -
Page 24: Multi-Meter System - Fronius Snapinverter
Ohmpilot meters meters Multi-meter sys- If several Fronius Smart Meter TS are installed, a separate address must be set tem - Fronius Setting the address on the Fronius Smart Meter TS on page 31). for each (see SnapINverter The primary meter is always assigned address 1. -
Page 25: Modbus Participant - Fronius Gen24
Terminating resistors must be positioned individually for each channel. Modbus parti- The inputs M0 and M1 can be freely selected. A maximum of 4 Modbus parti- cipant - Fronius cipants can be connected to the Modbus terminal on the inputs M0 and M1. GEN24... -
Page 26: Multi-Meter System - Fronius Gen24 Inverter
Ohmpilot meters meters Multi-meter sys- If several Fronius Smart Meter TS are installed, a separate address must be set tem - Fronius for each (see Setting the address on the Fronius Smart Meter TS on page 31). GEN24 inverter The primary meter is always assigned address 1. -
Page 27: Menu - Measured Variables
The following must be observed in a multi-meter system: Connect the primary meter and the battery to different channels (recom- mended). The remaining Modbus participants must be distributed equally. Only assign each Modbus address once. Terminating resistors must be positioned individually for each channel. Menu - Measured Scree variables... - Page 28 Scree Image Description Total active energy drawn* Total reactive power Total reactive energy supplied** Total reactive power Total active energy drawn** Total apparent power Total active energy drawn* Maximum demanded power (P = Peak de- mand) that has been reached since the last reset.
- Page 29 Scree Image Description Apparent power Reactive energy drawn Power factor (L = inductive, C = capacit- ive) Phase voltage Conductor voltage Current Effective power Displayed when easy connection mode is activated (measurement = A). This value indicates the total energy without considering the direction. Factory setting - displayed when drawn and delivered energy are meas- ured separately (measurement = b).
-
Page 30: Configuration Menu - Structure And Parameters
Configuration Screen Code Description Values menu - structure PASS*** Enter the current password 2633* and parameters nPASS Password change ** Four digits (0000-9999) SYStEM Type of system 3Pn*: three-phase system, 4-core 3P: three-phase system, 3- core 2P: two-phase system, 3- core MEASurE Measurement mode **... -
Page 31: Setting The Address On The Fronius Smart Meter Ts
Setting the ad- Symbol Name Event Function dress on the Scroll one screen forward, increase the Fronius Smart value by 1 Meter TS Down Scroll one screen back, decrease the value by 1 Enter Call up settings, confirm value 2 seconds Press and hold "Enter"... -
Page 33: Commissioning
Commissioning... -
Page 35: Fronius Snapinverter
The service password must be entered in order to access the "Meter" menu item. Three-phase or single-phase Fronius Smart Meter TS can be used. In both cases, the selection is made under the "Fronius Smart Meter" item. The Fronius Datamanager automatically identifies the meter type. -
Page 36: Configuring The Fronius Smart Meter Ts As A Secondary Meter
In the pop-up window, set the position of the meter (feed-in point or con- sumption point). For more information on the position of the Fronius Smart Positioning on page 13. Meter TS, see Click the "Ok" button when the OK status is displayed. If the Timeout status is displayed, try again. -
Page 37: Fronius Gen24 Inverter
"Device configura- tion" menu item. Three-phase or single-phase Fronius Smart Meter TS can be used. In both cases, the selection is made under the "Components" menu area. The meter type is de- termined automatically. A primary meter and several secondary meters can be selected. The primary meter needs to be configured first before a secondary meter can be selected. -
Page 38: Configuring The Fronius Smart Meter Ts As The Primary Meter
Follow the installation wizard in the individual sections and complete the in- stallation. Add the system components in Fronius Solar.web and start up the PV sys- tem. The network wizard and the product setup can be carried out independently of each other. - Page 39 Enter the name of the meter in the "Name" input field. In the "Category" drop-down list, select the category (producer or load). Click the "Add" button. Click the "Save" button to save the settings. The Fronius Smart Meter TS is configured as a secondary meter.
-
Page 40: Technical Data
Technical data Technical data Modbus transmission speed: 9600 baud Parity bit:none Software version: Fronius Datamanager 2.0 (from version 3.16.1 onwards) Fronius Symo Hybrid (from version 1.16.1 onwards) Measuring input Nominal voltage 208 - 400 V Operating range 166.4 - 480 V Power consumption in the voltage ≤... - Page 41 Insulation (EN IEC 62052-11, EN IEC 62053-21) Insulation voltage 4 kVAC RMS (1min) Electromagnetic compatibility Emission test In acc. with EN IEC 62052-11, EN 50470-3 Immunity test In acc. with EN IEC 62052-11, EN 50470-3 Operating conditions Reference temperature 25 °C (±5 °C) Operating range -25 bis +55 °C Temperature limit for storage and...
-
Page 42: Fronius Manufacturer's Warranty
Fronius manu- Detailed, country-specific warranty conditions are available atwww.fronius.com/ facturer's war- solar/warranty. ranty To obtain the full warranty period for your newly installed Fronius product, please register at www.solarweb.com.
