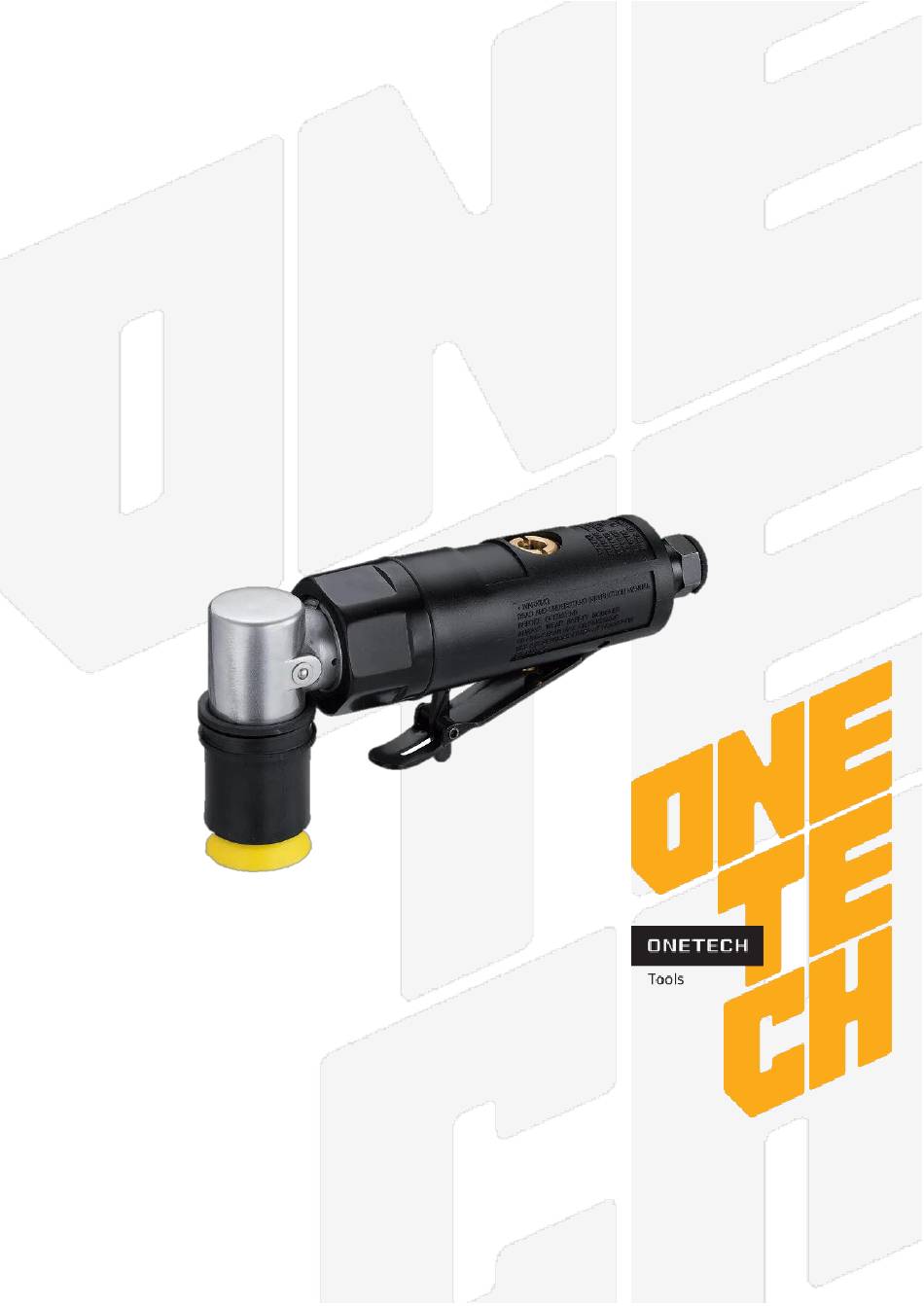

- Page 1 NT09-401 / NT09-401-15 v.2.1 DISC SANDER NT09-401 / NT09-401-15 OPERATION MANUAL...
- Page 2 NT09-401 / NT09-401-15 v.2.1 EN ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE TOOL. IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL.
-
Page 3: Maintenance
NT09-401 / NT09-401-15 v.2.1 EN MAINTENANCE Before and after operating, place a few drops of SAE #10 into inlet bushing with throttle lever pressed down to allow lubricating oils to properly dispense through machine. Connect the compressed air pipe and run for a few seconds, the tool for oil distribution on the tool. -
Page 4: Technical Specification
NT09-401 / NT09-401-15 v.2.1 EN EXAMPLE OF AIR SUPPLY SYSTEM TECHNICAL SPECIFICATION Pad size, Orbit, Speed, Length, Height, Weight, Model consumption, Spindle NT09-401 7 500 0.62 М10 NT09-401-15 15 000 Working pressure, Noise, Air inlet thread dB (A) 1/4" ≤ 75... -
Page 5: Troubleshooting Guide
NT09-401 / NT09-401-15 v.2.1 EN TROUBLESHOOTING GUIDE Not operating Possible Cause Solution Blades broken or worn out Replace blades Ball bearing damaged Replace ball bearing Rusty Motor or clogged with objects Disassemble and repair Motor blades stuck Disassemble and repair Regulator is set at «OFF»... - Page 6 NT09-401 / NT09-401-15 v.2.1...
- Page 7 NT09-401 / NT09-401-15 v.2.1 EN Parts Description Part No. Q'ty Description Part No. Q'ty NT09S-0211 O-Ring NT09S-0238 Spindle NT09S-0212 O-Ring NT09S-0239 Balance Weight NT09S-0213 Spring NT09S-0240 Bearing NT09S-0214 Regulator NT09S-0241 Pad Seat NT09S-0215 O-Ring NT09S-0242 Hook Sanding Pad 30 mm...
- Page 8 NT09-401 / NT09-401-15 v.2.1 Other languages: info@onetech-tools.com www.onetech-auto.de...
