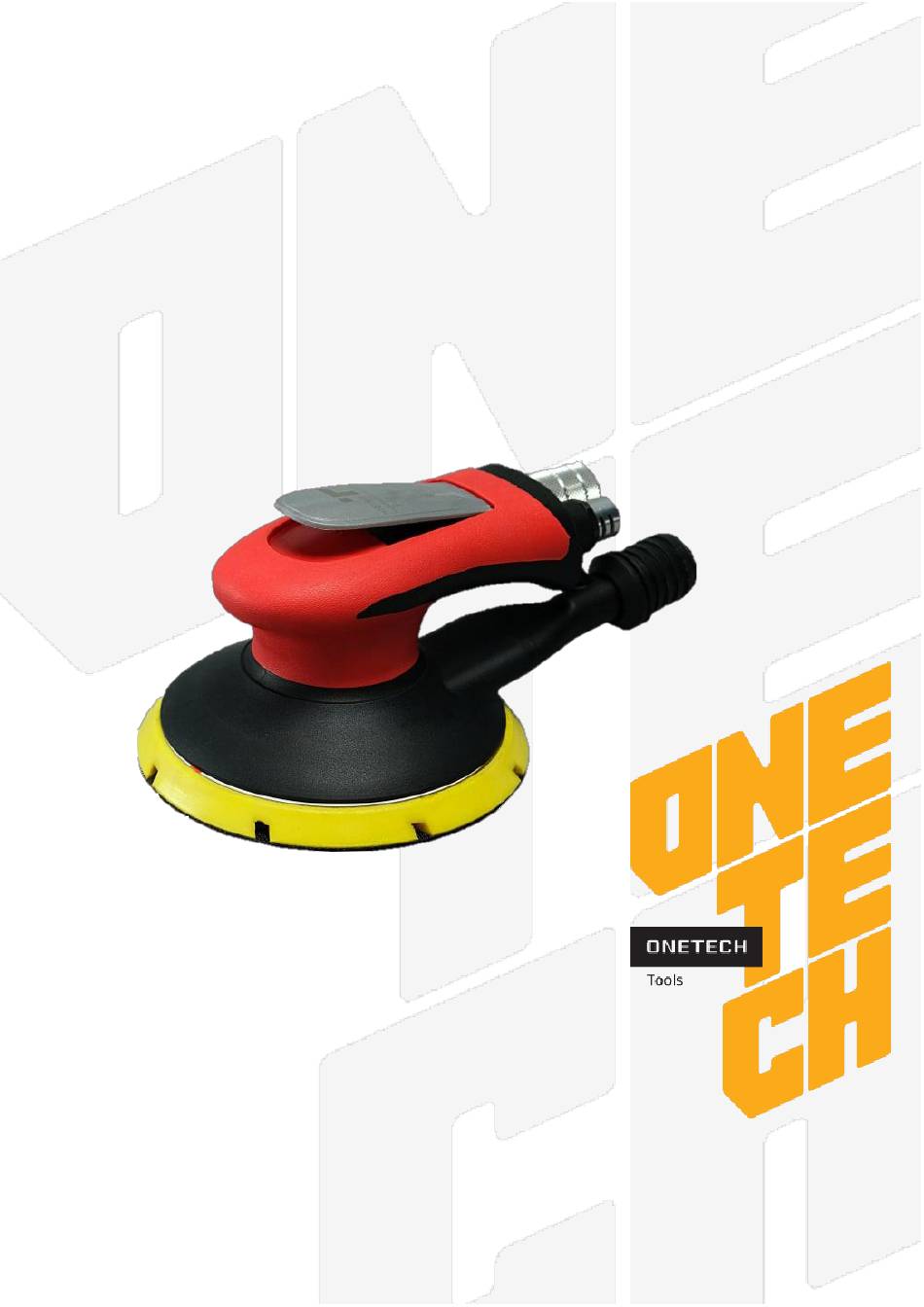

- Page 1 NT09-525C-HD, NT09-550C-HD РУССКИЙ v.2.0 PNEUMATIC RANDOM ORBITAL SANDER MANUAL INSTRUCTION NT09-525C-HD NT09-550C-HD...
- Page 2 NT09-525C-HD, NT09-550C-HD ENGLISH v.2.0 ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE TOOL. IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL.
-
Page 3: Maintenance
NT09-525C-HD, NT09-550C-HD ENGLISH v.2.0 MAINTENANCE ➢ This type of tool does not require daily maintenance. ➢ Before and after operating, place a few drops of SAE #10 into inlet bushing with throttle lever pressed down to allow lubricating oils to properly dispense through machine. -
Page 4: Technical Specification
NT09-525C-HD, NT09-550C-HD ENGLISH v.2.0 TYPES OF DUST EXTRACTION TECHNICAL SPECIFICATION Pad size, Orbit, Speed, Air consumption, Model Vacuum mode Pad Face NT09-525C-HD 12 500 Central Vacuum Hook NT09-550C-HD 12 500 Central Vacuum Hook Working pressure, Noise, Air inlet thread dB (A) 1/4"... -
Page 5: Troubleshooting Guide
NT09-525C-HD, NT09-550C-HD ENGLISH v.2.0 TROUBLESHOOTING GUIDE Not operating Possible Cause Solution Blades broken or worn out Replace blades Ball bearing damaged Replace ball bearing Rusty Motor or clogged with objects Disassemble and repair Motor blades stuck Disassemble and repair Regulator is set at «OFF»... - Page 6 NT09-525C-HD, NT09-550C-HD v.2.0...
- Page 7 NT09-525C-HD, NT09-550C-HD v.2.0 Description Part No. Q'ty Description Part No. Q'ty Motor Housing Pad Retainer NT09S-0399 NT09S-0042 Retaining Ring NT09S-0400 NT09S-0041 Valve Lever 152 mm Vac. Hook Face Pad (6 hole) NT09S-0401 NT09S-0050 152 mm Vac. Shroud 152 mm Vac. Hook Face Pad (15 hole)
- Page 8 NT09-525C-HD, NT09-550C-HD v.2.0...
