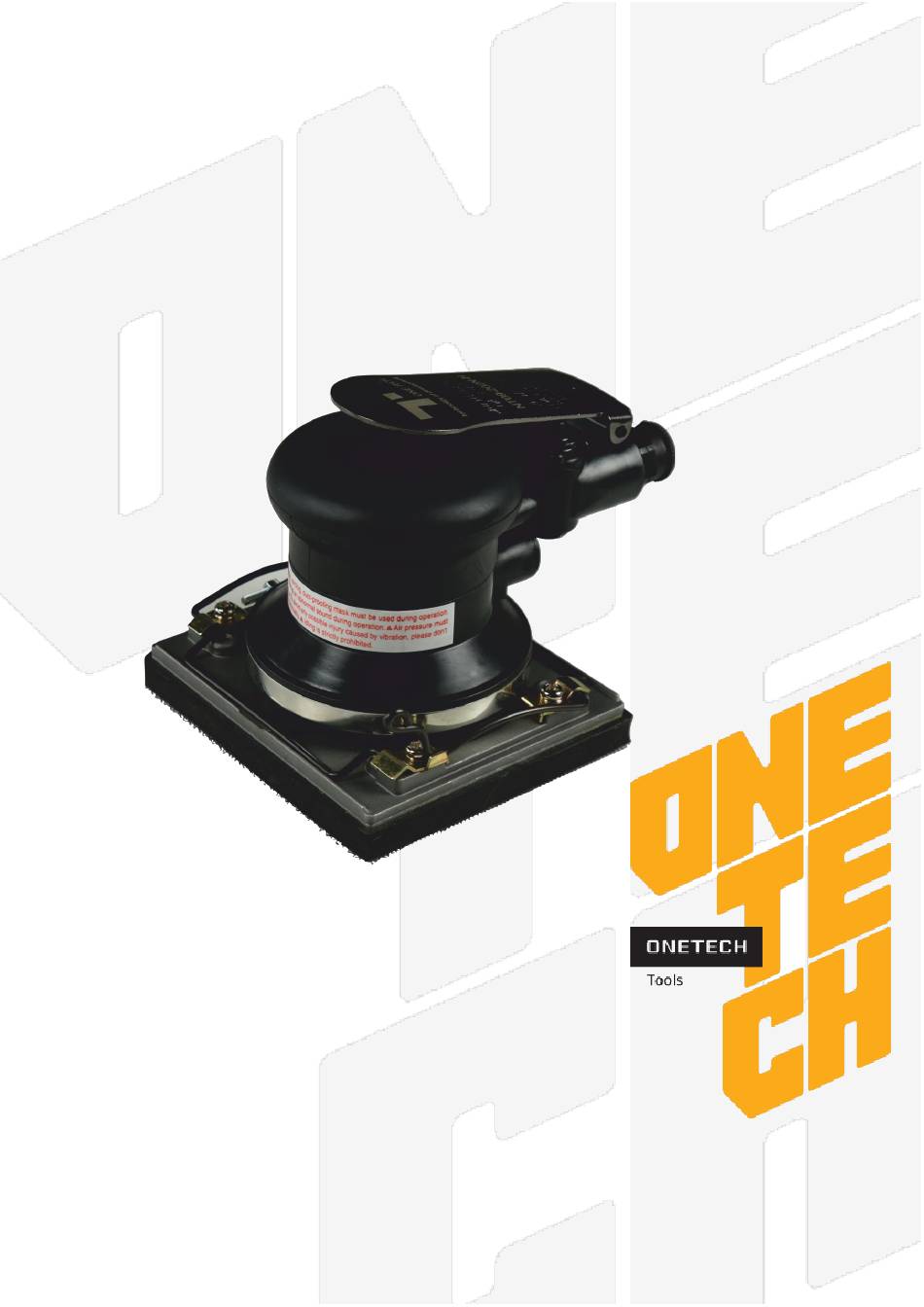

- Page 1 NT09-201N-V, NT09-202N-H РУССКИЙ v.2.0 JITTERBUG SANDER MANUAL INSTRUCTION NT09-201N-V NT09-202N-H...
- Page 2 NT09-201N-V, NT09-202N-H ENGLISH v.2.0 ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE TOOL. IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL.
-
Page 3: Maintenance
NT09-201N-V, NT09-202N-H ENGLISH v.2.0 MAINTENANCE ➢ Before and after operating, place a few drops of SAE #10 into inlet bushing with throttle lever pressed down to allow lubricating oils to properly dispense through machine. ➢ Connect the compressed air pipe and run for a few seconds, the tool for oil distribution on the tool. -
Page 4: Technical Specification
NT09-201N-V, NT09-202N-H ENGLISH v.2.0 TYPES OF DUST EXTRACTION TECHNICAL SPECIFICATION Pad size, Orbit, Speed, Air consumption, Weight, Model Vacuum mode Pad Face Vinyl + NT09-201N-V 100 х 110 11 000 0,91 Non-Vacuum Spring Clip Hook + NT09-202N-H 100 х 110... -
Page 5: Troubleshooting Guide
NT09-201N-V, NT09-202N-H ENGLISH v.2.0 TROUBLESHOOTING GUIDE Not operating Possible Cause Solution Blades broken or worn out Replace blades Ball bearing damaged Replace ball bearing Rusty Motor or clogged with objects Disassemble and repair Motor blades stuck Disassemble and repair Regulator is set at «OFF»... - Page 6 NT09-201N-V, NT09-202N-H v.2.0...
- Page 7 NT09-201N-V, NT09-202N-H v.2.0 Description Part No. Q'ty Description Part No. Q'ty Valve Lever Spring Pin NT09S-0001 NT09S-0121 O-Ring Cylinder NT09S-0012 NT09S-0122 Valve Tappet O-Ring NT09S-0103 NT09S-0024 Regulator Lower End Plate NT09S-0104 NT09S-0123 O-Ring O-Ring NT09S-0014 NT09S-0027 Screw Retainer Nut NT09S-0105 NT09S-0028 Valve (Eng.
- Page 8 NT09-201N-V, NT09-202N-H v.2.0...
