Exploded View/Parts List - Infinity Beta SW Series Service Manual

SW-12
Technical Manual
SW-12

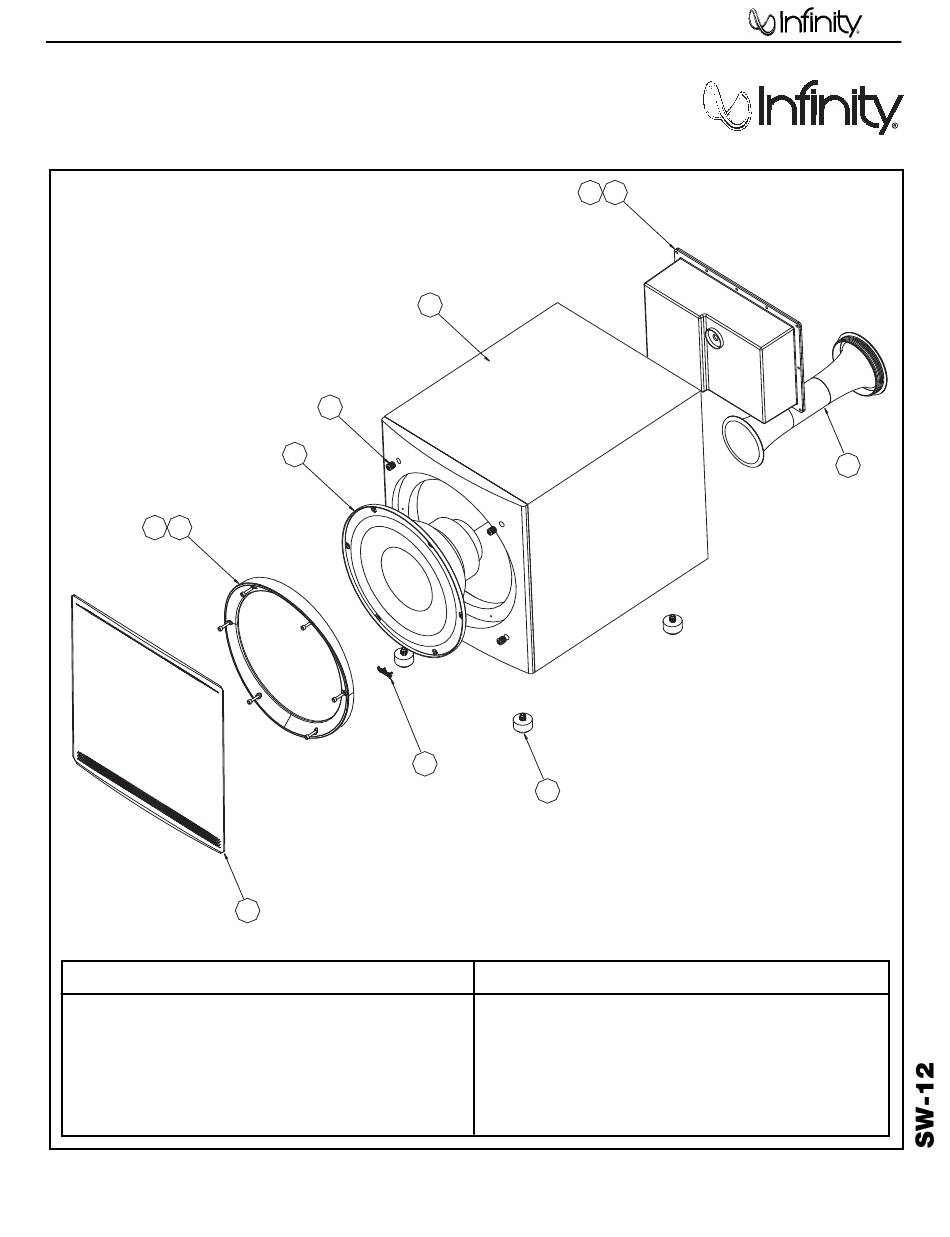

EXPLODED VIEW
3 7
ITEM
NO. DESCRIPTION
1. SW-12 Amplifier
2. SW-12 Cabinet
3. Trim Ring, 12" SW-12 (Black)
Trim Ring, 12" SW-12 (Beech/Cherry)
4. Cup, Grille (Black)
Cup, Grille (Beech/Cherry)
5. Logo SW-12
6. Foot Assembly, Rubber,
Blk w/Threaded Insert
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
Exploded View
4
9
10
QTY. PART NO.
1 Not for Sale
1 Not for Sale
1 351942-001
1 351942-002
4 333249-001
4 333249-003
1 351617-001
4 338037-002
SW-12
1
2
5
6
ITEM
NO. DESCRIPTION
7. Screw (woofer) (Black)
8 x 3/4, PAN, PH, PB, BLK ZINC, LCS
(Beech/Cherry)
8. Screw (amplifier)
#6 x 3/4, PAN, PH, PB, BLK ZINC, LCS
9. Woofer, 12" Sub DCR=3.4 ohms ±10% 1
10. Grille Assembly, Frnt CSW-12 (Black)
(Beech/Cherry)
11. Port Tube SW-12
8
8
QTY.
6
6
10 882-41110-12
1
1
1
11
PART NO.
72216
903802-016
351511-001
352050-003
352050-004
352179-001
6/04
