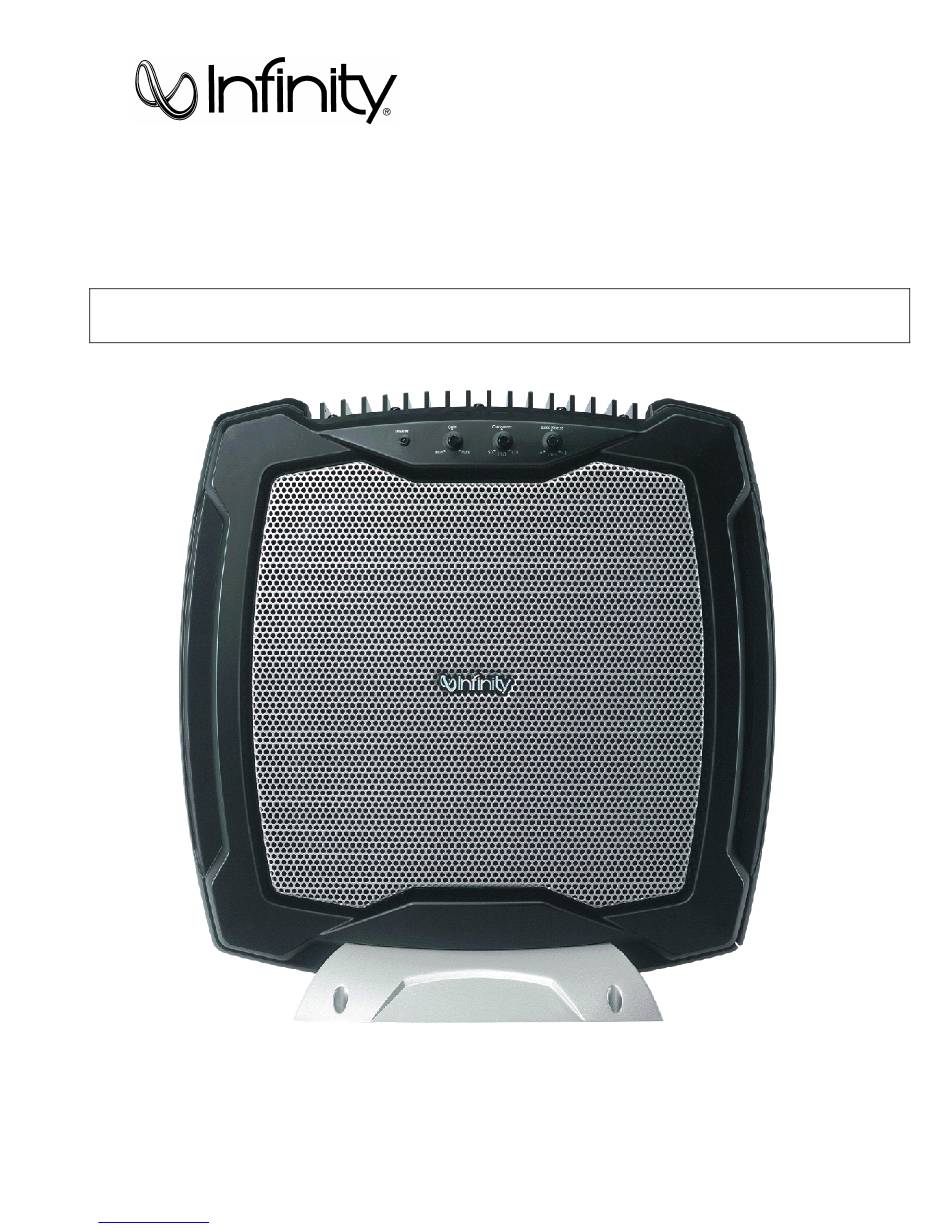

BassLink II Powered Automotive Subwoofer SERVICE MANUAL Infinity Systems, Inc. 250 Crossways Park Dr. Woodbury, New York 11797 Rev0 8/2005 Get user manuals: See SafeManuals.com...
(56mm x 34mm x 20mm) Fuse: Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and details in this and related JBL publications are therefore subject to change without notice. Get user manuals:...
Turn On feature, set AUTO TURN ON to the grommet to protect the wires. AUTO position (see Figure 15 on page 6). • Connect a short GND wire from BassLink II to the nearest bare metal surface. For a good connection, sand away paint from the metal surface and use a screw with a (star) lock washer.
Page 5
Basslink II Powered Subwoofer PPLICATIONS CONTINUED Figure 7. BassLink II audio connections for a head Figure 8. BassLink II audio connections for a head unit equipped with four line-level (RCA) outputs. unit equipped with four speaker-level outputs. BassLink II (right side)
Page 6
PHANTOM CENTER 6. Install 40A fuse at the battery. controls. Note: All four inputs on BassLink II must be used For proper setup, please refer to the full in order for the BassLink 4sc amplifier to function BassLink 4sc owner’s manual.
BassLink II when seated in the normal listen- ing position. Figure 14. BassLink II controls on the front panel. 3. On BassLink II’s front panel, initially set PHASE Control: Use this switch to reverse the all controls to their midpoint positions, as 9.
Page 8
Connect the RJ11 cable allows you to reduce the subwoofer output for between the RJ11 receptacle on the BassLink II music with heavy bass content and increase the UNDER-DASH MOUNTING and the receptacle on the REMOTE LEVEL control level for music with less bass content.
Tuning BassLink II on page 6). operation when AUTO TURN ON is set to ON. + Speaker wire 2. Bass is set too high. Readjust BASS BOOST BassLink II will remain on another 5 to 10 min- To + speaker lead from head unit Capacitor control (see Tuning BassLink II on page 6).
Basslink II Powered Subwoofer BASSLINK II DISASSEMBLY 1) Remove “Amplifier Dock” cover; (8) Phillips screws. 2) Remove (10) Phillips screws holding main heatsink/amplifier to enclosure, tapping the heatsink with a rubber mallet may be necessary to loosen it. Pull amplifier from enclosure 3) Remove single 12 pin Molex connector M300 and both pairs of FASTON terminals from the amplifier PCB;...
Basslink II Powered Subwoofer Ref # Description Part Number EXPLODED VIEW Infinity Logo 316-000-00130-1BA Grille 329-100-05125-0VA Screw M6*25 Black 351-AM06025A946 Screw T4*25 Black 352-AM04025D964 Front baffle 372-000-05027 Woofer F25X12PR-03DW-P Gasket 333-EVA-05142-0BA PVC label 315-PC-05035-0TAE Side Cover 305-PC-05007-0BA Plastic Control Cover...
