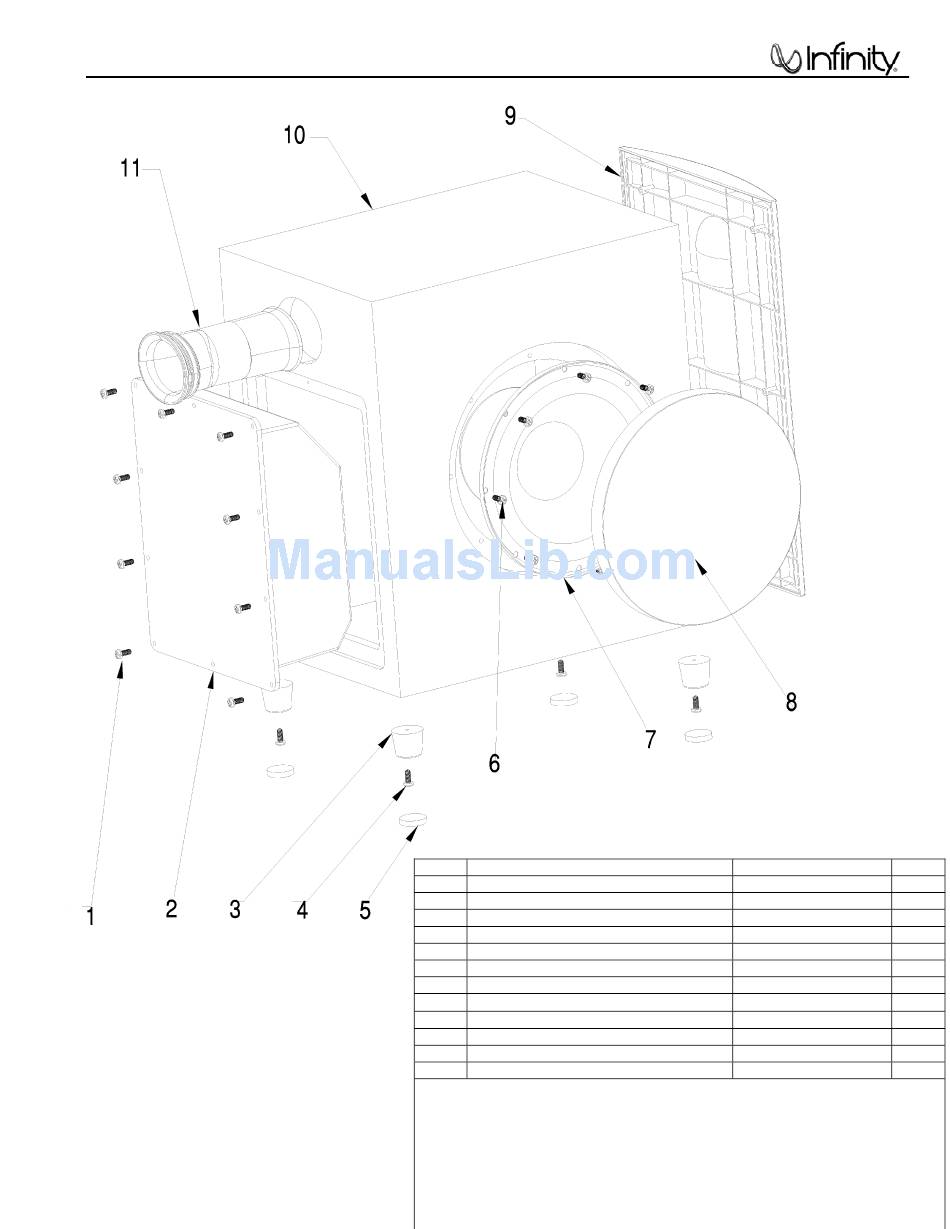

Exploded View-Mechanical Parts List - Infinity SUB450 Service Manual

SUB450
Ref#
1 Screw, Amplifier
2 SUB450 Amplifier Ass'y
3 Feet
4 Screw, Foot
5 Foot Pad
6 Screw, Woofer
7
8" (203mm) Woofer DCR = 3.3Ω ±10%
8 Grille
9 Front Faceplate
10 SUB450 cabinet
11 Port Tube
SERVICE NOTE
Access to woofer:
1) Carefully pry metal grille out of its recess with a sharp pointed instrument
such as an awl – USE CAUTION. Work evenly around the perimeter
until the grill can be removed.
2) Remove the (8) Phillips screws holding the woofer to the cabinet.
3) After service, replace the woofer and re-insert the grille back into its
7
recess until it's fully seated.
Description
352-AM04020D210
Not for Sale
320-RUB-00195
352-CM04025D604
320-RUB-00199
352-FM04020D605
20MF10DAG-DW01
329-080-00736B/S
Not for Sale
Not for Sale
249-HIPS-00172B/S
Part Number Qty
10
1
4
4
4
8
1
1
1
1
1
