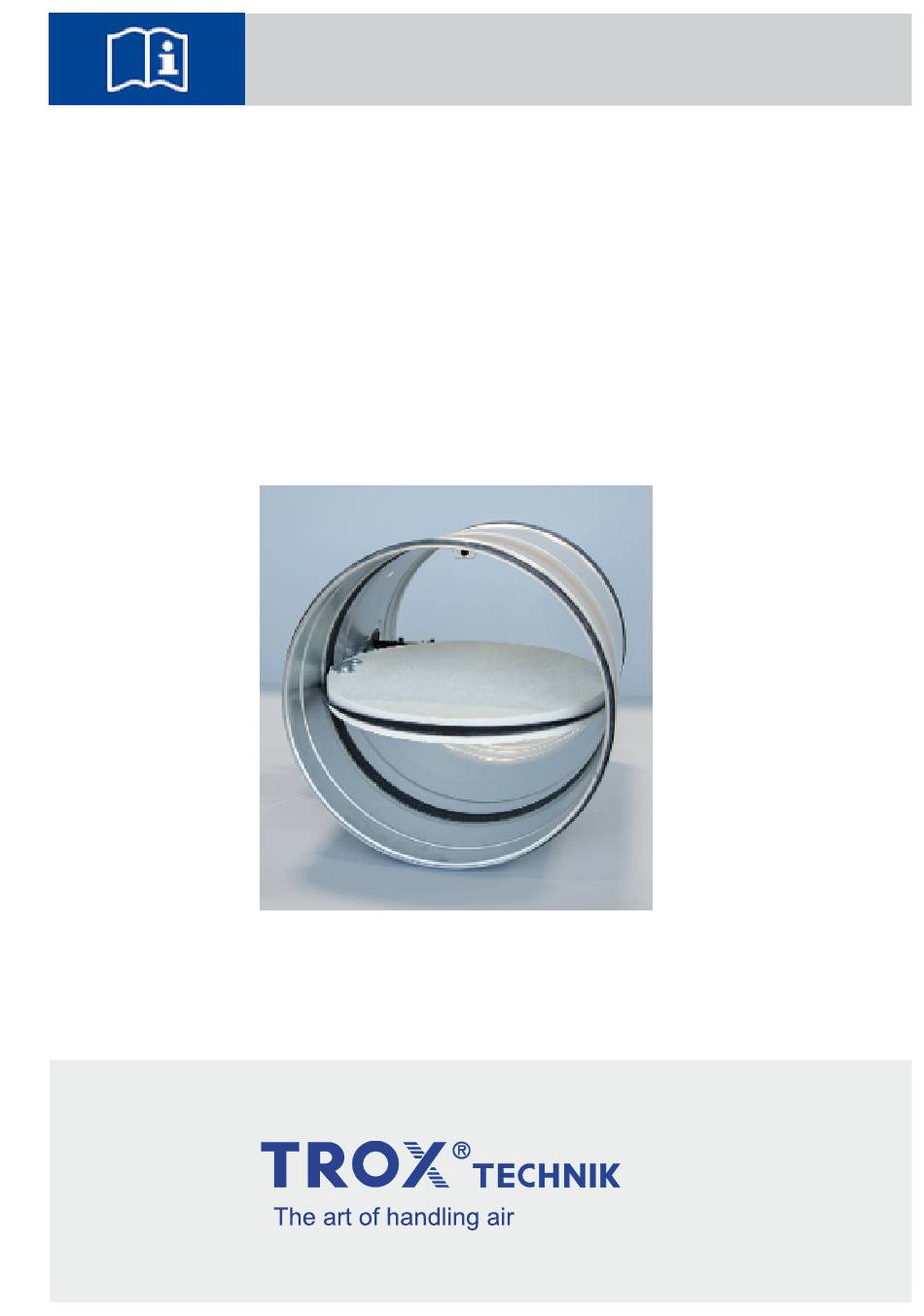

- Page 1 Repair instructions GB/en Fire damper Type FKRS-EU according to Declaration of Performance from DoP / FKRS-EU / DE / 004 Read the instructions prior to performing any task!
- Page 2 TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn Germany Phone: +49 (0) 2845 202-0 Fax: +49 (0) 2845 202-265 E-Mail: trox-de@troxgroup.de Internet: http://www.troxtechnik.com Translation of the original A00000082350, 4, GB/en 06/2024 © 2020 Fire damper Type FKRS-EU...
- Page 3 General information General information Limitation of liability The information in this manual has been compiled with Information on repair instructions reference to the applicable standards and guidelines, These repair instructions enable operating or service the state of the art, and our expertise and experience of personnel to safely use the TROX product described many years.
- Page 4 General information Usage instructions The repair damper blade described below is an original TROX component. The use of components that have not been approved by TROX is not permitted. Other applicable documentation Installation and use of the fire damper is to be carried out in accordance with the installation and operating manual for type FKRS-EU.
-
Page 5: Table Of Contents
Table of contents Supply package / tools ........6 Removal / assembly ........7 2.1 Removal of the old damper blade ..... 2.2 Installation of the new repair damper blade ............9 Functional test ..........13 Fire damper Type FKRS-EU... -
Page 6: Supply Package / Tools
Supply package / tools Supply package / tools Attention! Before installation – Check the repair damper blade for transport damage. – Observe the repair instructions. Installation work may only be performed by spe- cialist personnel. The general UV regulations must be complied with. ... -
Page 7: Removal / Assembly
Removal / assembly Removal of the old damper blade Removal / assembly Removing the first half of the damper blade 2.1 Removal of the old damper blade Opening the damper blade Fig. 5 Slowly close the blade, carefully separate the blade halves and remove the first half by pulling it in an inwards direction. - Page 8 Removal / assembly Removal of the old damper blade Removing the lock washer on the rod Removing the second half of the damper blade Fig. 7 Remove the lock washer on the damper blade rod and loosen the rod from the drive unit. Detaching the rod Fig.
-
Page 9: Installation Of The New Repair Damper Blade
Removal / assembly Installation of the new repair damper blade 2.2 Installation of the new repair Fixing the rear plates damper blade Positioning the screws Fig. 10 Push the screws from the front side through the drilled holes. Fig. 11 Screw in but do not tighten the rear plates with the screws! Fire damper Type FKRS-EU... - Page 10 Removal / assembly Installation of the new repair damper blade Inserting the repair damper blade Installing the front plate on the drive side Fig. 12 Fig. 13 Insert the repair damper blade into the damper housing so that the axles on both sides are positioned in the Position the repair damper blade so that it is slightly mill-cut slots.
- Page 11 Removal / assembly Installation of the new repair damper blade Positioning the front plates Attaching the damper rod Fig. 14 Slide the front plate on the drive side to the end of the slotted holes under the screws and tighten the screws by hand.
- Page 12 Removal / assembly Installation of the new repair damper blade Repairs completed Fig. 18 The repair damper blade has now been installed. Fire damper Type FKRS-EU...
-
Page 13: Functional Test
Functional test Functional test Fig. 19 Once the repair damper blade has been installed, a functional test must be carried out in accordance with the applicable operating and installation manual for type FKRS-EU! Fire damper Type FKRS-EU... - Page 14 TROX GmbH Phone: +49 (0) 2845 202-0 Heinrich-Trox-Platz +49 (0) 2845 202-265 47504 Neukirchen-Vluyn E-Mail: trox-de@troxgroup.de Germany http://www.troxtechnik.com © 2020...
