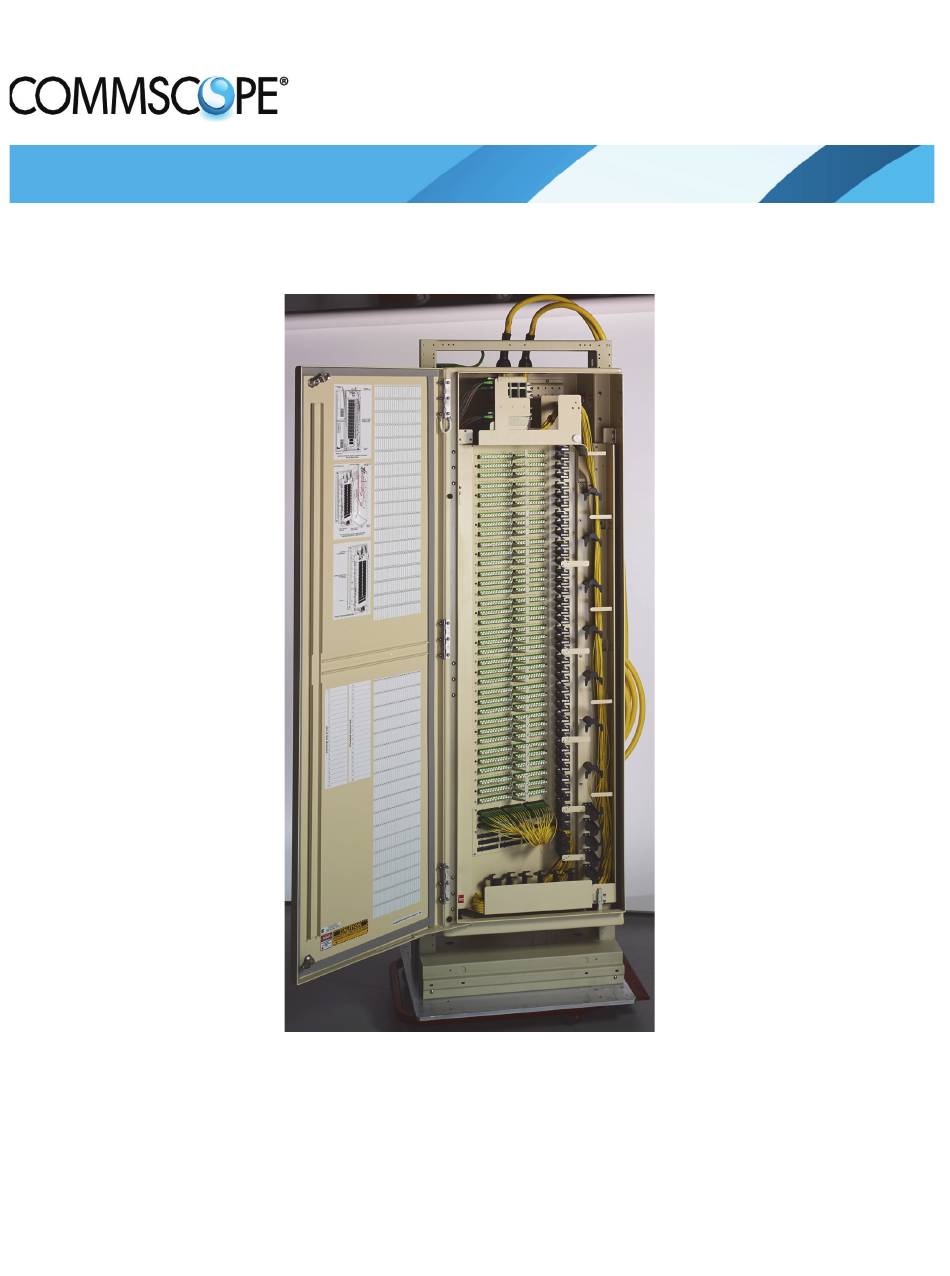

Indoor FDH 3000
Rack Mount Cabinet
User Manual
TECP-96-189  Issue 1  10/2015
Indoor FDH 3000 (864 Port Model)
300900111209 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDH 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CommScope FDH 3000

Summary of Contents for CommScope FDH 3000

  • Page 1 Indoor FDH 3000 Rack Mount Cabinet User Manual TECP-96-189  Issue 1  10/2015 Indoor FDH 3000 (864 Port Model) 300900111209 Rev A...
  • Page 2 Contents herein are current as of the date of publication. CommScope reserves the right to change the contents without prior notice. In no event shall CommScope be liable for any damages resulting from loss of data, loss of use, or loss of profits and CommScope further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.

  • Page 3: Table Of Contents

    CUSTOMER INFORMATION AND ASSISTANCE ........... 52 Page iii © 2015 CommScope. All Rights Reserved.
  • Page 4 TECP-96-189 • Issue 1 • 10/2015 • Preface TABLE OF CONTENTS Content Page Page iv © 2015 CommScope. All Rights Reserved.

  • Page 5: About This Manual

    TECP-96-189 • Issue 1 • 10/2015 • Preface ABOUT THIS MANUAL This publication describes the Indoor FDH 3000 Rack-Mount Cabinet, which is available in four models (providing 288, 432, 576, or 864 terminations). Also included are procedures for mounting the cabinet, installing additional splitter modules, installing additional connector panels, storing the splitter output fibers, connecting the splitter output fibers to the distribution fibers, and replacing damaged components.

  • Page 6: Standards Certification

    Centigrade Fahrenheit Fiber Distribution Hub Fiberglass Mounting Sleeve FTTP Fiber To The Premises IFDH Indoor Fiber Distribution Hub Outside Plant Pad Mount Frame Plug and Play Reduced Bend Radius Return Material Authorization Page vi © 2015 CommScope. All Rights Reserved.

  • Page 7: Product Description

    A clamping kit is provided for securing the feeder cable to the rear side of the cabinet. 26008-A 288 TERMINATIONS 432 TERMINATIONS 576/864 TERMINATIONS Figure 1. IFDH 3000 Models (288, 432, 576, and 864 Terminations) Page 1 © 2015 CommScope. All Rights Reserved.

  • Page 8: Main Components

    • Swing Frame—is the front (distribution) section of the cabinet, which swings outward to provide access to the inner (feeder) section of the cabinet. Page 2 © 2015 CommScope. All Rights Reserved.
  • Page 9 FEEDER CABLE ENTRY SPLITTER MODULES DESIGNATION LABELS SPLITTER OUTPUT FIBERS DISTRIBUTION PANELS RADIUS LIMITERS STORAGE PANELS CABINET EQUIPMENT DOOR RACK SWING 26005-A FRAME Figure 2. Main Components (Front of Inner 432 Cabinet) Page 3 © 2015 CommScope. All Rights Reserved.
  • Page 10 SPLITTER OUTPUT FIBERS DOOR DISTRIBUTION CABLE SWING SUBUNITS FRAME DISTRIBUTION PANELS FEEDER CABLE SPLICE TRAY COMPARTMENT SPLITTER PASS-THROUGH 26006-A INPUT PATCH PANEL PGTAILS Figure 3. Main Components (With Swing Frame Swung Out) Page 4 © 2015 CommScope. All Rights Reserved.
  • Page 11 TECP-96-189 • Issue 1 • 10/2015 Table 1. Indoor FDH 3000 Cabinet Specifications PARAMETER SPECIFICATION Equipment Rack Dimensions (H x W x D) 84 x 25.88 x 14.89 inches (213.36 x 59.58 x 37.82 cm) 288 Cabinet Dimensions (H x W x D) 33 x 23.46 x 16.78 x inches (84 x 630 x 43 cm)
  • Page 12 TECP-96-189 • Issue 1 • 10/2015 Table 1. Indoor FDH 3000 Cabinet Specifications, continued PARAMETER SPECIFICATION Distribution panels (maximum) 8 for 576; 12 for 864 Distribution ports Up to 576 with eight 72-port distribution panels and up to 864 with twelve 72-port distribution panels...

  • Page 13: Before Installation

    (see installation drawing provided with cabinet) or broken parts. If there are damages, contact ADC (see Section 10) for an RMA (Return Material Authorization) and to reorder if replacement is required. Page 7 © 2015 CommScope. All Rights Reserved.

  • Page 14: Feeder Cable Installation Hardware

    • Hardware to top-anchor the rack (if required) • Frame grounding system (per local requirements) – Grounding Kit: Catalog# E-501-L37 – H-Tap Kit: Catalog# E-501-L166 • Tools to install the rack anchoring system and grounding system Page 8 © 2015 CommScope. All Rights Reserved.

  • Page 15: Installing The Equipment Rack

    Various combinations of top support hardware are available to accommodate any existing support structure. Additional instructions for installing ADC equipment racks and rack accessories are provided in the CommScope publication, Unequal Flange Rack Installation Instructions (ADCP-80-345). The sections that follow provide instructions for mounting the IFDH 3000 on either a concrete floor or a raised floor.
  • Page 16 61.44 CM) IS REQUIRED 25.88 IN. 65.73 CM) 84 IN. (213.36 CM) 33 IN. 41.88 IN. REF (83.82 CM) (106.38 CM) 23.46 IN. (56.59 CM) FRONT VIEW 26052-A Figure 4. IFDH 3000-288 Dimensions Page 10 © 2015 CommScope. All Rights Reserved.
  • Page 17 61.44 CM) IS REQUIRED 25.88 IN. 65.73 CM) 84 IN. (213.36 CM) 39.00 IN. (99.06 CM) 47.88 IN. REF (121.61 CM) 23.46 IN. 26004-A (56.59 CM) FRONT VIEW Figure 5. IFDH 3000-432 Dimensions Page 11 © 2015 CommScope. All Rights Reserved.
  • Page 18 (25.20 CM) REQUIRED 25.88 IN. 65.73 CM) 16.79 IN. (42.65 CM) 84 IN. (213.36 CM) 76.83 IN. (195.15 CM) 26053-A 14.89 IN. REF FRONT VIEW (37.82 CM) Figure 6. IFDH 3000-576/864 Dimensions Page 12 © 2015 CommScope. All Rights Reserved.

  • Page 19: Concrete Floor Mounting

    Two anchors may be used when the rack is supported from overhead. In earthquake zones, always use four floor anchors. CommScope anchors include a breakaway cap that separates when the proper torque is reached. When mounted according to these instructions using the specified mounting hardware, the IFDH 3000 meets the requirements for earthquake zone 4.
  • Page 20 5. Insert an anchor into each one of the mounting holes as shown in Figure 10. Using a hammer, tap each anchor into the hole until the top of the anchor is even with the floor. Page 14 © 2015 CommScope. All Rights Reserved.
  • Page 21 SCREWDRIVER IF SETTING TOOL IS NOT AVAILABLE SETTING TOOL 0.7 IN. (18 mm) HOLE DIAMETER 0.25 IN. CONCRETE (6 mm) 3.5 IN. (90 mm) ANCHOR 23455-B Figure 10. Set Anchor into Floor Page 15 © 2015 CommScope. All Rights Reserved.
  • Page 22 15. To allow removal of the torque nut at some future time, snap off the plastic cover that protects the torque nut as shown in Figure 16. Reinstall the front guard box cover on the base of the rack (see Figure Page 16 © 2015 CommScope. All Rights Reserved.

  • Page 23: Raised Floor Mounting

    The threaded rods provided with the CommScope kit are 30 inches long. Because of the complexity of mounting the IFDH 3000 frame on a raised floor, there are two sections that cover the mounting procedure.

  • Page 24: Securing Unistrut Framing Sections To The Floor Below The Raised Floor

    File off any rough edges that may be left at the cut-off point. 11. Place a section of Unistrut framing over each line drawn in step 10 and then center each section (in both directions) over the line. Page 18 © 2015 CommScope. All Rights Reserved.
  • Page 25 17. Using a hammer, tap the anchor into the hole until the setting tool is flush with the surface of the concrete. If using a screwdriver, tap the screwdriver until the top of the anchor is 6 mm (0.25 inches) below the surface of the concrete. Page 19 © 2015 CommScope. All Rights Reserved.
  • Page 26 25. Remove the breakaway cap from the stud and discard. 26. To allow removal of the torque nut at some future time, snap off the plastic cover (see Figure 12) that protects the torque nut. Page 20 © 2015 CommScope. All Rights Reserved.

  • Page 27: Securing Rack Base To Raised Floor

    7. Place the rack over the clearance holes in the raised floor and position for mounting. Temporarily secure the top of the rack to any available supporting structure to prevent the rack from falling over when the IFDH 3000 swing frame is opened. Page 21 © 2015 CommScope. All Rights Reserved.
  • Page 28 12. Insert the top ends of the two threaded rods through the clearance holes in the bottom side of the raised floor. Provide sufficient space between the Unistrut framing sections and the bottom side of the floor panel to allow completion of steps 13 and 14. Page 22 © 2015 CommScope. All Rights Reserved.
  • Page 29 Unistrut framing. 16. Use an open-ended wrench to tighten nuts at bottom of each threaded rod (Figure TIGHTEN HEX NUTS 23471-A Figure 19. Tighten Nuts At The Bottom Of Each Threaded Rod Page 23 © 2015 CommScope. All Rights Reserved.
  • Page 30 FLAT WASHER NYLON SHOULDER WASHER (OPTIONAL) SQUARE WASHER HOLD DOWN BAR THREADED ROD SHIMS (PLACE UNDER BASE AS NEEDED TO LEVEL RACK) 23473-A Figure 21. Level Rack and Secure To Floor Panel Page 24 © 2015 CommScope. All Rights Reserved.

  • Page 31: Rack Top Support Systems

    If possible, the overhead support and lineup should be perpendicular to one another since this arrangement provides the most room for cabling. Refer to the Unequal Flange Rack Installation Instructions (ADCP-80-345) for complete information on installing rack top support systems. Page 25 © 2015 CommScope. All Rights Reserved.

  • Page 32: Grounding Wire Connection To Equipment Rack

    5. Route the free end of the grounding wire to an approved earth ground source. 6. Cut the grounding wire to length and connect it to the earth ground source as specified by local code or practice. Page 26 © 2015 CommScope. All Rights Reserved.

  • Page 33: Feeder Cable Installation And Splicing

    6. Insert the end of the feeder cable into the cable entry/exit hole and pull through about 14 feet (4.3 meters) of cable slack. Page 27 © 2015 CommScope. All Rights Reserved.
  • Page 34 12. Depending on the cabinet option, either a plastic or brass clamp will be provided with the cabinet. Assemble the cable clamp on the feeder cable as shown in Figure Page 28 © 2015 CommScope. All Rights Reserved.

  • Page 35: Grounding Cables With Metallic Members

    2. Route the cable grounding wire to the grounding block. The grounding block provides eight 10-32 grounding studs for the attachment of grounding wires. 3. Crimp a ring terminal (not provided) onto the end of the cable grounding wire. Page 29 © 2015 CommScope. All Rights Reserved.
  • Page 36 5. Use the nut and flat washer removed in step 3 to secure the grounding wire ring terminal to the grounding block. 6. Tighten the grounding stud nut to 40 lbs-force inches (4.52 N m) of torque. Page 30 © 2015 CommScope. All Rights Reserved.

  • Page 37: Splicing The Feeder Cable Fibers To The Splitter Fibers - Ribbon Fiber

    NOTE: SHOWN WITH CABINET REMOVED TO ALLOW VIEWING OF FIBER ROUTING. FEEDER CABLE SPLITTER FIBERS COMMON TIE POINT FEEDER CABLE FIBERS FEEDER SPLICE 23650-B TRAY ASSEMBLY Figure 29. Feeder Splice Tray and Feeder/Splitter Fiber Routing Page 31 © 2015 CommScope. All Rights Reserved.
  • Page 38 9. From the tie point on the splice tray, trim the feeder fibers to a cut length of 28 inches (71 cm) and the splitter fibers to a cut length of 36 inches (92 cm). Page 32 © 2015 CommScope. All Rights Reserved.
  • Page 39 FEEDER CABLE FIBERS FIBERS BREAKOUT TO SECURE FIBER (36 INCHES / 92CM) (28 INCHES / 71 CM) TIE POINT POINT SUBUNITS TO TRAY Figure 32. Ribbon Fiber Splice Tray - Feeder Cable Splicing Page 33 © 2015 CommScope. All Rights Reserved.
  • Page 40 7 (Red) – 8 (Black) – 8 (Black) – 9 (Yellow) – 9 (Yellow) – 10 (Violet) – 10 (Violet) – 11 (Rose) – 11 (Rose) – 12 (Aqua) – 12 (Aqua) – Page 34 © 2015 CommScope. All Rights Reserved.
  • Page 41 9 (Yellow) – 9 (Yellow) 10 (Violet) – 10 (Violet) 11 (Rose) 11 (Rose) 12 (Aqua) 12 (Aqua) Note: *Splitter port numbers marked with asterisk are in bottom row of splitter cage. Page 35 © 2015 CommScope. All Rights Reserved.
  • Page 42 6 (White) 7 (Red) – 7 (Red) 8 (Black) – 8 (Black) 9 (Yellow) – 9 (Yellow) 10 (Violet) – 10 (Violet) 11 (Rose) – 11 (Rose) 12 (Aqua) – 12 (Aqua) Page 36 © 2015 CommScope. All Rights Reserved.
  • Page 43 Note: * Splitter port numbers marked with asterisk are in bottom row of splitter cage. INDIVIDUAL SPLITTER MODULE SPLITTER CHASSIS 2 (POSITIONS 23-44) SPLITTER CHASSIS 1 (POSITIONS 1-22) 26005-A Figure 33. Splitter Cage Location and Numbers in IFDH 576/864 Page 37 © 2015 CommScope. All Rights Reserved.

  • Page 44: Distribution Cabling

    The fiber ribbons are routed to the distribution panel. Each ribbon is fanned out into 12 individual fibers, each of which is terminated with an SC/APC connector. Page 38 © 2015 CommScope. All Rights Reserved.

  • Page 45: Routing And Connecting The Splitter Output Fibers

    Use the following procedure to store the splitter output fibers (refer to Figure 36). 1. Following installation of a splitter module, locate an open connector pack slot in the storage panel at the bottom of the cabinet. Page 39 © 2015 CommScope. All Rights Reserved.
  • Page 46 Figure 36. Routing Splitter Output Fibers (432 Cabinet Shown) 6. Use the radius limiters on the right side of the cabinet to store any excess fiber slack. Refer Figure 36 for the routing guidelines. Page 40 © 2015 CommScope. All Rights Reserved.

  • Page 47: Enabling Service To A Subscriber

    1. Locate the appropriate feeder cable connector in the pass-through patch panel. 2. Pull upward on the small tab on top of the adapter pack and lift the adapter pack to the position shown in Figure 37 Page 41 © 2015 CommScope. All Rights Reserved.
  • Page 48 8. Route the pass-through patch cord to the front side of the swing-out assembly as shown in Figure 9. Locate the distribution panel and the optical port to which the pass-through patch cord is to be routed. Page 42 © 2015 CommScope. All Rights Reserved.

  • Page 49: Splitter Compartment Pass-Through Routing Procedure

    1. Locate an open splitter mounting position. 2. Remove the dust cap assembly from the selected splitter slot. 3. Remove the feeder cable connector from the rear of the splitter compartment (see Figure 46 on Page 51). Page 43 © 2015 CommScope. All Rights Reserved.

  • Page 50: Feeder Cable Pigtail Re-Routing Procedure

    8 FEEDER CABLE PIGTAIL RE-ROUTING PROCEDURE The feeder cable pigtails may be terminated by the factory at either the sliding adapter pack or at the splitter compartment. Feeder cable pigtails that were terminated at the sliding adapter Page 44 © 2015 CommScope. All Rights Reserved.
  • Page 51 When necessary, backfeed the fiber to free the connector from the remaining fibers. 6. When the feeder cable connector and fiber are free, pass the connector through the opening located behind the splitter compartment as shown in Figure Page 45 © 2015 CommScope. All Rights Reserved.
  • Page 52 9. Route the feeder fiber over the three supports located at the top of the swing-out assembly. 10. Store excess slack on the radius limiters located on the left side of the swing-out assembly. Page 46 © 2015 CommScope. All Rights Reserved.
  • Page 53 PASS CONNECTOR THROUGH THIS OPENING TAKE UP SLACK ON RADIUS LIMITERS 21523-B Figure 42. Re-Routing the Feeder Cable Fiber CONNECTOR KEYWAY REAR VIEW OF 21358-D SPLITTER COMPARTMENT Figure 43. Feeder Cable Connector Page 47 © 2015 CommScope. All Rights Reserved.

  • Page 54: Operation Methods And Procedures

    2. Identify the optical port that corresponds to the subscriber requiring the service disconnection. Note: The distribution panel optical ports are numbered consecutively from top-to-bottom and from left-to-right in a manner similar to how fiber ports are numbered on central office fiber panels. Page 48 © 2015 CommScope. All Rights Reserved.
  • Page 55 12. Repeat steps 2 though 11 for all service disconnections 13. Close and secure the cabinet door when all service disconnections are completed. Page 49 © 2015 CommScope. All Rights Reserved.

  • Page 56: Adding A Splitter Module

    The 432 termination indoor FDH 3000 cabinet can accommodate up to 22 single-input mini splitter modules. The 288 termination indoor FDH 3000 cabinet has 18 splitter slots. The 576/ 864 termination indoor FDH 3000 cabinet has 44 splitter slots. Inserting the splitter into the splitter compartment connects the splitter input connector to the feeder cable connector.
  • Page 57 6. Insert the splitter into the mounting slot. 7. Route the splitter output fibers to the connector storage panel or to the designated subscriber port. CONNECTOR KEYWAY REAR VIEW OF 24573-A SPLITTER COMPARTMENT Figure 46. Feeder Cable Connector Page 51 © 2015 CommScope. All Rights Reserved.

  • Page 58: Customer Information And Assistance

    TECP-96-189 • Issue 1 • 10/2015 10 CUSTOMER INFORMATION AND ASSISTANCE For CommScope Customer Service, call 1.800.366.3891, extension 73475 (direct 1.952.917.3475). To email for technical service, use telnet.tac@te.com. CommScope website address is www.commscope.com. Page 52 © 2015 CommScope. All Rights Reserved.
