CommScope FDH 3000 User Manual

CommScope FDH 3000 User Manual

Fiber distribution hub; outdoor; 432 termination pole-mount cabinet
Hide thumbs Also See for FDH 3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

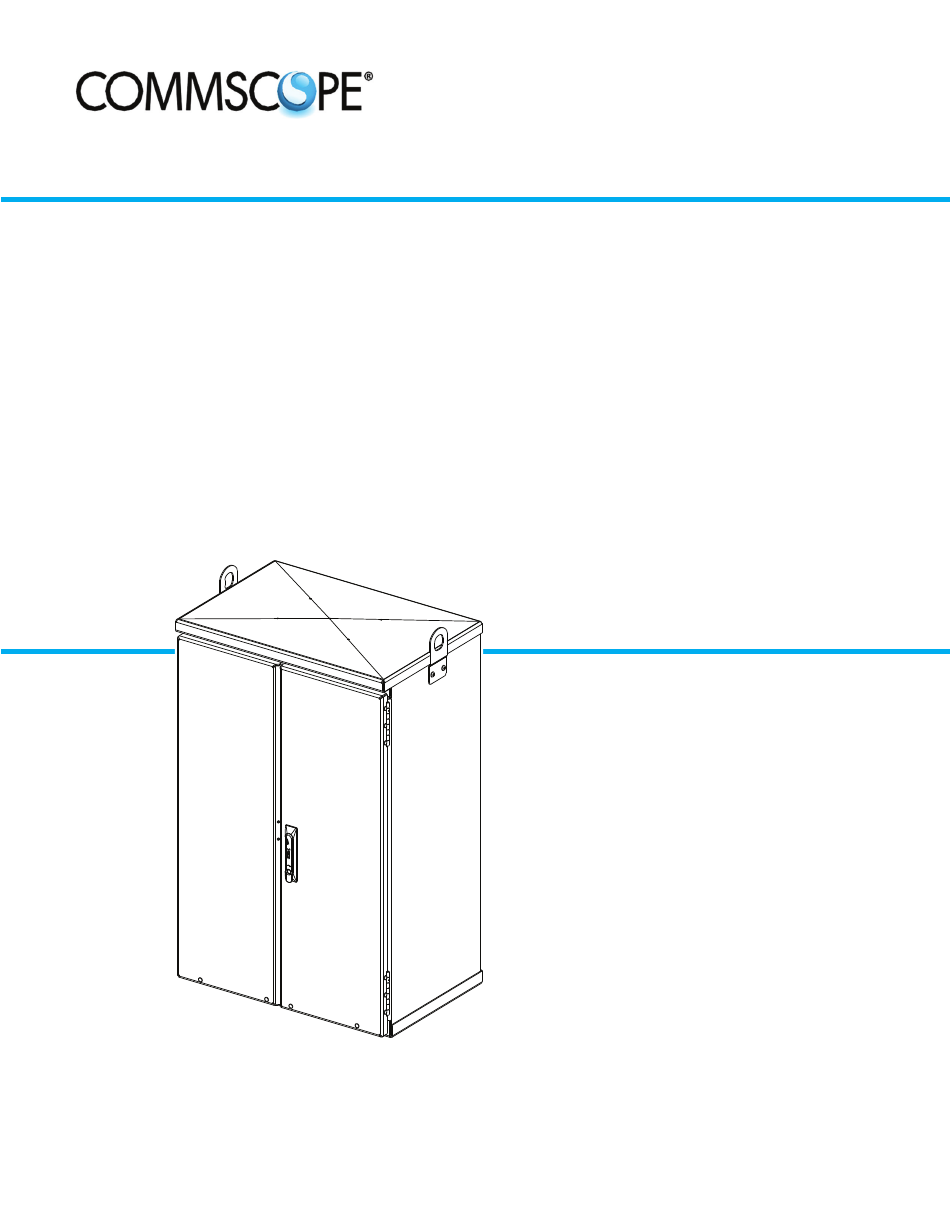

Fiber Distribution Hub
Outdoor FDH 3000
432 Termination Pole-Mount Cabinet
User Manual
www.commscope.com
ADCP-96-158 Rev B
23536-A
ADCP-96-158
Rev B, January 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDH 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for CommScope FDH 3000

Summary of Contents for CommScope FDH 3000

  • Page 1 Fiber Distribution Hub Outdoor FDH 3000 432 Termination Pole-Mount Cabinet User Manual ADCP-96-158 Rev B, January 2018 23536-A www.commscope.com ADCP-96-158 Rev B...
  • Page 2 Contents herein are current as of the date of publication. CommScope reserves the right to change the contents without prior notice. In no event shall CommScope Inc. be liable for any damages resulting from loss of data, loss of use, or loss of profits and CommScope Inc.

  • Page 3: Table Of Contents

    CUSTOMER INFORMATION AND ASSISTANCE ........... 30 Page iii © 2018, CommScope, Inc.
  • Page 4 ADCP-96-158 • Rev B • January 2018 • Preface TABLE OF CONTENTS Content Page Blank Page iv © 2018, CommScope, Inc.

  • Page 5: About This Manual

    ADCP-96-158 • Rev B • January 2018 • Preface ABOUT THIS MANUAL This publication describes the Outdoor FDH 3000 432 Pole-Mount Cabinet. Also included are procedures for mounting the cabinet, installing additional splitter modules, storing the splitter output fibers, connecting the splitter output fibers to the distribution fibers, and replacing damaged components.

  • Page 6: Standards Certification

    The acronyms and abbreviations used in this manual are detailed in the following list: American Wire Gauge Centigrade Fahrenheit Fiber Distribution Hub Fiberglass Mounting Sleeve FTTP Fiber To The Premises Outside Plant Pad Mount Frame Plug and Play Reduce Bend Radius Return Material Authorization Page vi © 2018, CommScope, Inc.

  • Page 7: Description

    ADCP-96-158 • Rev B • January 2018 1 DESCRIPTION This section provides a description of the OmniReach Outdoor FDH 3000 432 termination pole- mount cabinet plus the cabinet specifications. 432 Pole-Mount Cabinet The 432 pole-mount cabinet is a secure, above-ground, outdoor fiber optic distribution cabinet that is designed to hold the various optical components required for Fiber To The Premises (FTTP) distribution network applications.
  • Page 8 ADCP-96-158 • Rev B • January 2018 SPLITTER COMPARTMENT SLIDING ADAPTER PACK DISTRIBUTION PANELS RADIUS LIMIITERS STORAGE PANEL 23537-A Figure 1. Typical 432 Pole-Mount Cabinet Page 2 © 2018, CommScope, Inc.
  • Page 9 17.1 dB with UPC, 17.3 dB with APC 1 x 64 20.8 dB with UPS, 21 dB with APC 2 x 16 14.5 dB with UPC, 14.7 dB with APC 2 x 32 17.8 dB with UPC, 18 with APC Page 3 © 2018, CommScope, Inc.
  • Page 10 ADCP-96-158 • Rev B • January 2018 20.8 IN (52.8 CM) 18.3 IN (46.5 CM) 39.7 IN (100.9 IN) 26.8 IN (68.2 CM) 42.2 IN (107.2 CM) 23538-A 20.8 IN (52.8 CM) Figure 2. 432 Pole-Mount Cabinet Dimensions Page 4 © 2018, CommScope, Inc.

  • Page 11: Before Starting The Installation

    2. Open the cabinet doors (requires 216B key tool) and check for missing ship-along parts (see installation drawing included with cabinet) or broken parts. If there are damages, contact CommScope (see Section 10) for an RMA (Return Material Authorization) and to reorder if replacement is required. Page 5 © 2018, CommScope, Inc.

  • Page 12: Cabinet Installation Hardware

    • 3/8-inch drill bit to drill holes for 1/2-inch lag screws • Appropriately sized wrenches for through-bolt/threaded-rod nut(s) and lag screws • Conduit for OSP feeder and distribution cables (optional) • Fasteners and hardware to secure conduit to pole (optional) Page 6 © 2018, CommScope, Inc.

  • Page 13: Mounting The Pole-Mount Cabinet On A Utility Pole

    4. Secure the top bracket to the pole using a through-bolt or threaded rod, flat washer(s), locking washer(s), and nut(s). Tighten nut(s) securely. Note: The fasteners specified in step 4 are not included with the cabinet and must be provided by the installer. Page 7 © 2018, CommScope, Inc.
  • Page 14 4) and the 7/32-inch hex key that are provided with the cabinet. BRACKET MOUNTING CAPSCREWS (2) - USE 7/32-INCH KEY TOOL TO TIGHTEN 23539-A BOTTOM BRACKET Figure 4. Securing Bottom Mounting Bracket to the Cabinet Page 8 © 2018, CommScope, Inc.
  • Page 15 Note: The fasteners specified in step 11 are not included with the cabinet and must be provided by the installer. 12. Route the feeder and distribution cables to the network splice enclosure (not provided) and splice to the appropriate network cables per local practice. Page 9 © 2018, CommScope, Inc.
  • Page 16 Note: Remove the lifting eyes to prevent them from being used by service workers as anchor points for safety straps. The lifting eyes are not designed to support the additional weight that could be applied in the event of a fall. Page 10 © 2018, CommScope, Inc.

  • Page 17: Feeder And Distribution Cable Configuration Information

    A diagram of the feeder cable routing is shown in Figure SPLITTER COMPARTMENT FEEDER CABLE FIBERS REAR VIEW OF SWING ASSEMBLY 23542-A SLIDING ADAPTER PACK Figure 7. Feeder Cable Typical Configuration Page 11 © 2018, CommScope, Inc.

  • Page 18: Osp Distribution Cable Configuration

    PANEL 1 PORTS 1-72 PANEL 2 PORTS 73-144 PANEL 3 PORTS 145-216 REAR VIEW OF PANEL 4 SWING ASSEMBLY PORTS 217-288 PANEL 5 PORTS 289-360 PANEL 6 PORTS 361-432 23543-A Figure 8. Distribution Cable Configuration Page 12 © 2018, CommScope, Inc.

  • Page 19: Plug And Play Splitter Module Installation

    SLOT NUMBERS SHOWN SLOT NUMBERS SHOWN FOR REFERENCE ONLY FOR REFERENCE ONLY SPLITTER INSTALLED PLUG AND PLAY DUST CAP ASSEMBLY IN SLOT 1 SPLITTER (INSTALLED IN EMPTY SPLITTER SLOTS) 23547-A Figure 9. Splitter Module Mounting Slots Page 13 © 2018, CommScope, Inc.
  • Page 20 11. Route the splitter output fibers to the storage panel. Refer to Section 6 for the fiber routing and connector pack installation procedure. Page 14 © 2018, CommScope, Inc.
  • Page 21 ADCP-96-158 • Rev B • January 2018 LOCKING LOWER REMOVE PROTECTIVE TAPE AND DUST CAP SPLITTER 23548-A Figure 11. Splitter Installation Page 15 © 2018, CommScope, Inc.

  • Page 22: Routing And Connecting The Splitter Output Fibers

    1. Following installation of a splitter module, locate an open connector pack slot in the storage panel at the bottom of the cabinet. 2. Insert the connector pack into the unused slot in the storage panel. Refer to the FDH 3000 Plug and Play Splitter Installation Guide (CommScopeP-96-087) provided with splitter modules for additional information on installing connector packs in the storage panel.

  • Page 23: Enabling Service To A Subscriber

    5. Connect the splitter output fiber connector to the subscriber port. 6. Use the radius limiters on the right side of the cabinet to store any excess fiber slack. Refer Figure 12 for the routing guidelines Page 17 © 2018, CommScope, Inc.

  • Page 24: Pass-Through Routing Procedure

    3. Remove the feeder cable connector from the front side of the bulkhead adapter and clean the connector as specified in the Optical Fiber Connector Wet and Dry Cleaning Instructions (CommScopeP-90-159) or by locally approved procedures. Page 18 © 2018, CommScope, Inc.
  • Page 25 1.5 inches (3.81 cm). PASS-THROUGH ROUTING FOR PATCH CORDS 23550-A SLIDING ADAPTER PACK Figure 14. Routing Pass-Through Patch Cord From Sliding Adapter Pack Page 19 © 2018, CommScope, Inc.

  • Page 26: Splitter Compartment Pass-Through Routing Procedure

    Section 6.2 to route the pass-through patch cord to the distribution panel and to connect the patch cord connector to the appropriate optical port. 12. Close swing frame when pass-through routing procedure is complete. Page 20 © 2018, CommScope, Inc.
  • Page 27 ADCP-96-158 • Rev B • January 2018 ORIENT CONNECTOR SO KEY IS ON TOP 21365-B Figure 15. Installing Patch Cord Connector in Dust Cap Assembly DUST CAP AND CONNECTOR ASSEMBLY 23551-A Figure 16. Inserting Dust Cap Assembly Page 21 © 2018, CommScope, Inc.

  • Page 28: Feeder Cable Fiber Re-Routing Procedure

    Figure 18 shows the section of the fiber that will need to be released for re-routing. When necessary, backfeed the fiber to free the connector from the remaining fibers. Page 22 © 2018, CommScope, Inc.
  • Page 29 10. Route the feeder fiber over the two supports located at the top of the swing-out assembly. 11. Store the excess slack on the radius limiters located on the left side of the swing-out assembly. 12. Close the swing frame when the feeder re-routing procedure is completed. Page 23 © 2018, CommScope, Inc.
  • Page 30 TOP CABLE RINGS PASS CONNECTOR THROUGH THIS OPENING TAKE UP SLACK ON RADIUS LIMITERS 23554-A Figure 19. Re-Routing the Feeder Cable Fiber CONNECTOR KEYWAY REAR VIEW OF 21358-D SPLITTER COMPARTMENT Figure 20. Feeder Cable Connector Page 24 © 2018, CommScope, Inc.

  • Page 31: Maintenance And Repair Procedures

    FROM THE ADAPTER, INSTALL A DUST CAP ON THE CONNECTOR TO KEEP THE ENDFACE CLEAN AND TO PREVENT DAMAGE METAL TAB (TOP AND BOTTOM) SPLITTER 21366-B ADAPTER CONNECTOR Figure 21. Adapter Removal and Replacement Page 25 © 2018, CommScope, Inc.

  • Page 32: Splitter Compartment Adapter Replacement

    4. Turn the thumb screw on the top of the broken adapter assembly clockwise until the adapter assembly detaches from the top of the splitter compartment. 5. Discard the damaged adapter assembly. Page 26 © 2018, CommScope, Inc.

  • Page 33: Replacing A Damaged Fiber Or Connector

    This procedure requires removing and disassembling the splitter to insert a splice chip and to perform the splice. A kit is available from CommScope. Refer to CommScopeP-96-034 for the procedure.

  • Page 34: Splitter Output Fiber Connector Replacement

    3. Use a 3/8-inch nut driver to remove the locking nuts that secure the hinges to the door. Save nuts for reuse. Note: Support the door as the last nuts are removed to prevent the door from falling. 4. Carefully lift the door away from the cabinet. Page 28 © 2018, CommScope, Inc.
  • Page 35 ADCP-96-158 • Rev B • January 2018 GROUNDING GROUNDING STRAP LUG STRAP LUG DOOR DOOR HINGES HINGES 23552-A DOOR DOOR BRACKET BRACKET SLIDE SLIDE Figure 23. Door Replacement 22293-A DOOR FLAT LINKAGE WASHERS LOCK NUTS Figure 24. Door Linkage Hardware Page 29 © 2018, CommScope, Inc.

  • Page 36: Customer Information And Assistance

    2. 9. Repeat process for the left door. 10. Close doors and check for proper operation. 10 CUSTOMER INFORMATION AND ASSISTANCE • To find out more about CommScope products, visit us on the web at ® www.commscope.com •...
